B1.2 - Engine Compartment (Right)



Arrangement and assignment of the wiring and plug connectors, engine compartment (right)

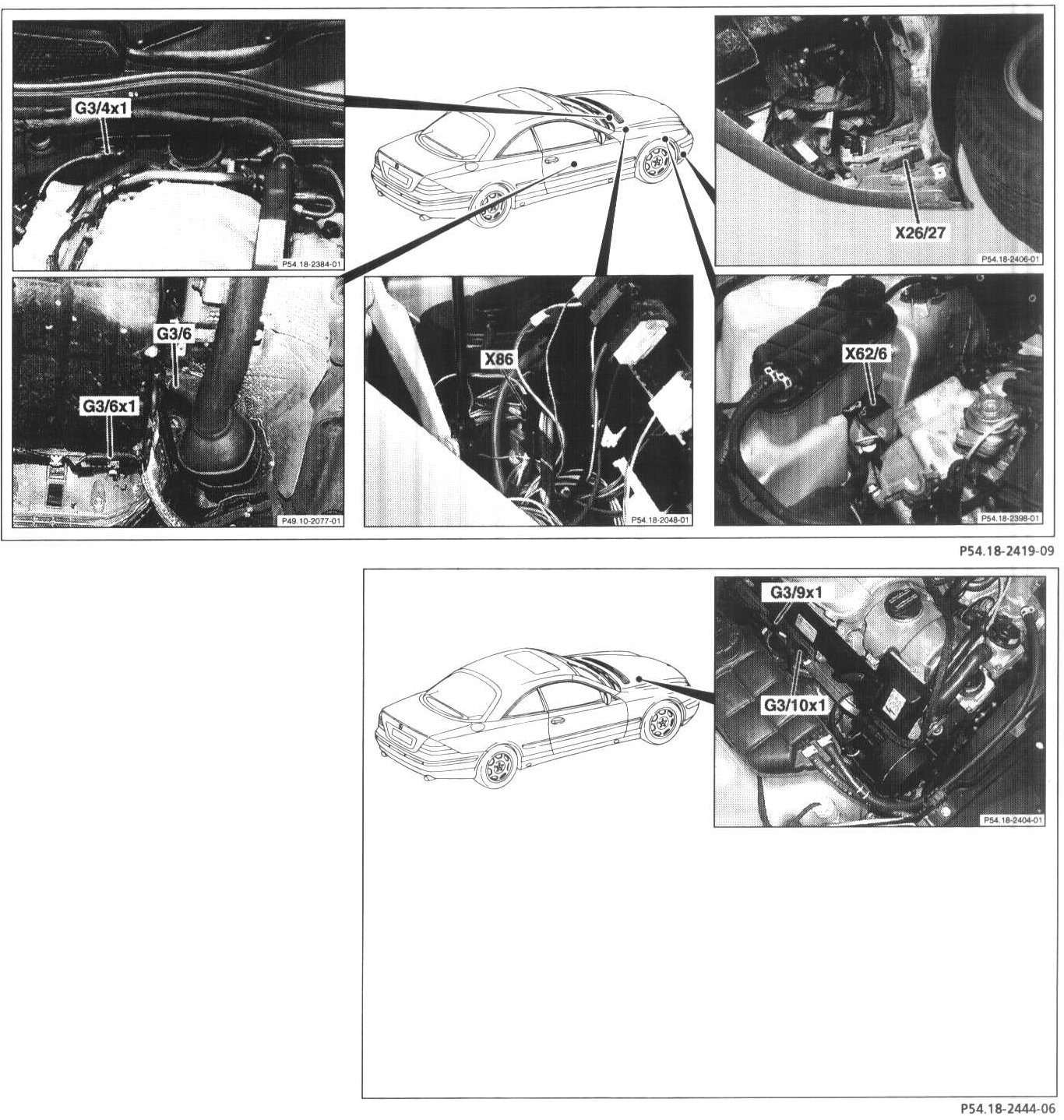

Arrangement





Assignment
