B1.5 - Interior Compartment (Right)



Arrangement and assignment of the wiring and plug connectors, interior compartment (right)

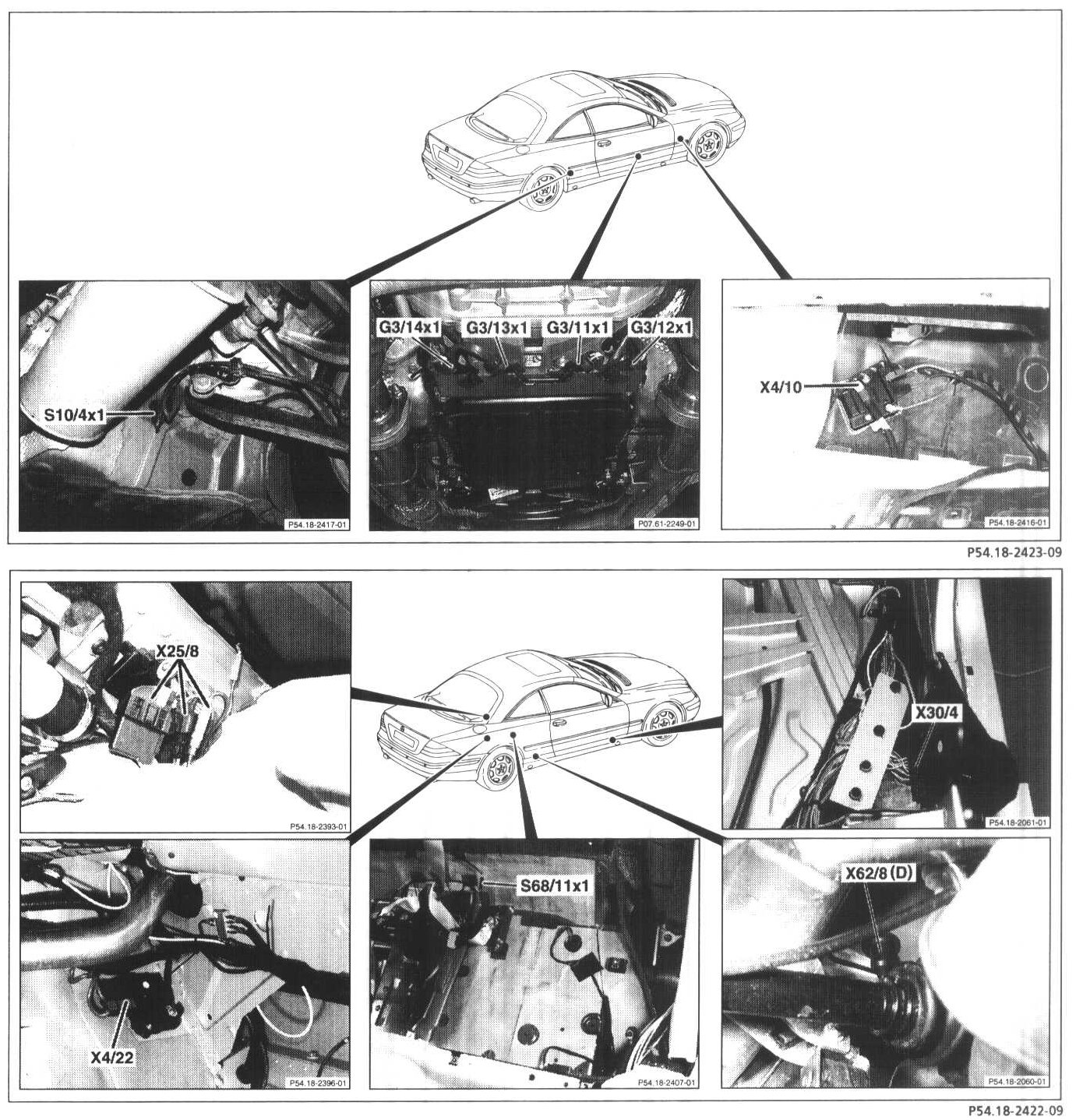

Arrangement

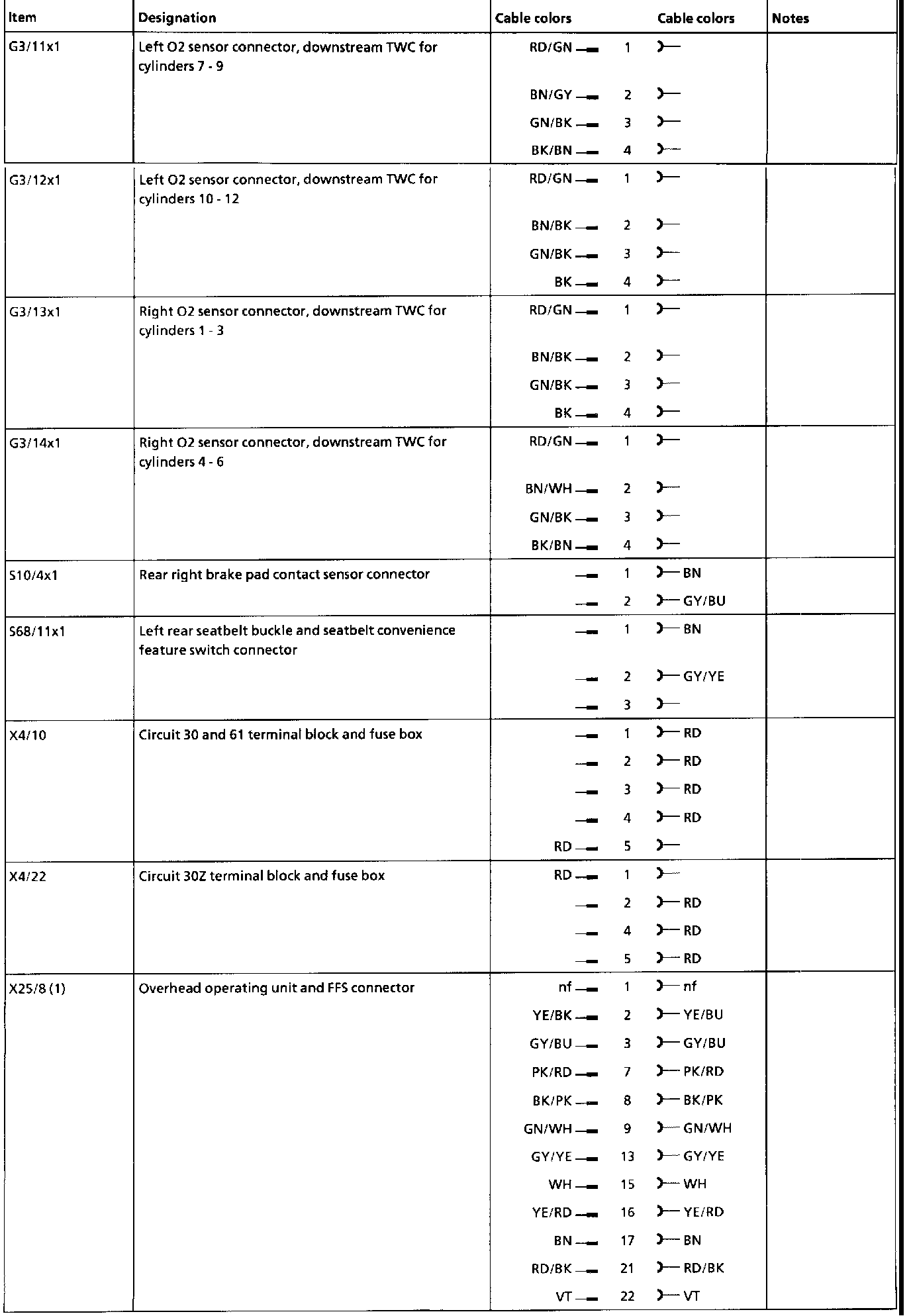

Assignment

G3/11x1 - X25/8(1):





X25/8(2) - X62/8(F):
