B1.6 - Trunk (Right)
B1.6 - Trunk (Right)
Arrangement and assignment of the wiring and plug connectors, trunk (right)
Arrangement

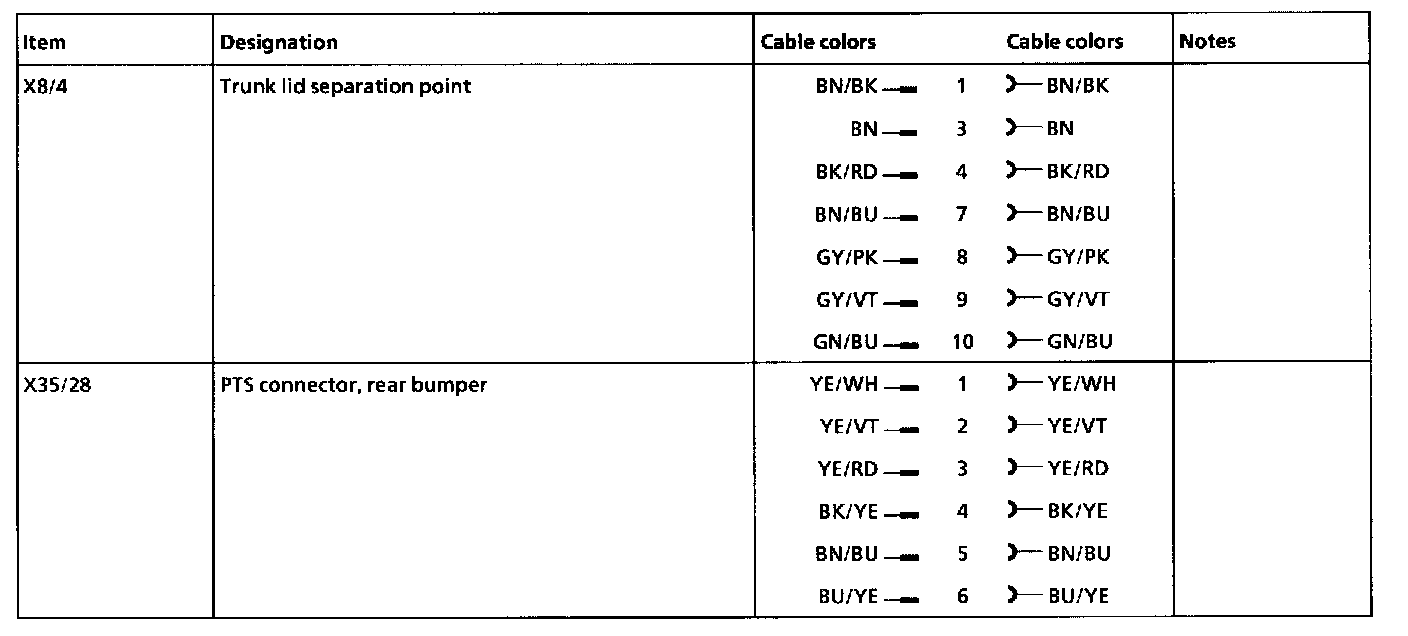

Assignment
