System Diagram
System Diagram

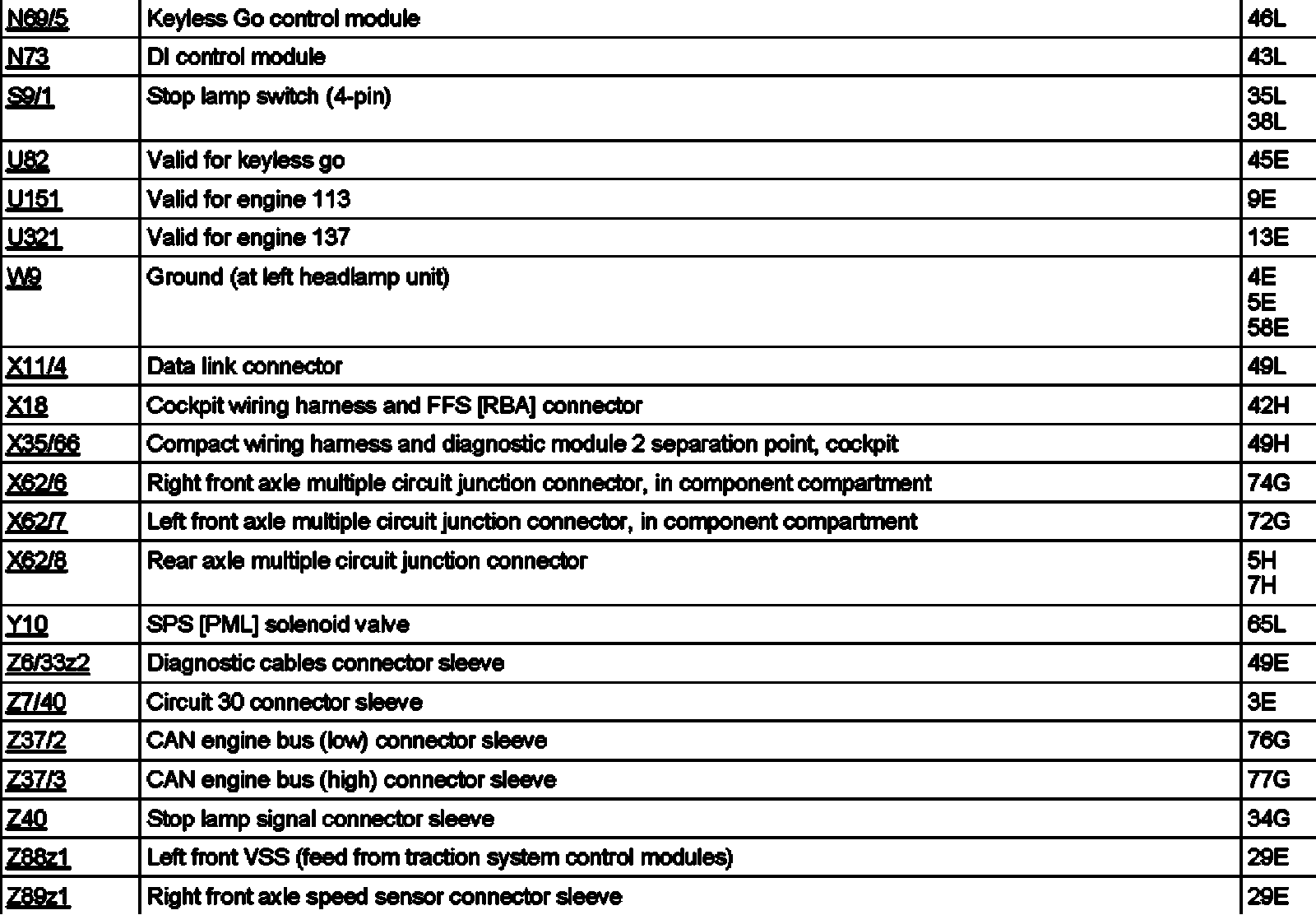

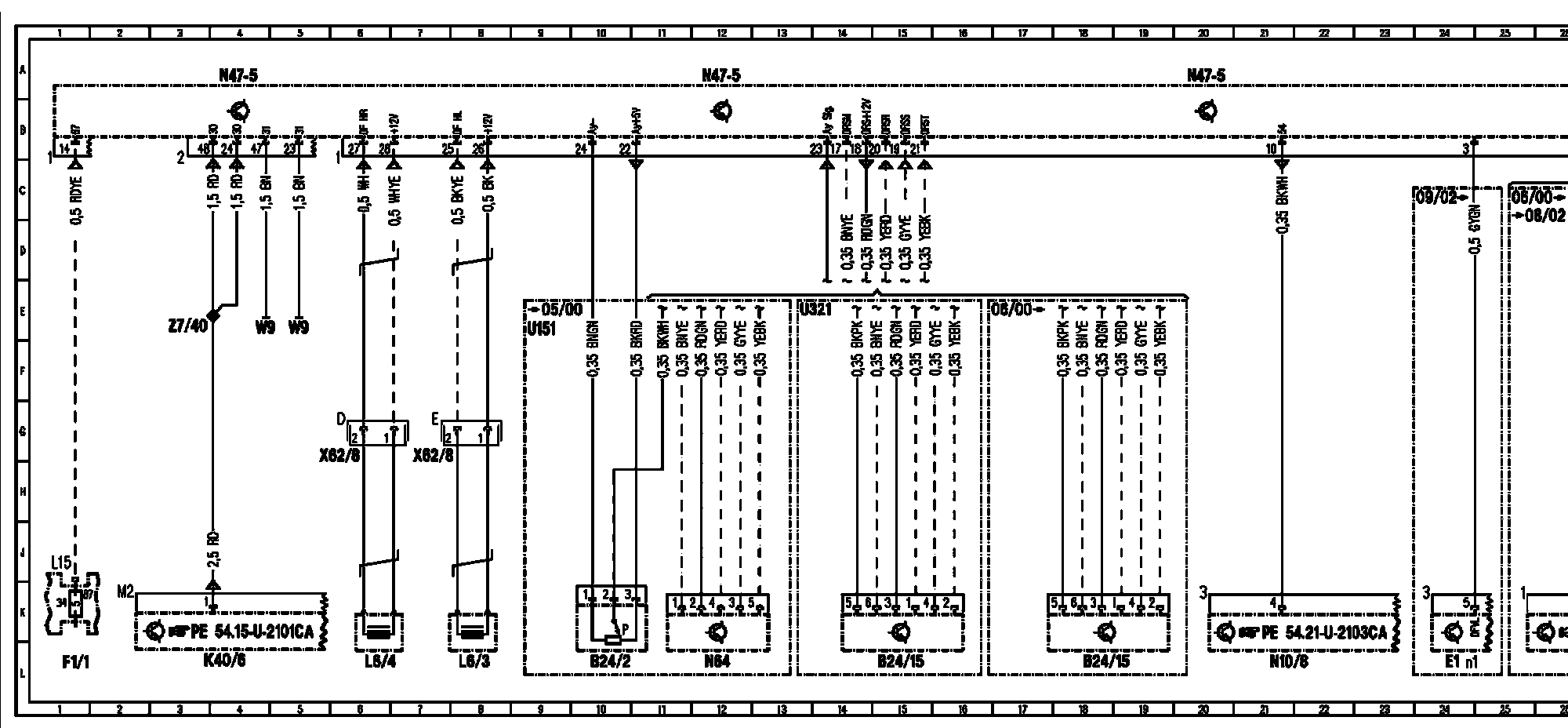

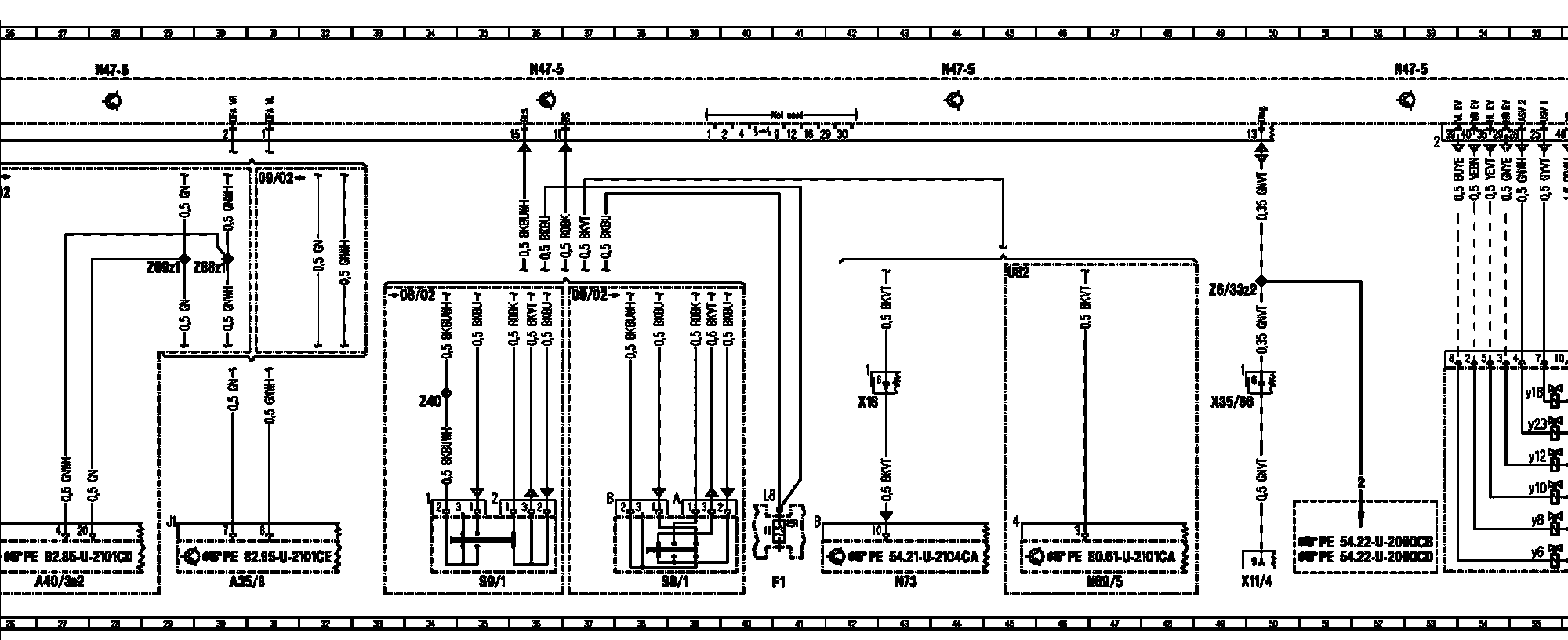

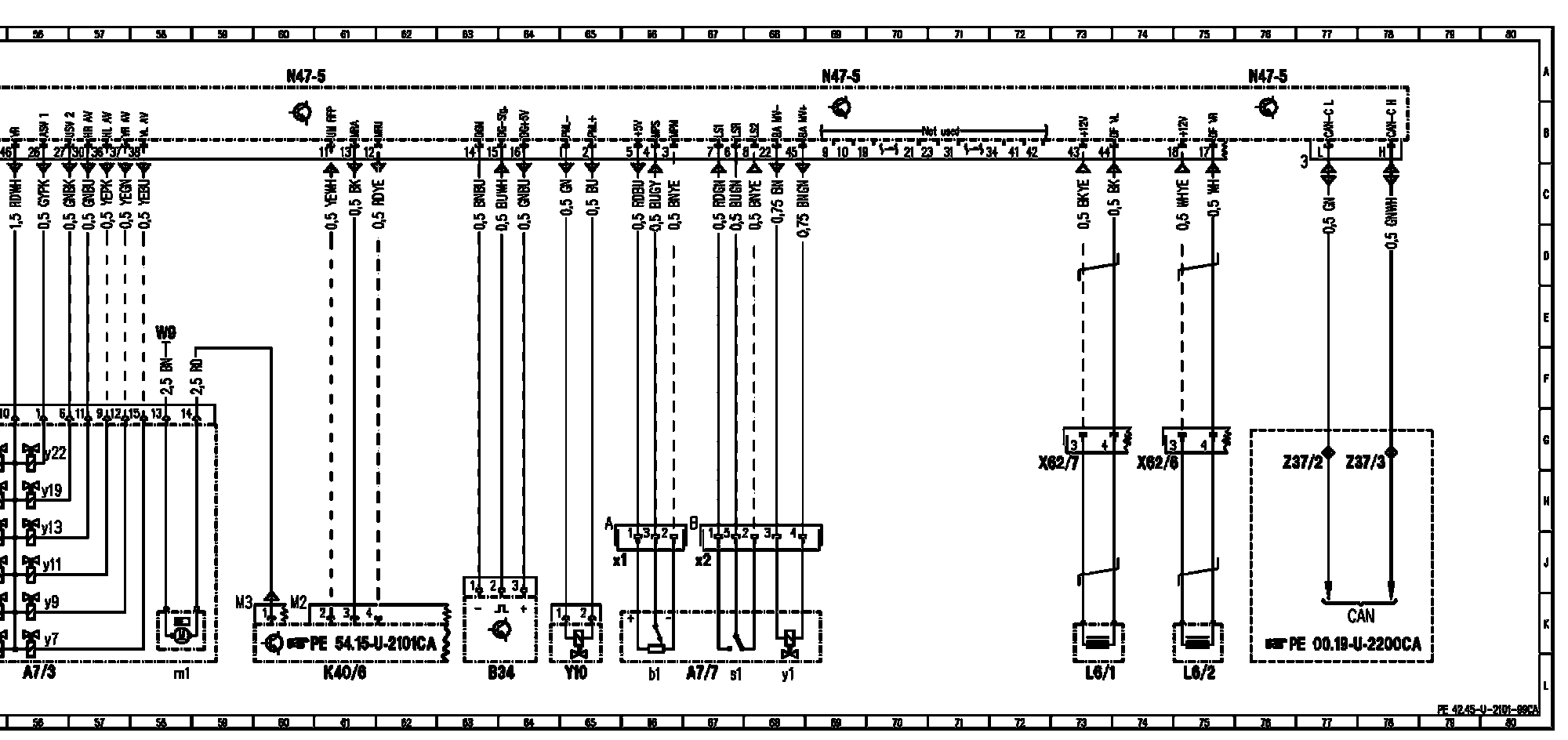

PE42.45-U-2101CA Electronic Stability Program (ESP) Control Module
Model 215 with CODE (472) Electronic Stability Program (ESP)
Control Module N47-5
