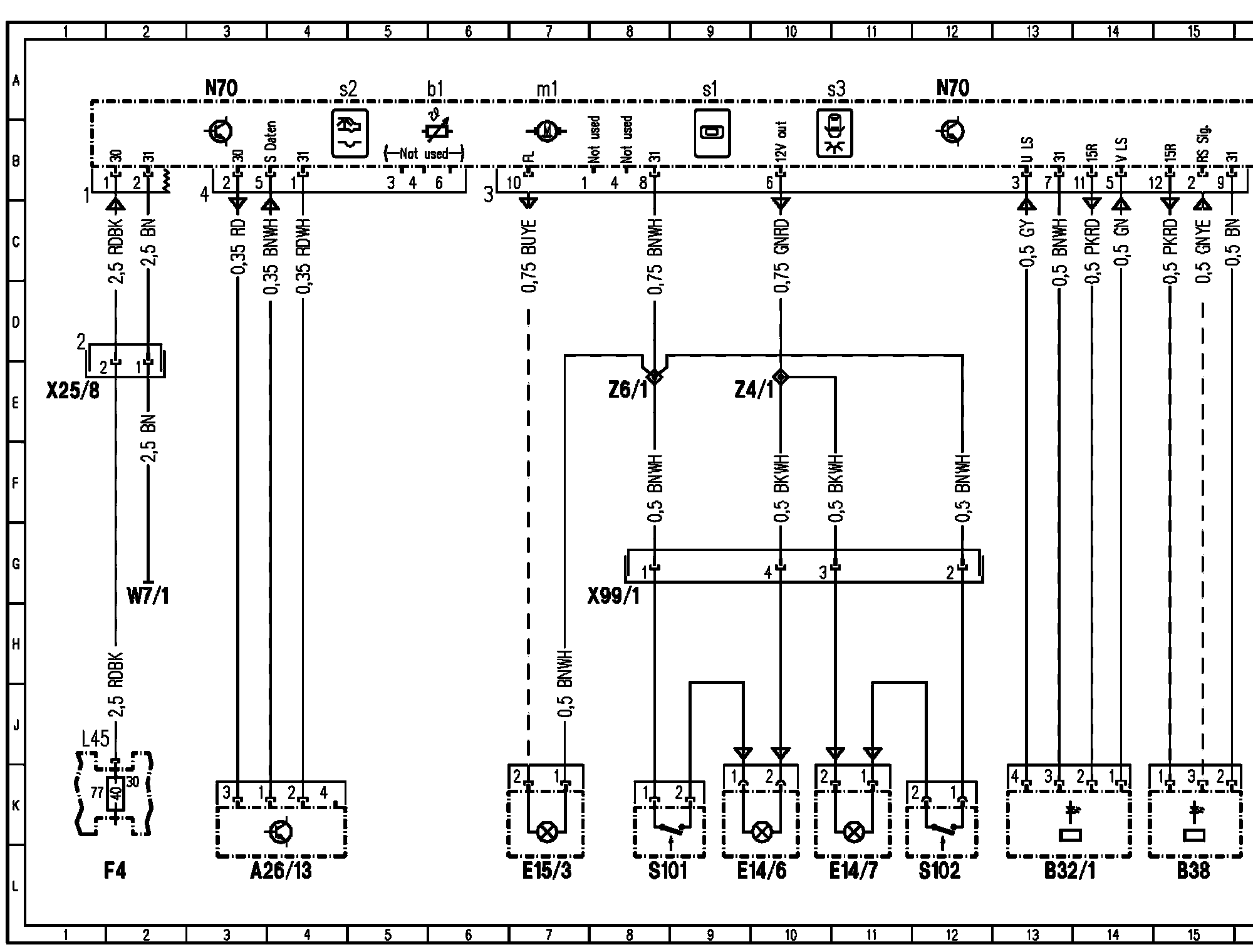

PE54.21-U-2107CA Overhead Control Panel (OCP) Control Module



PE54.21-U-2107CA Overhead Control Panel (OCP) Control Module
Model 215 up to 08/31/02

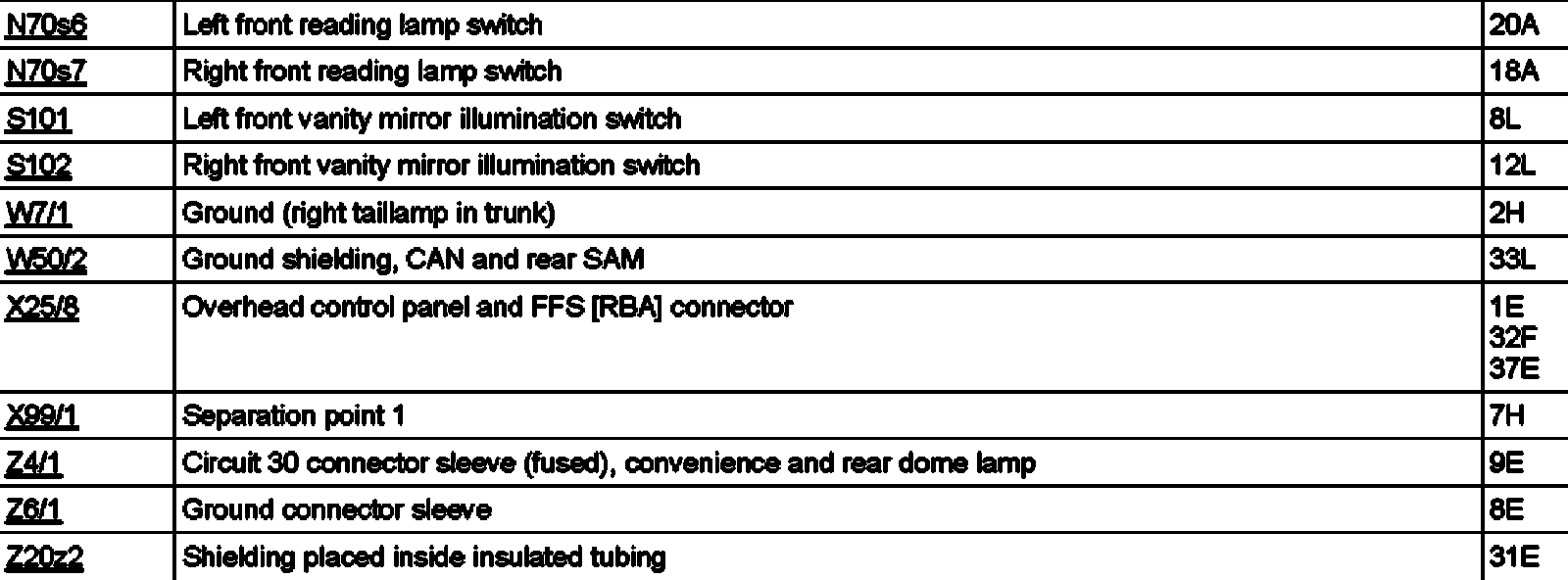

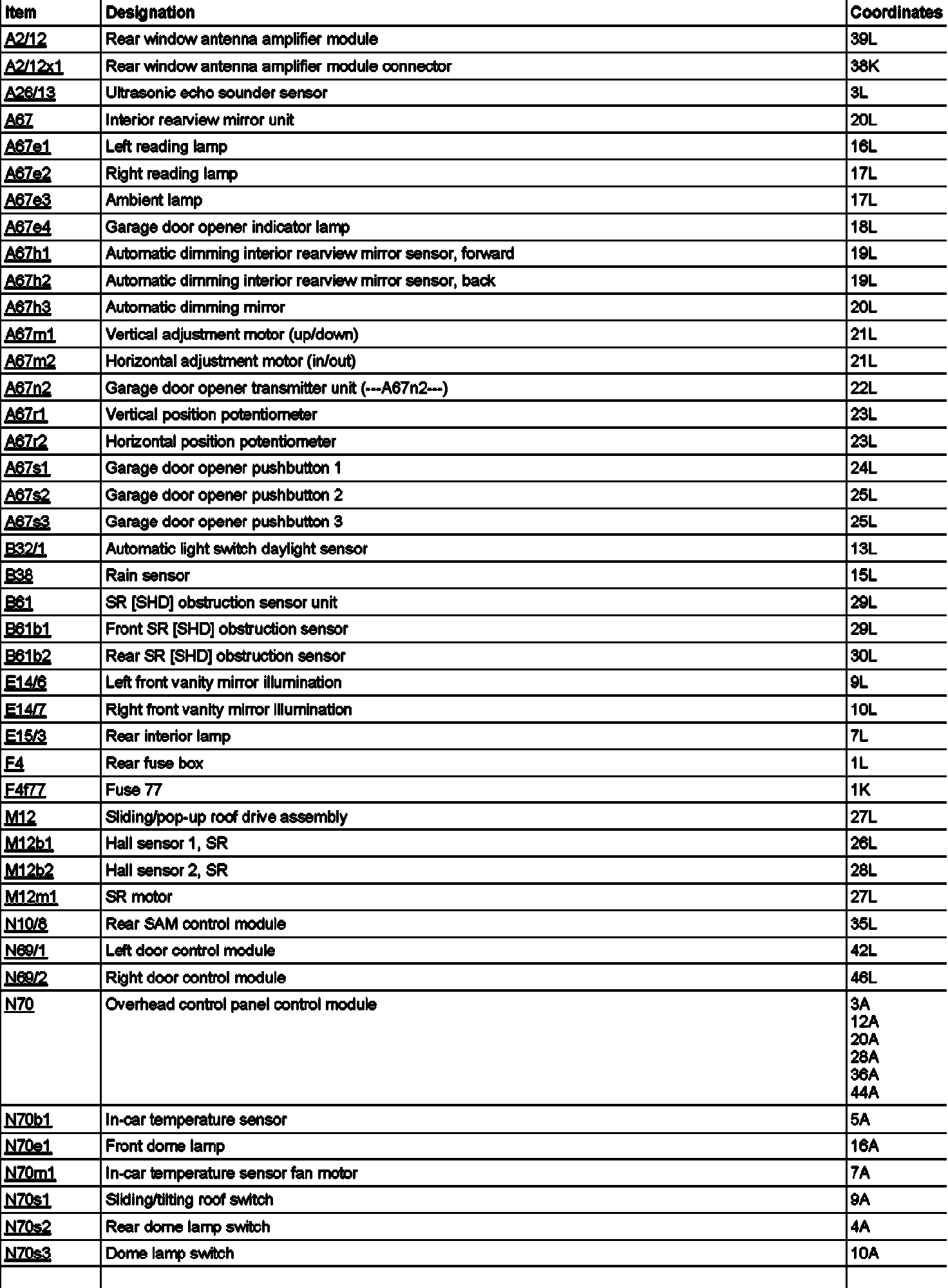

Control Module N70
