Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
CL 500 (215.375) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Phone
>>

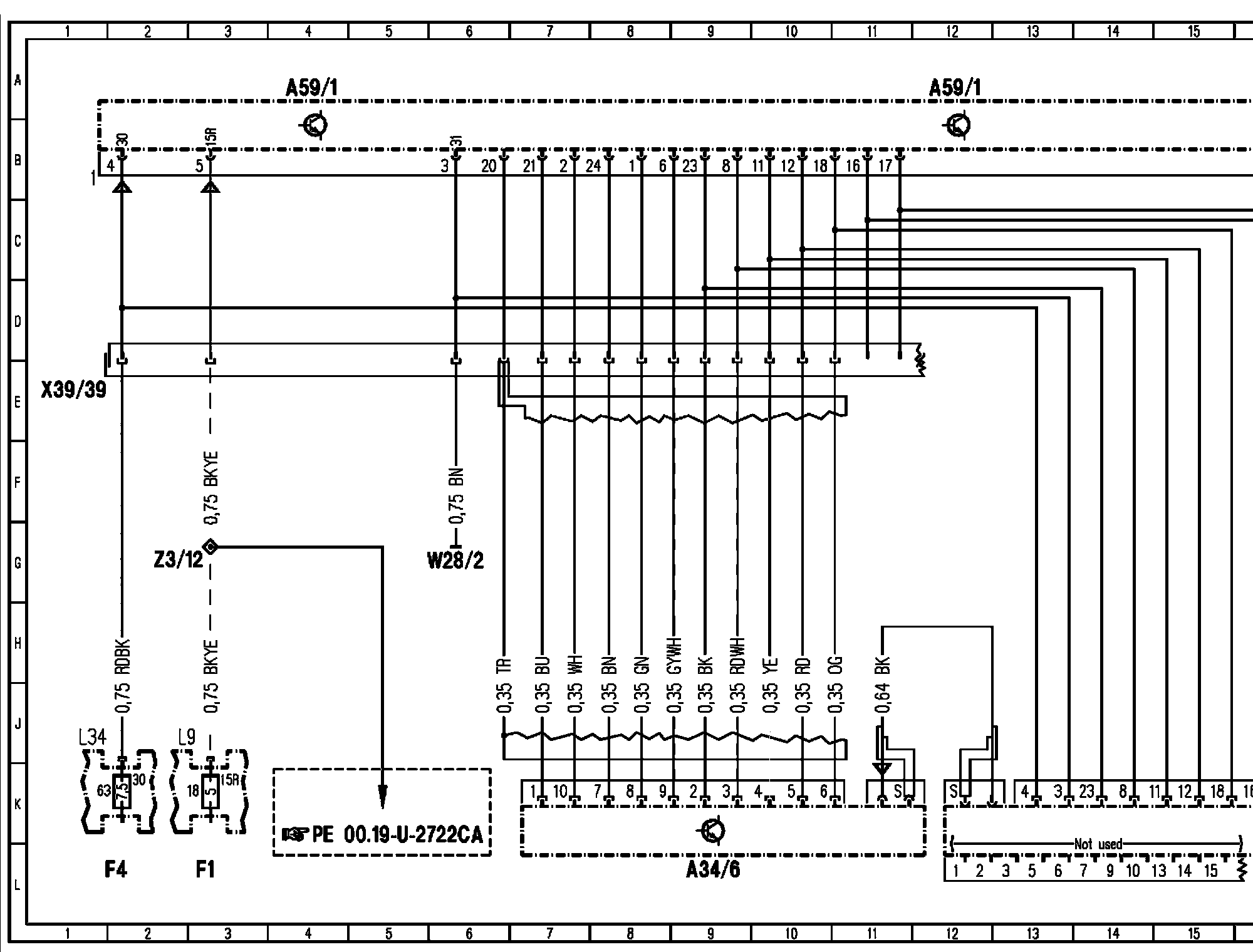

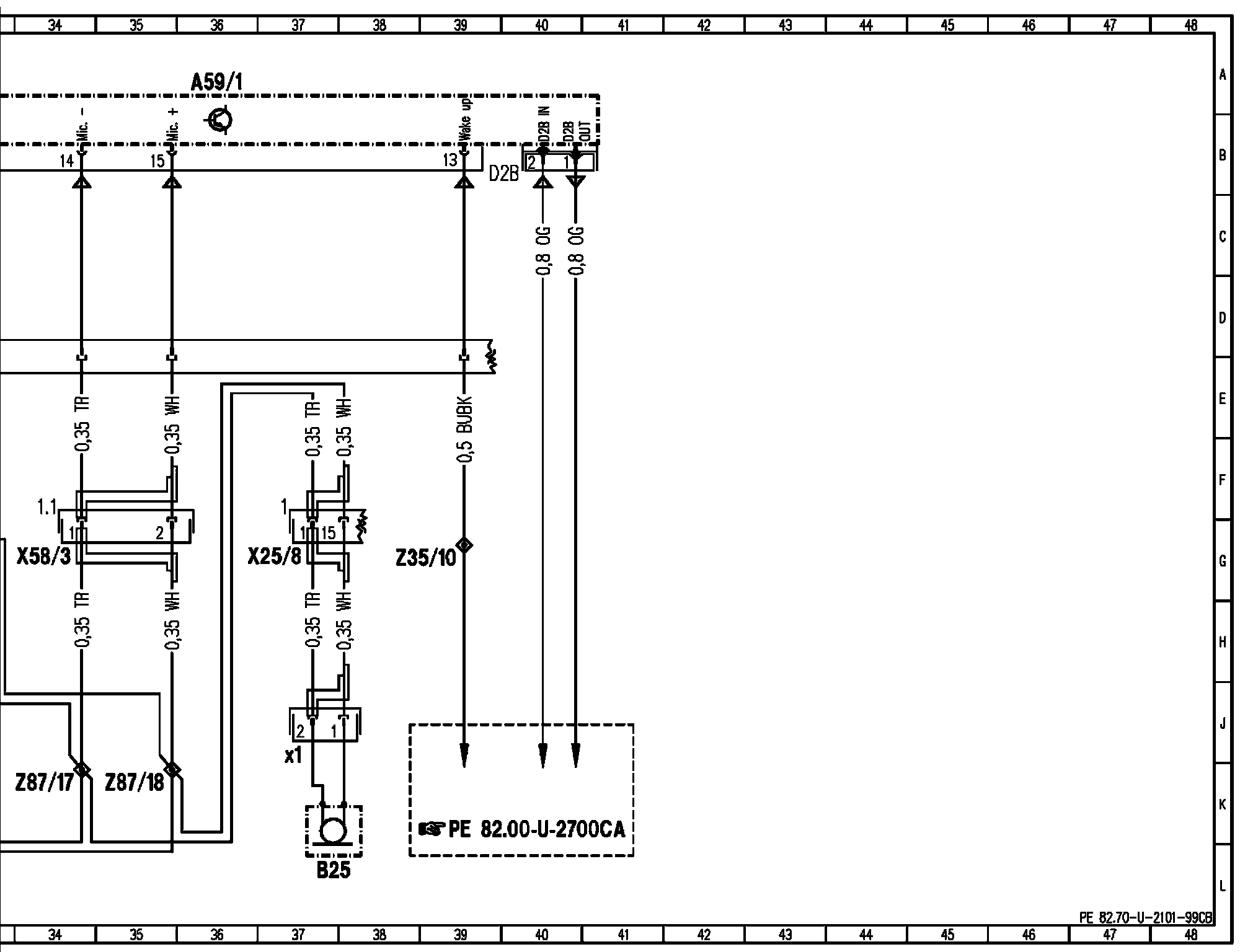

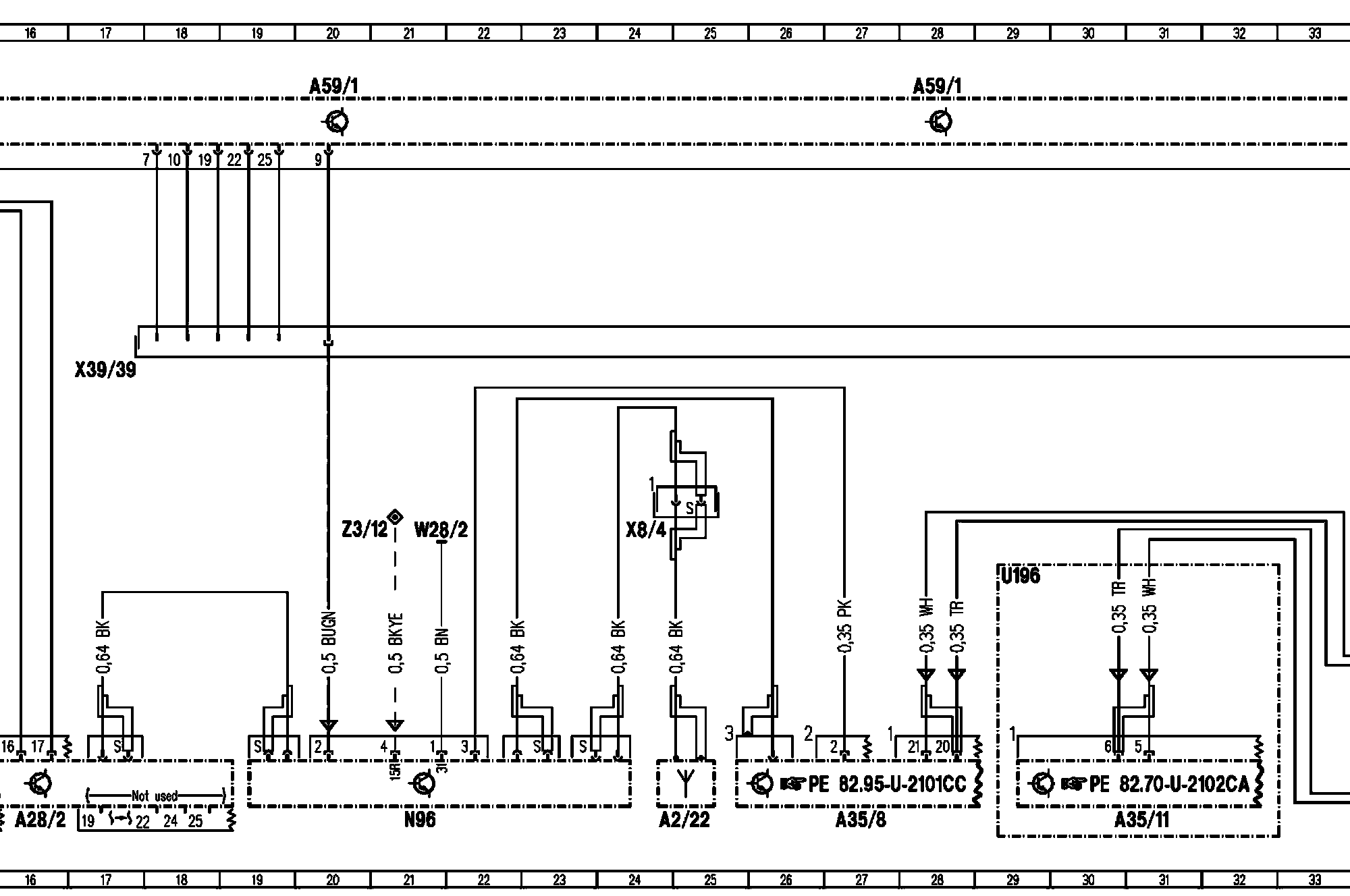

PE82.70-U-2101CB Cellular Telephone (CTEL) Control Module
PE82.70-U-2101CB Cellular Telephone (CTEL) Control Module
PE82.70-U-2101CB Cellular Telephone (CTEL) Control Module
Model 215 up to 05/31/00 with CODE (317) D-net portable CTEL (D2B)
Control Module A59/1
