Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
CL 500 (215.375) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Module
>>

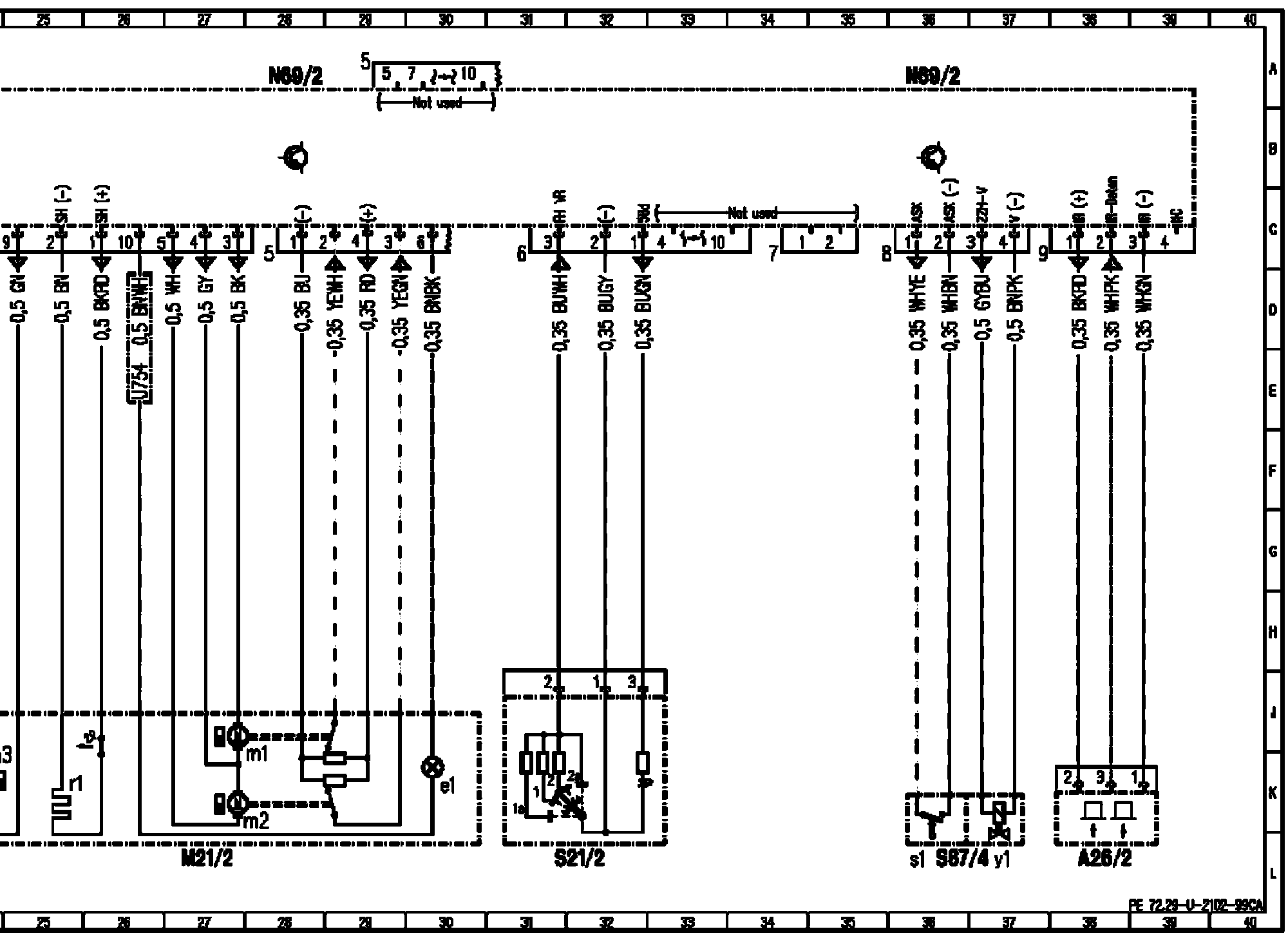

PE72.29-U-2102CA Door Control Module (DCM) Front Right
PE72.29-U-2102CA Door Control Module (DCM) Front Right
PE72.29-U-2102CA Door Control Module (DCM) Front Right
Control Module N69/2
