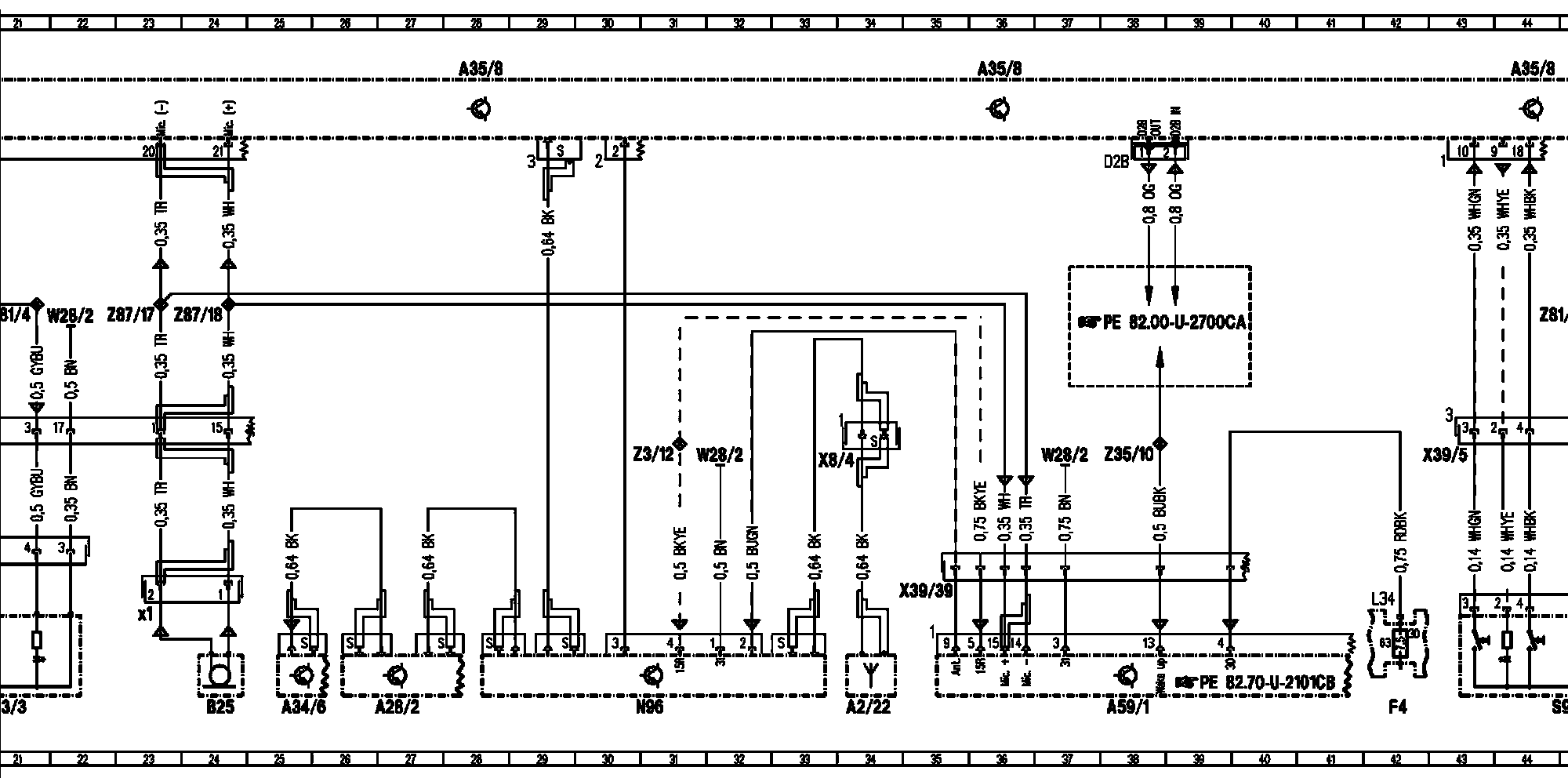

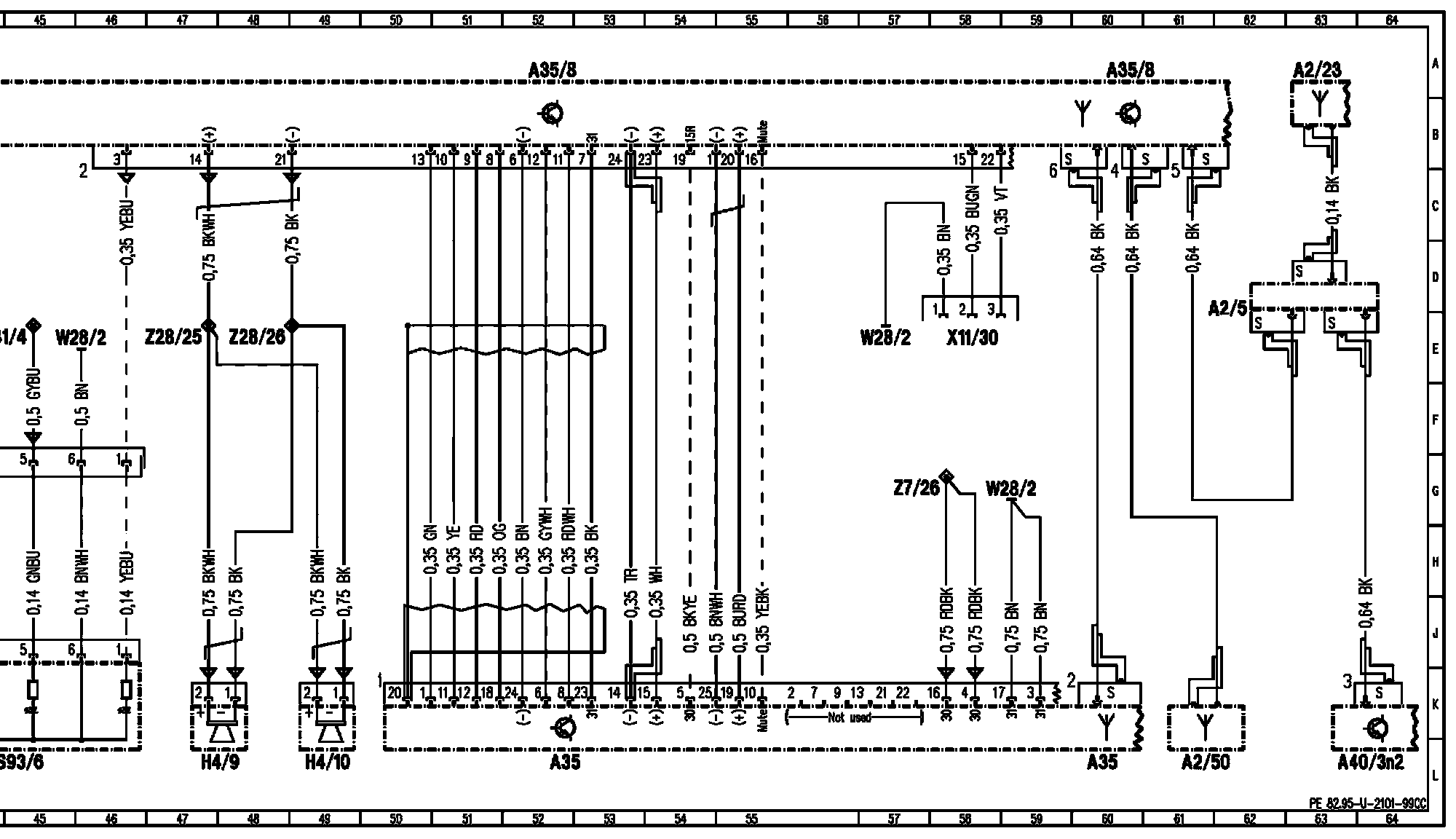

PE82.95-U-2101CC TELE AID System Control Module



PE82.95-U-2101CC TELE AID System Control Module
Model 215 up to 05/31/00 with CODE (348) EMERGENCY CALL system
Control Module A35/8
