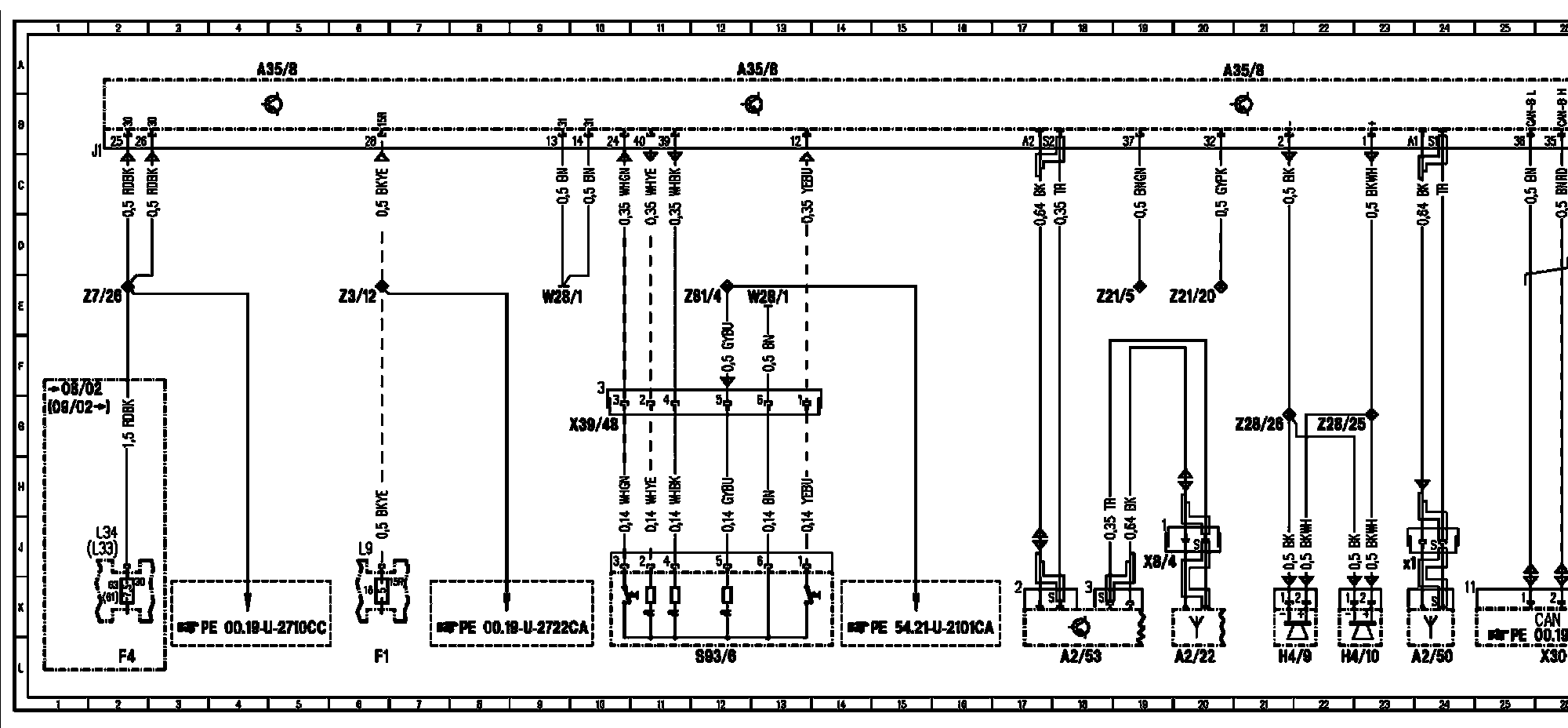

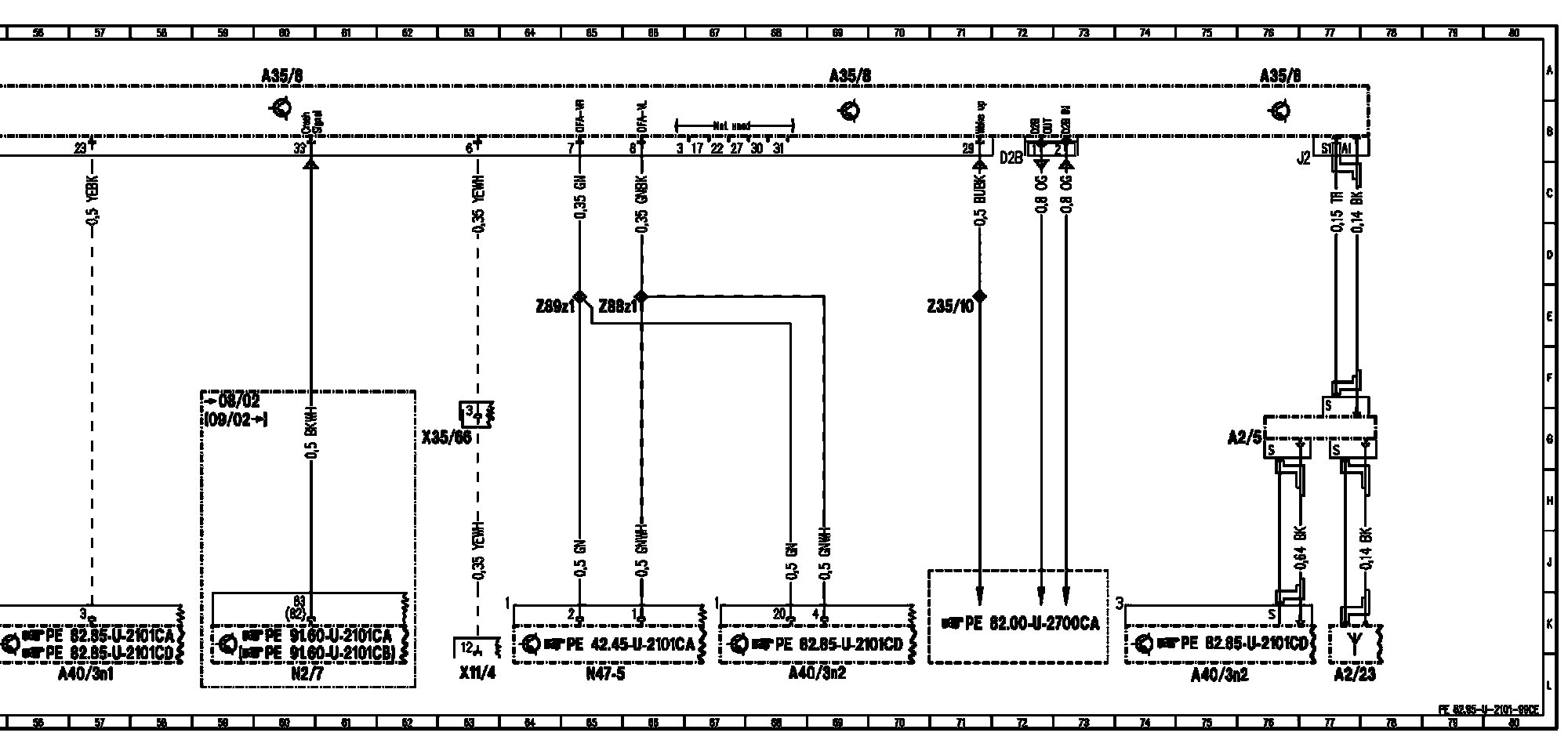

PE82.95-U-2101CE TELE AID System Control Module



PE82.95-U-2101CE TELE AID System Control Module
Model 215 as of 06/01/00 up to 08/31/03 with CODE (348) EMERGENCY CALL system

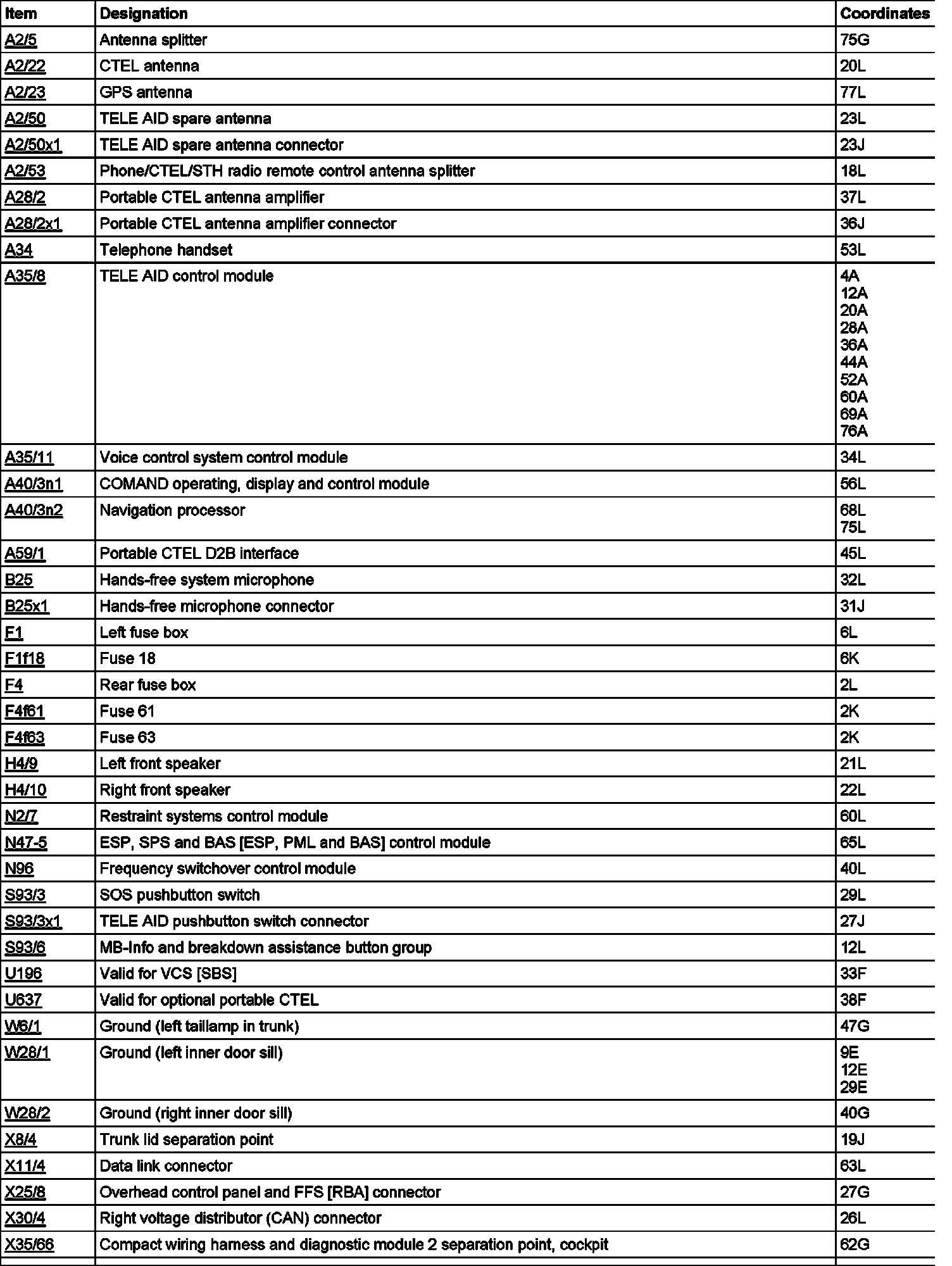

Control Module A35/8
