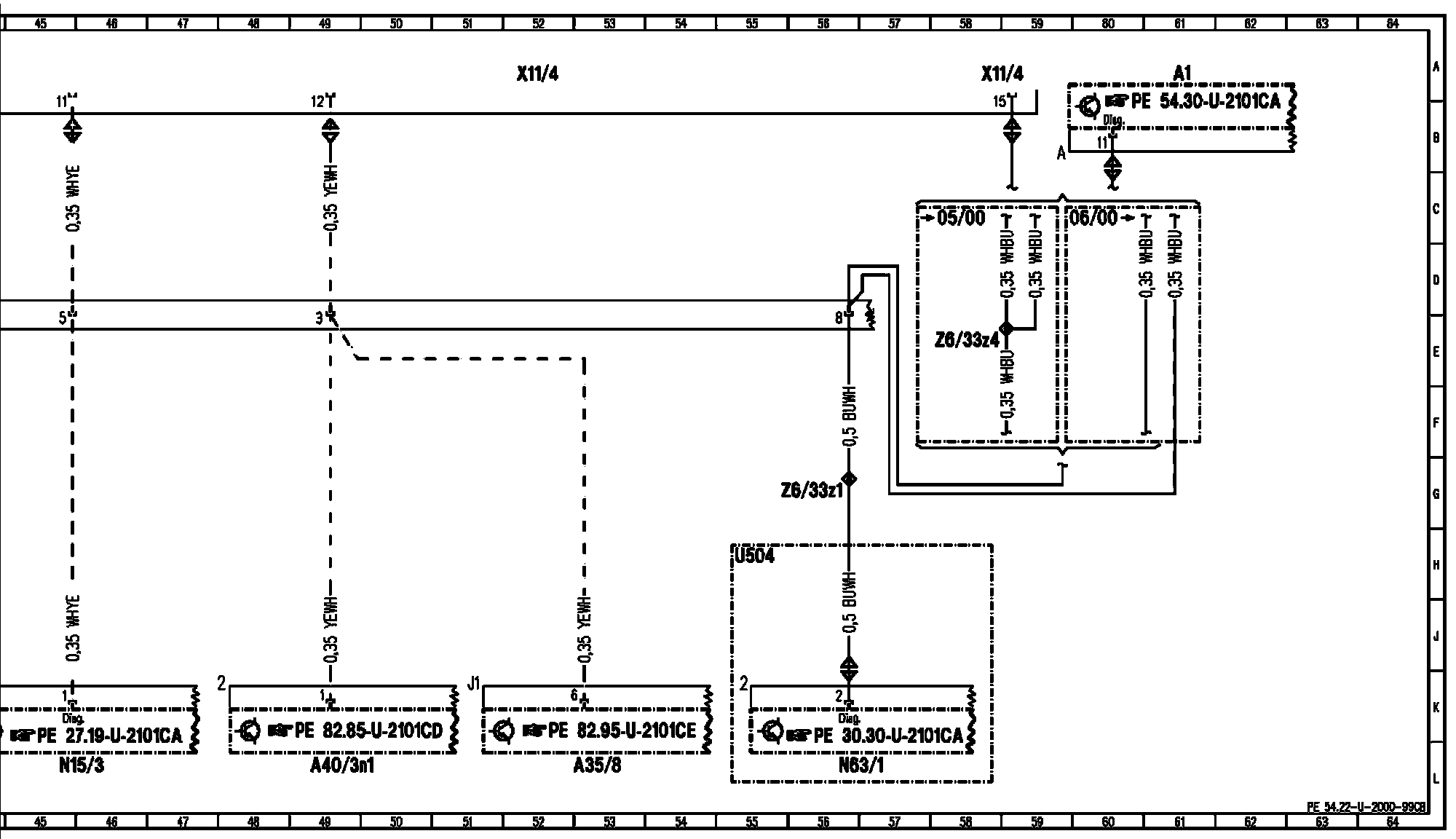

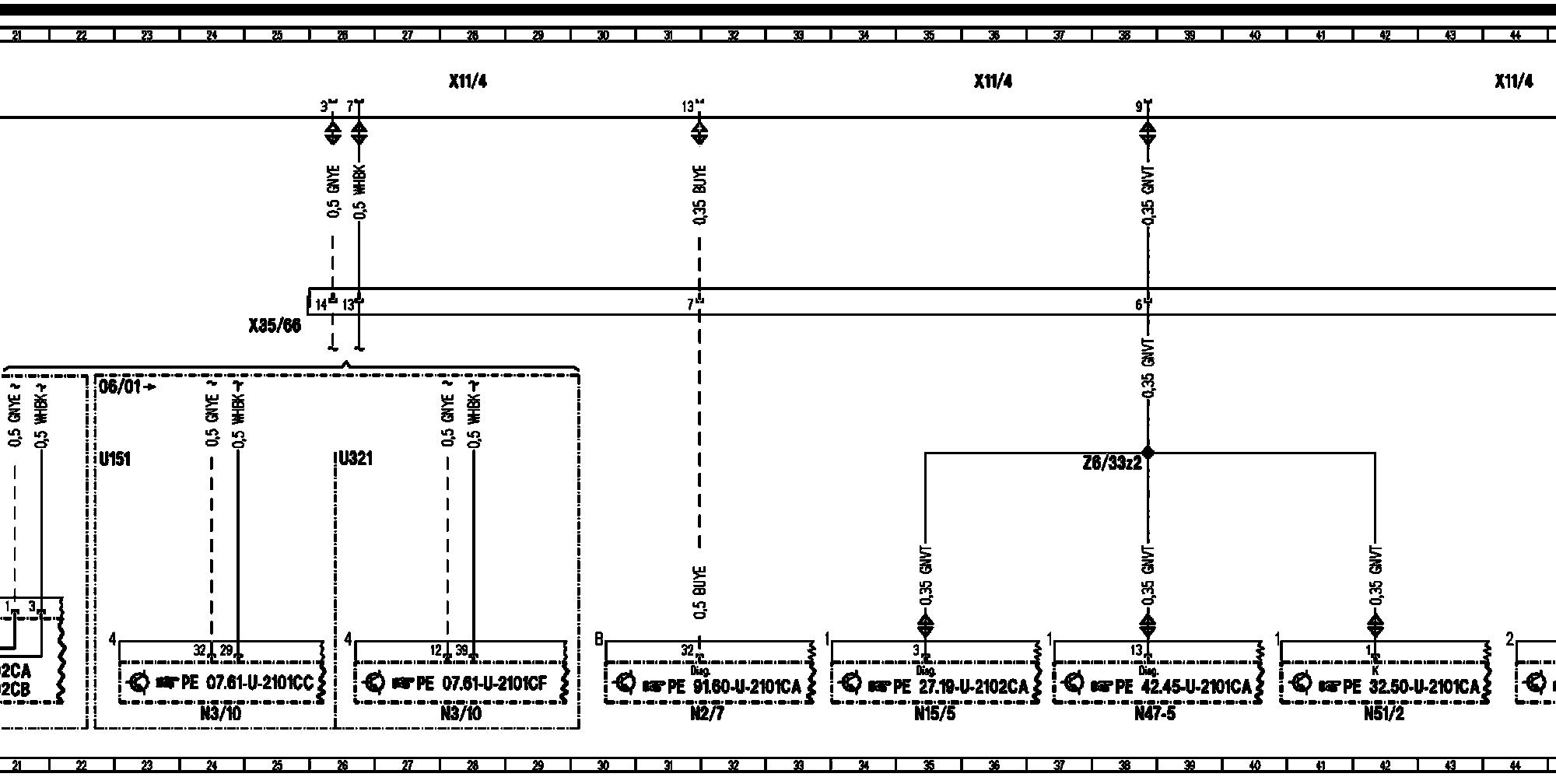

PE54.22-U-2000CB Data Link Connector/Diagnostic Socket
Model 215 up to 05/31/01
Data link connector (X11/4)
