Home >> Mercedes Benz >> 2000 >> CL 500 (215.375) V8-5.0L (113.960) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> CD Changer

CD Changer

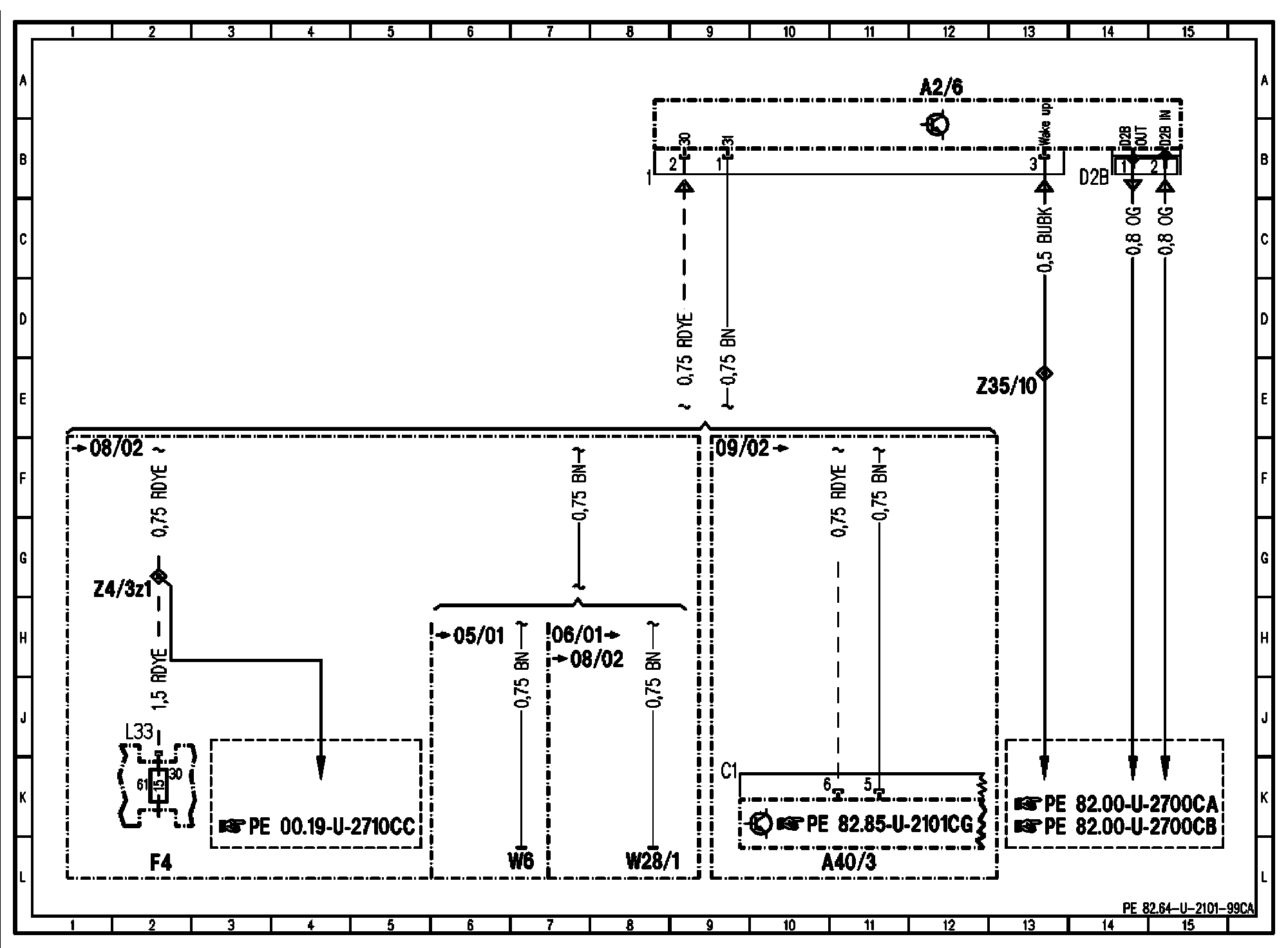

PE82.64-U-2101CA CD Changer (CDC) Control Module
Model 215 up to 08/31/03 with CODE (819) 6-disk CD changer
Control Module A2/6
