System Diagram
System Diagram

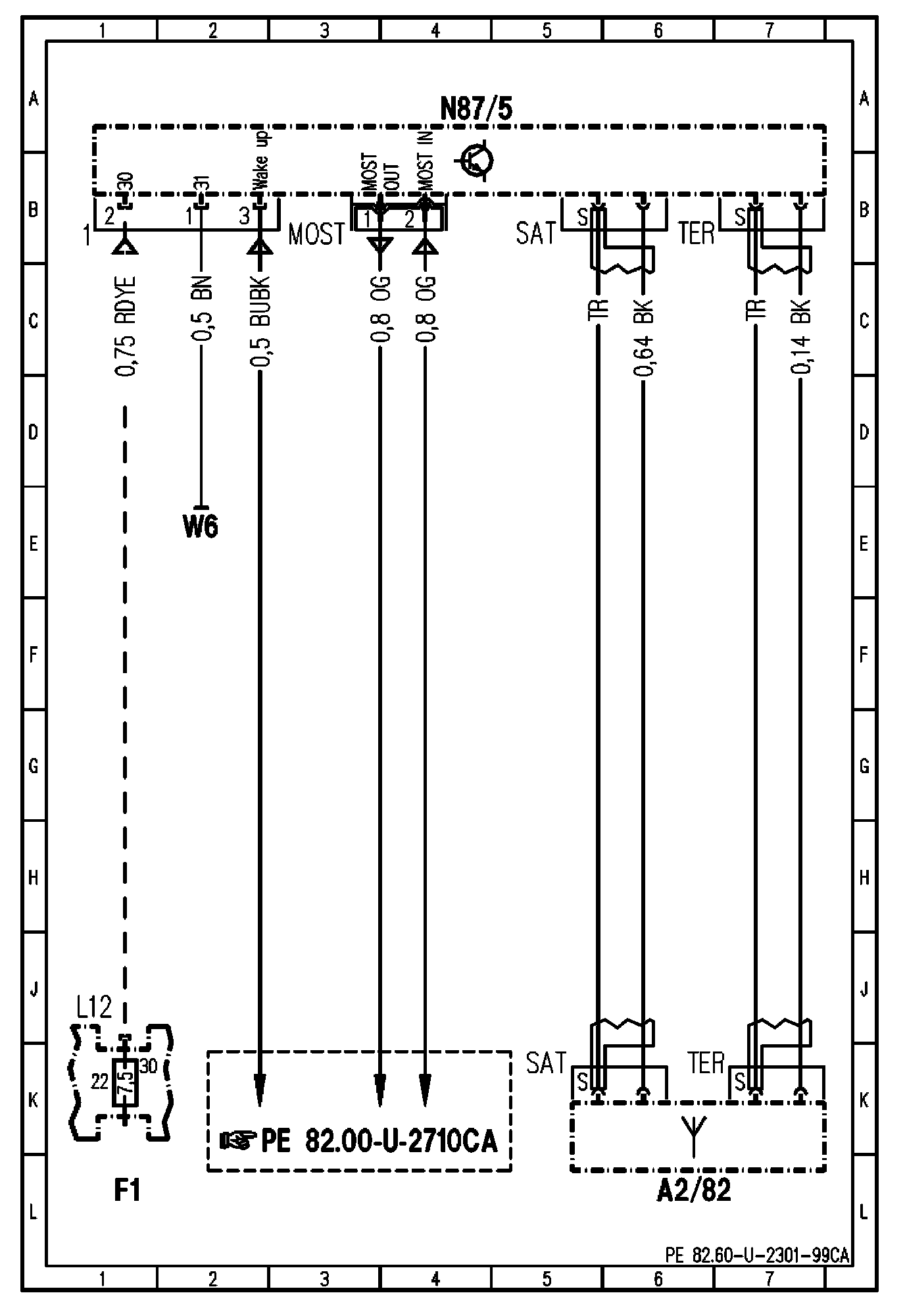

PE82.60-U-2301CA Satellite Digital Audio Radio (SDAR) System Control Unit
Control Module N87/5
