Steering Column Control Module

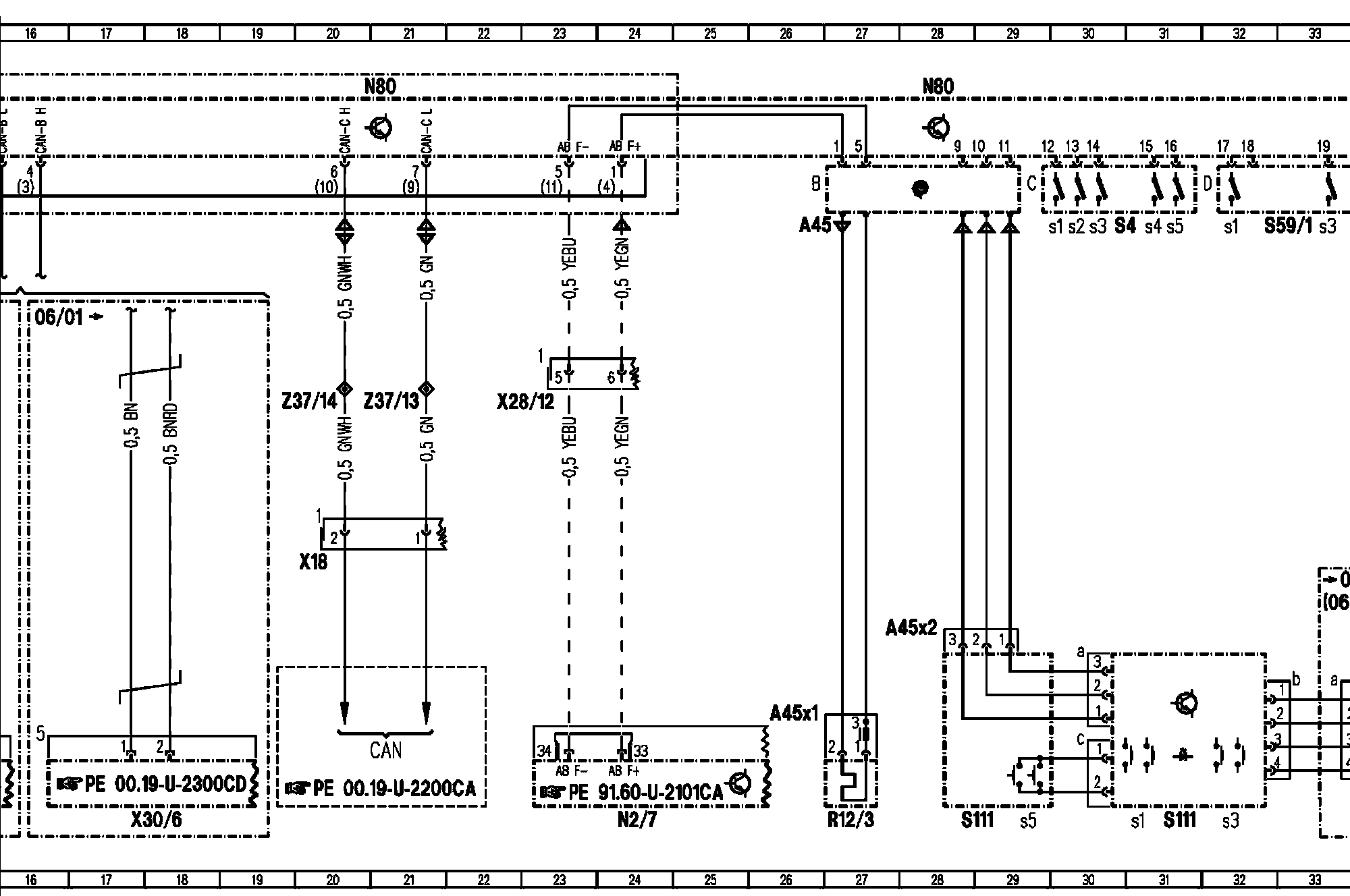

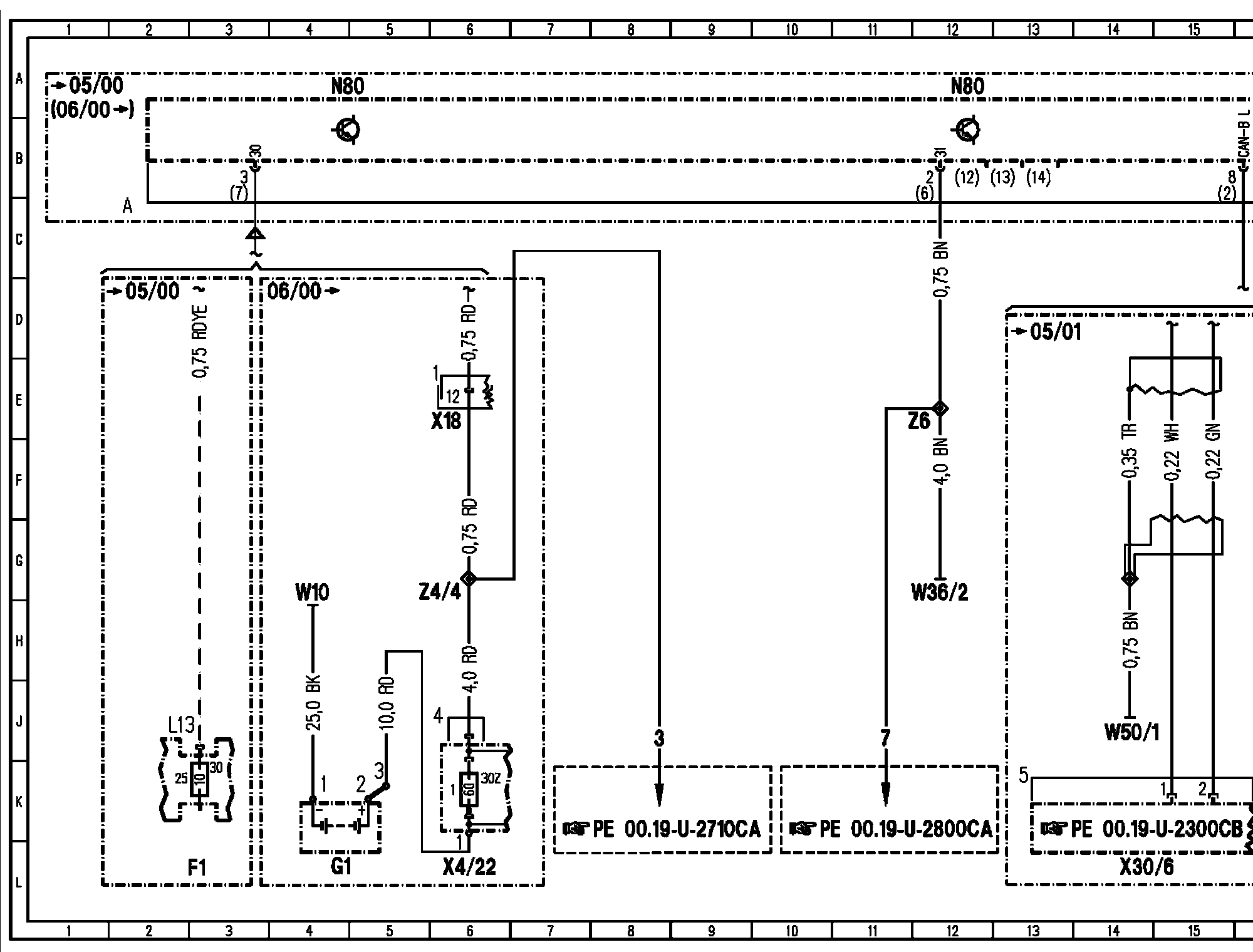

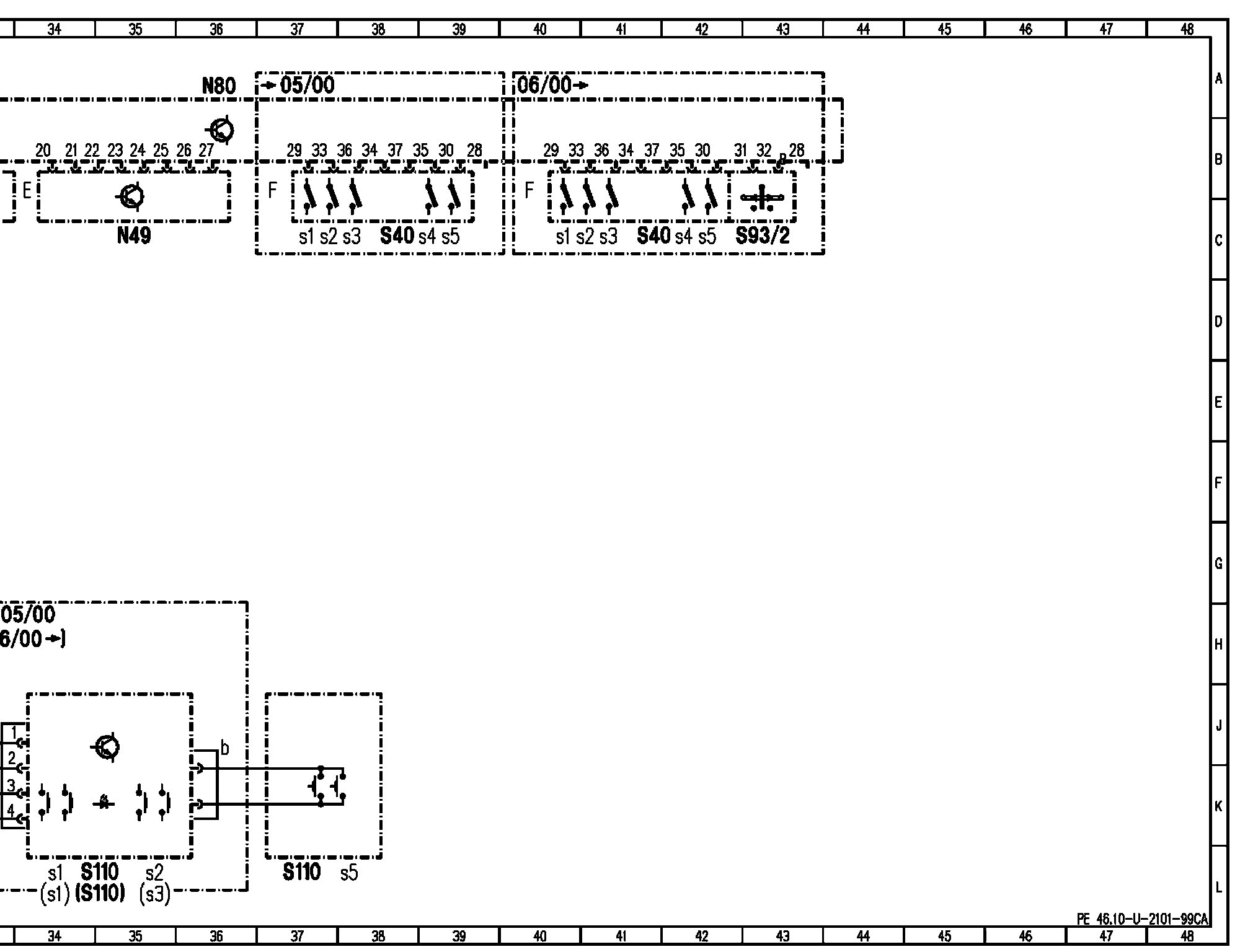

PE46.10-U-2101CA Steering Column Module Control Module
Model 215 up to 08/31/02
Control Module N80
