Home >> Mercedes Benz >> 2000 >> CL 500 (215.375) V8-5.0L (113.960) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Voice Activation System >> PE82.70-U-2102CA Voice Recognition System (VRS) Control Module

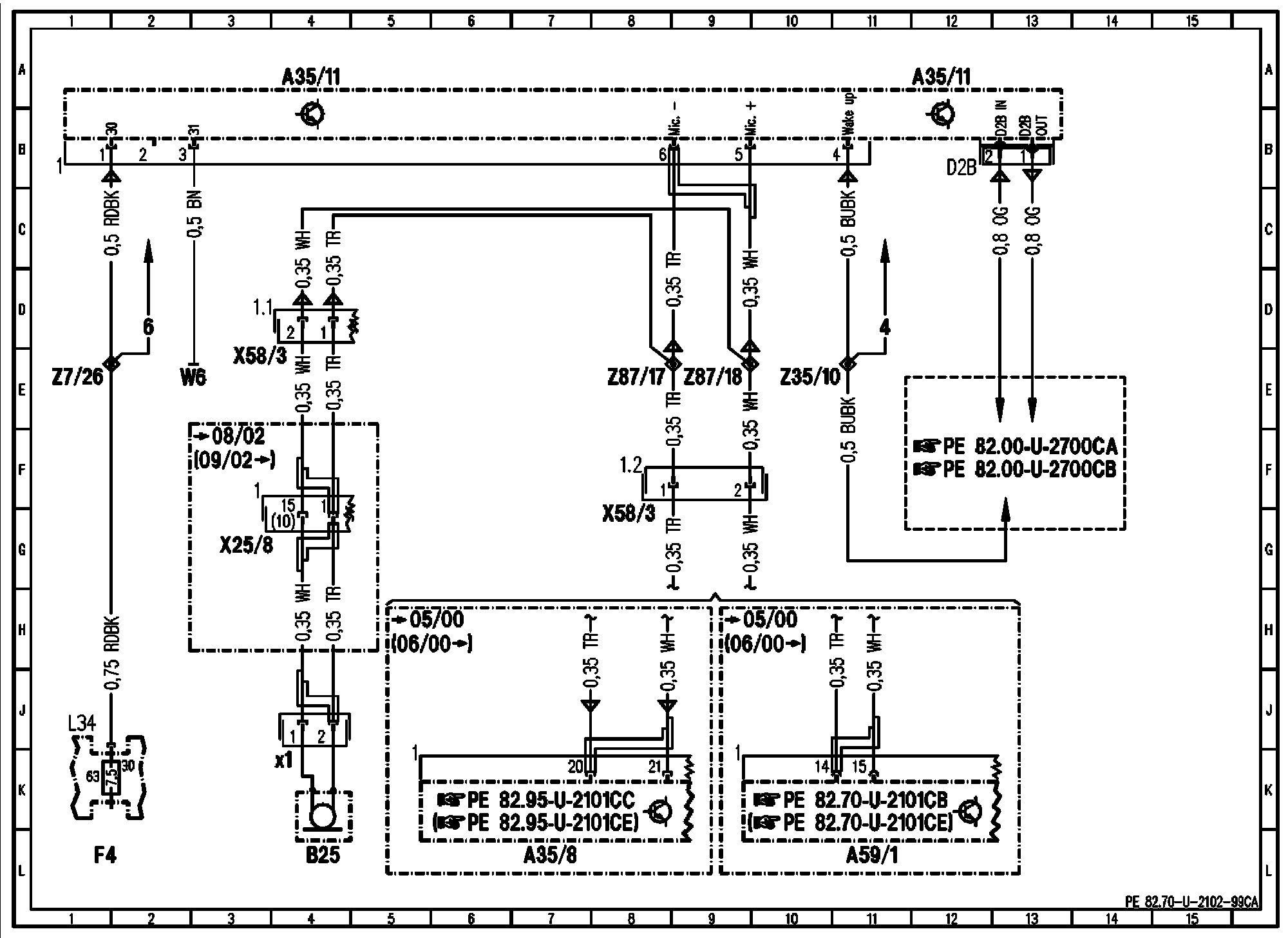

PE82.70-U-2102CA Voice Recognition System (VRS) Control Module



PE82.70-U-2102CA Voice Recognition System (VRS) Control Module
Model 215 up to 08/31/03 with CODE (813) Voice recognition system (VRS [SBS])
Control Module A35/11
