Home
>>
Mercedes Benz
>>
2000
>>
CL 500 (215.375) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Voice Activation System
>>

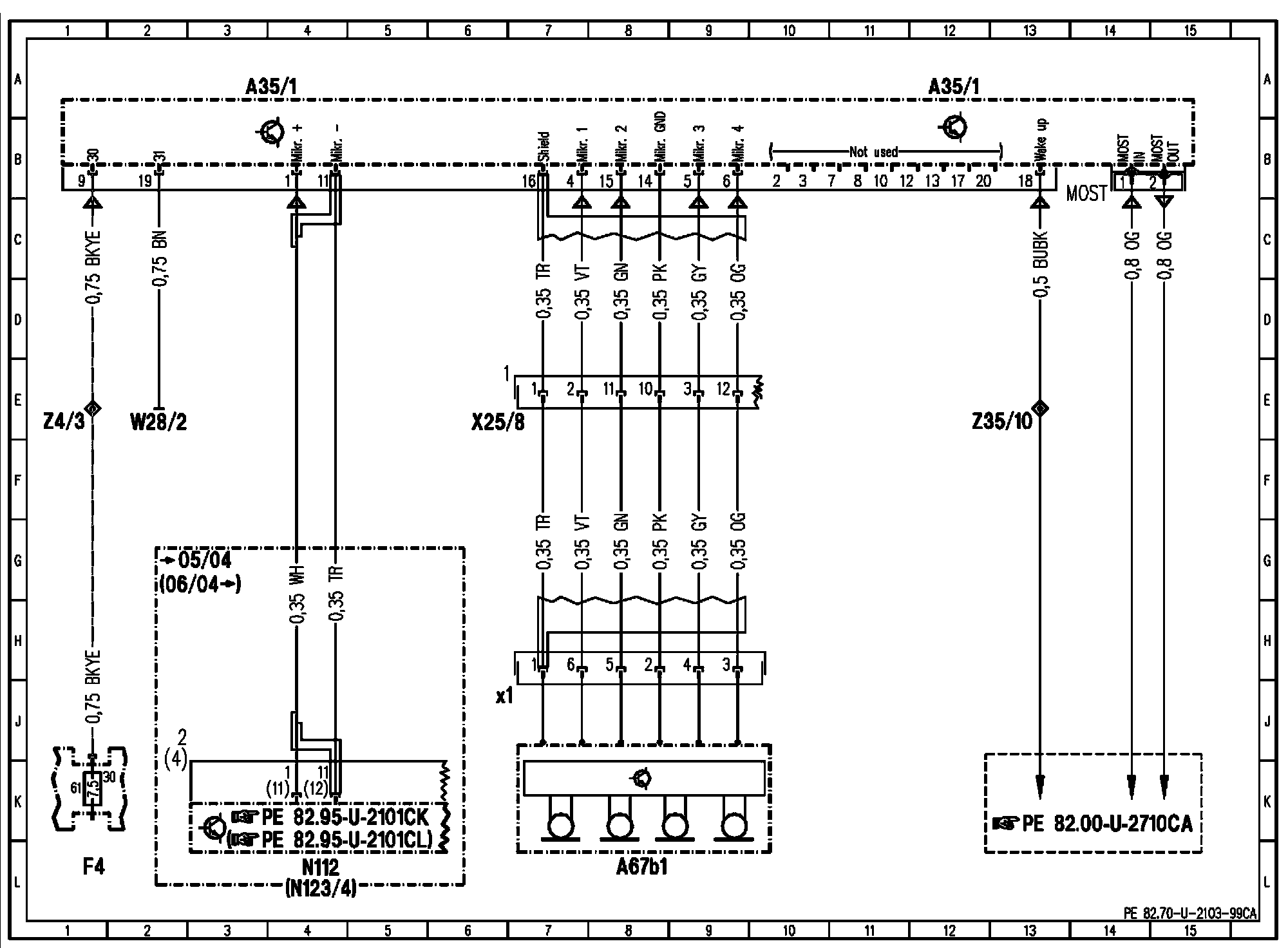

PE82.70-U-2103CA Hand-Free Microphone Control Module
PE82.70-U-2103CA Hand-Free Microphone Control Module
PE82.70-U-2103CA Hand-Free Microphone Control Module

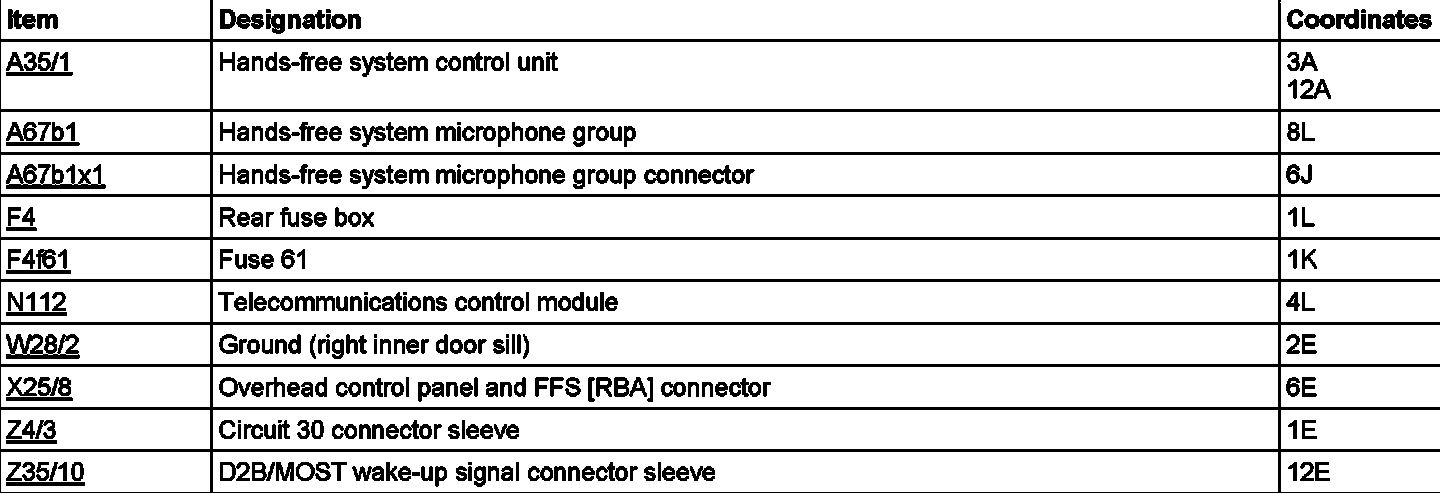

Control Module A35/1
