B2.1 - Engine Compartment (Left)




Arrangement and assignment of ground terminals, engine compartment (left)

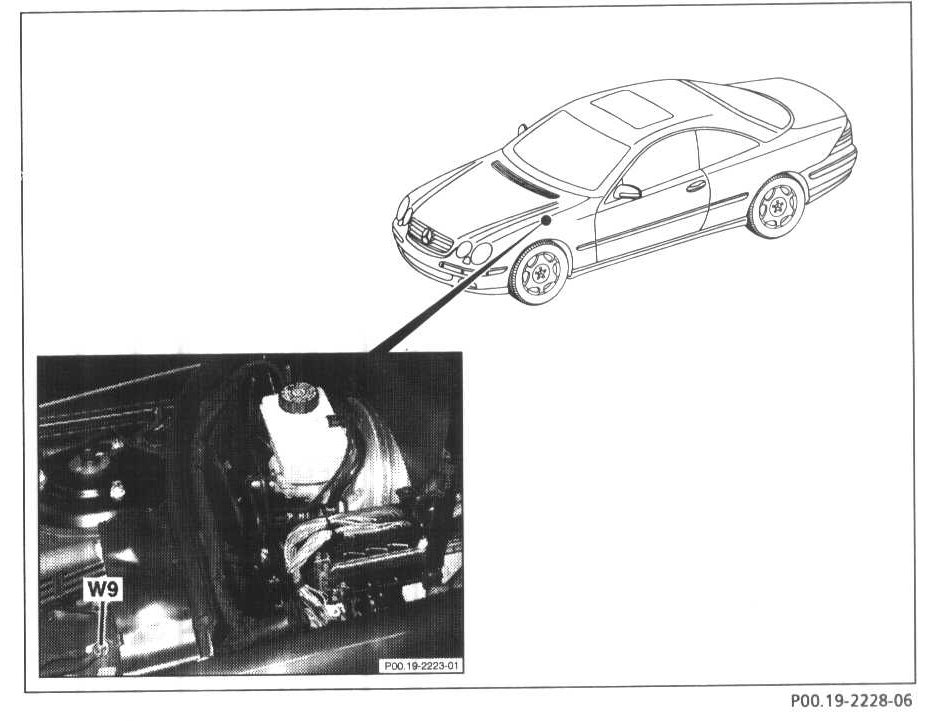

Arrangement

B2.1 Grounds:

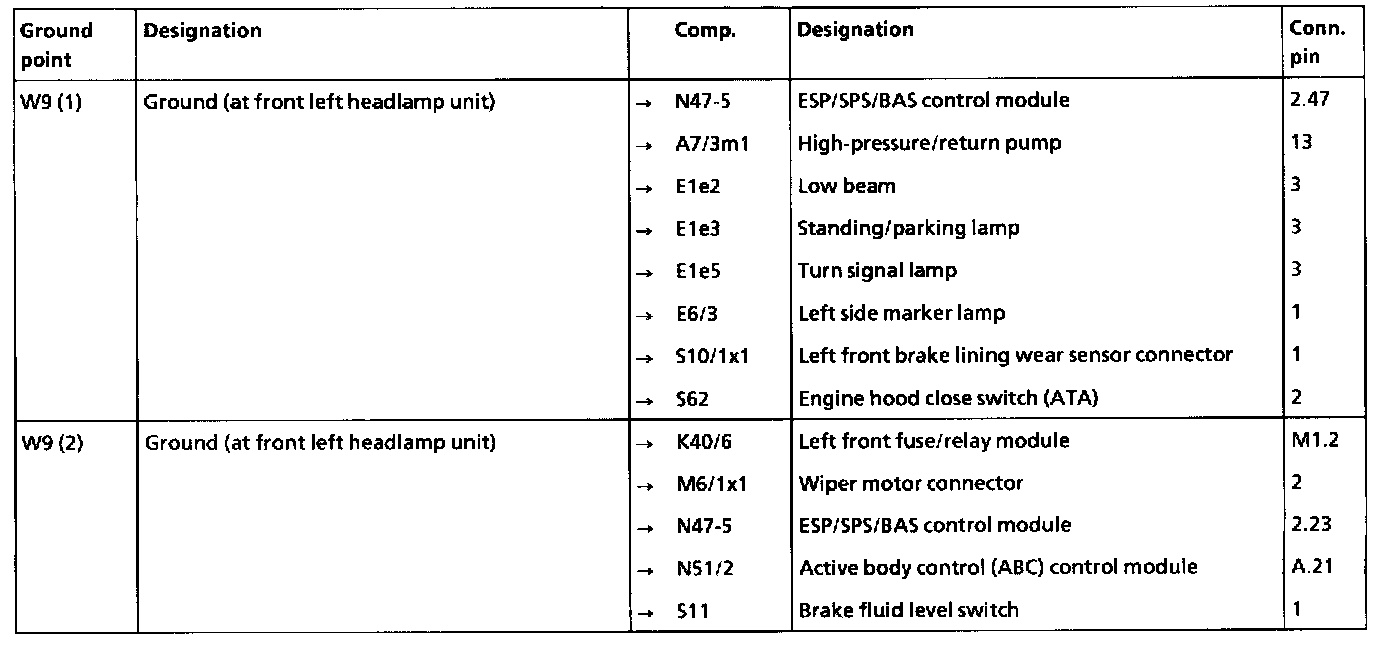

Assignment

B2.1 Designation:
