B2.5 - Interior Compartment (Right)



Arrangement and assignment of ground terminals, Interior Compartment (Right)

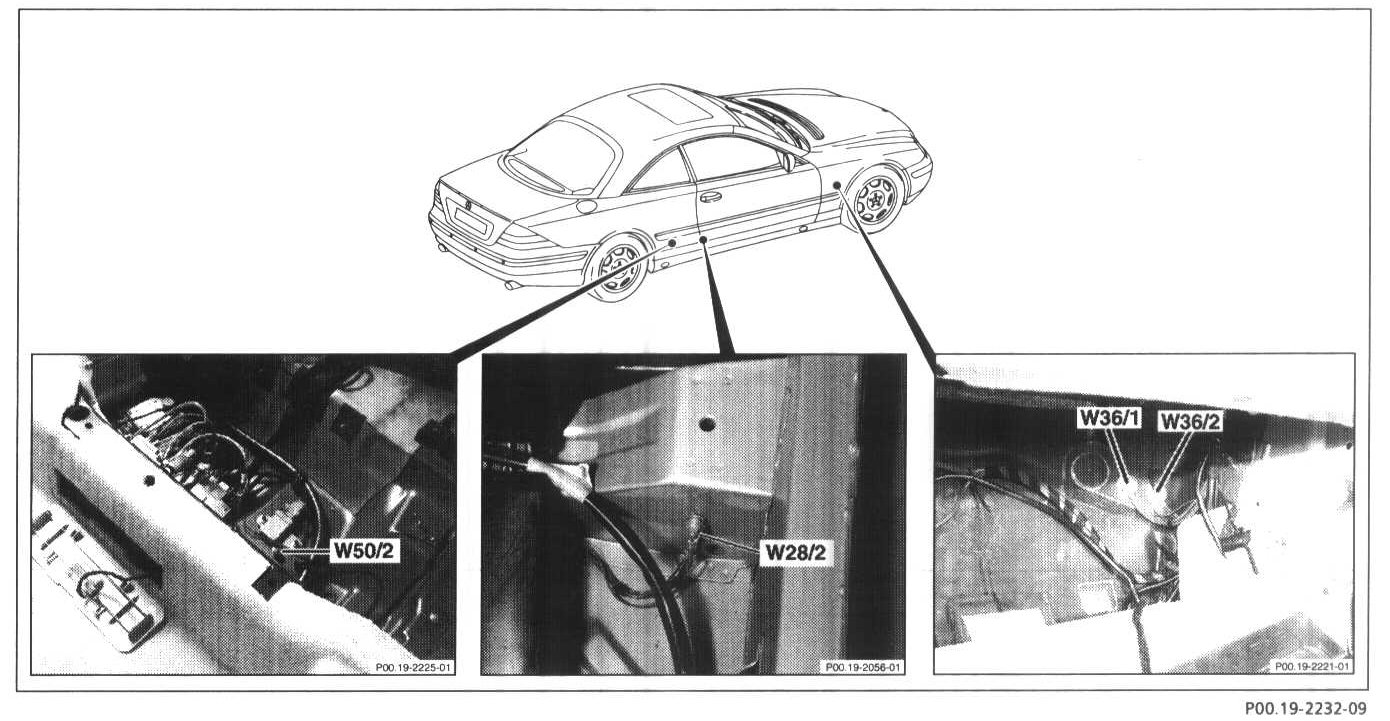

Arrangement

B2.5 Grounds:

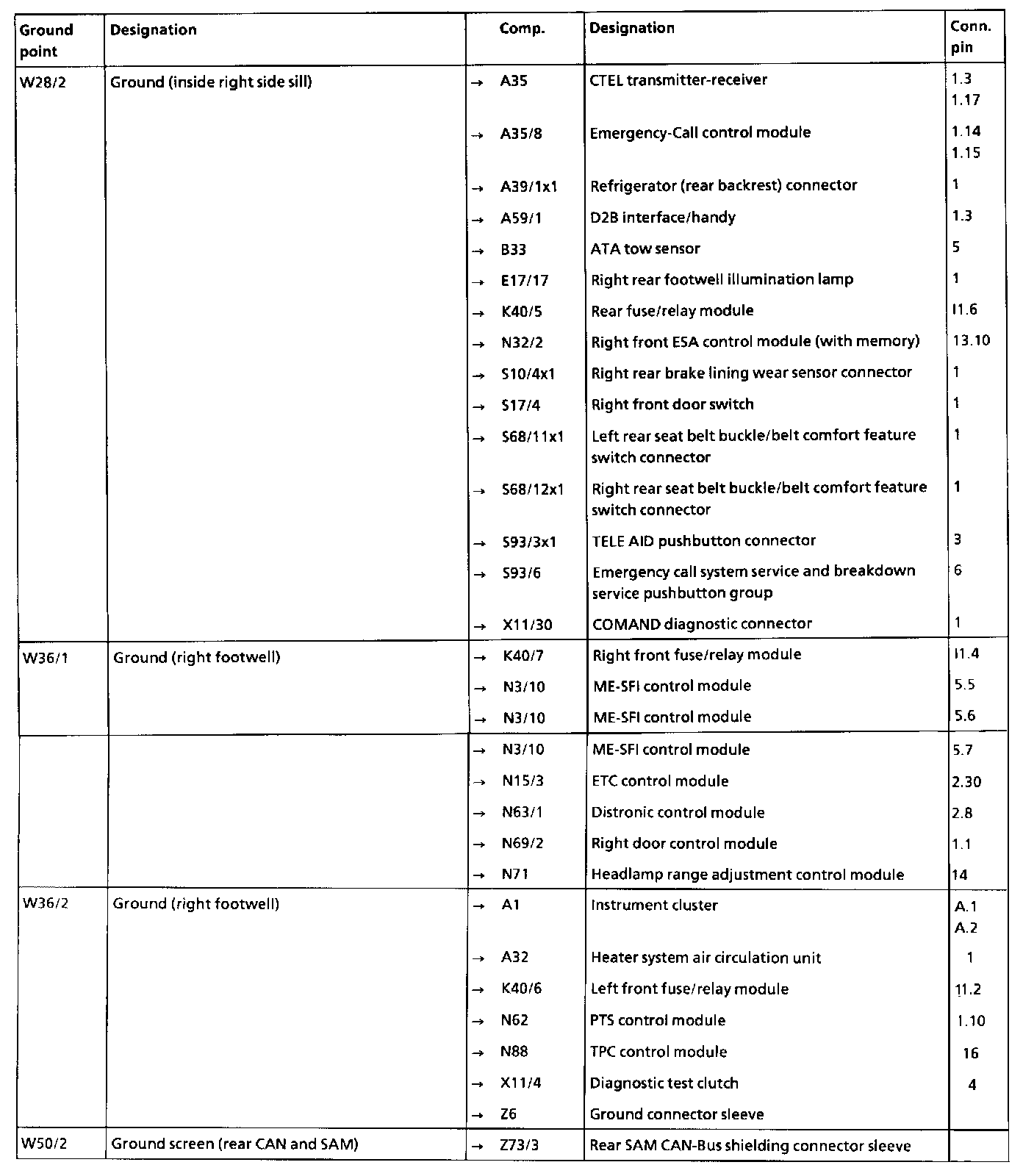

Assignment

B2.5 Designation:
