B3.2 - Engine Compartment (Right)



Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right)


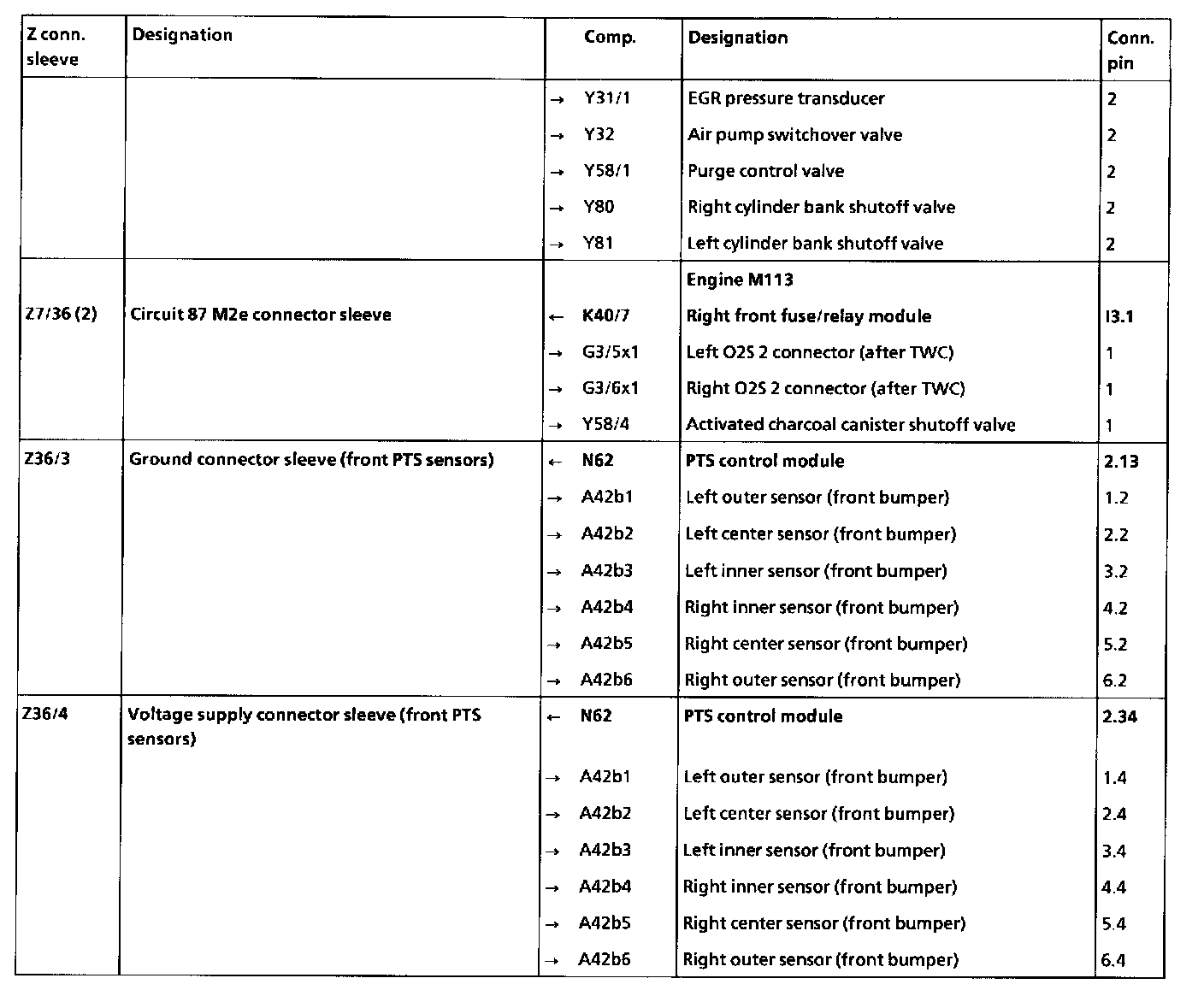

B3.2 Splices:






B3.2 Designation:
