B3.4 - Interior Compartment (Left)

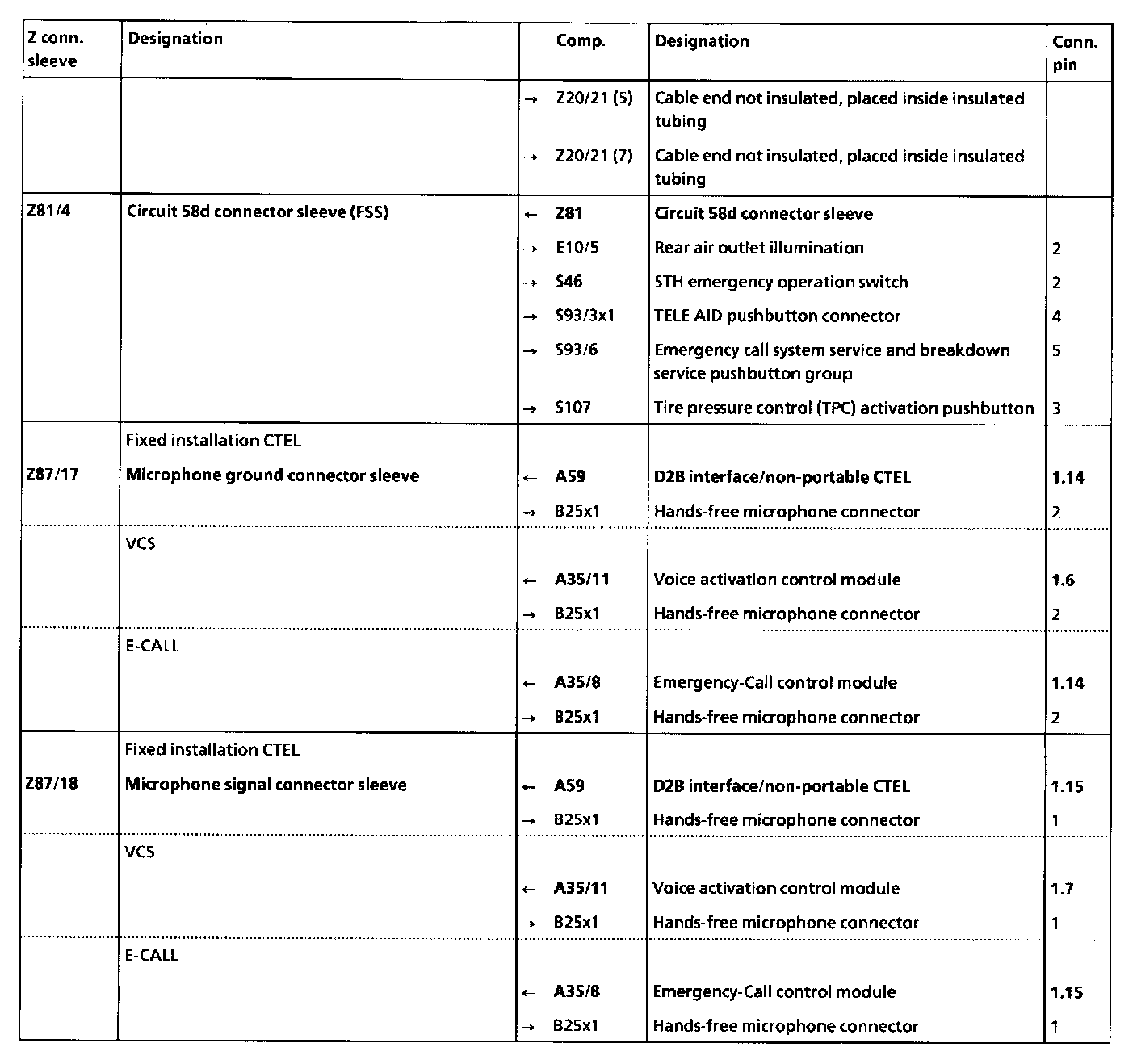

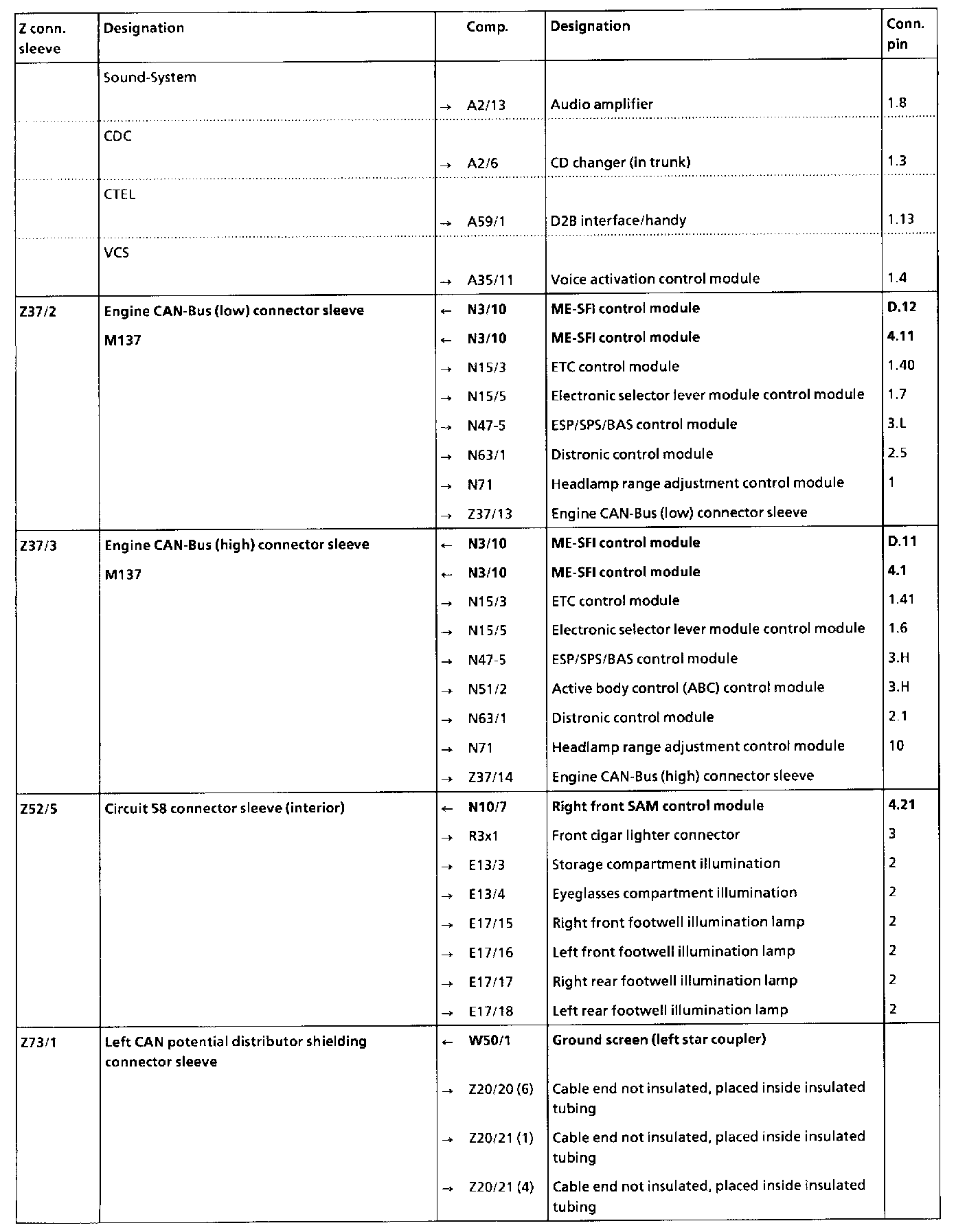

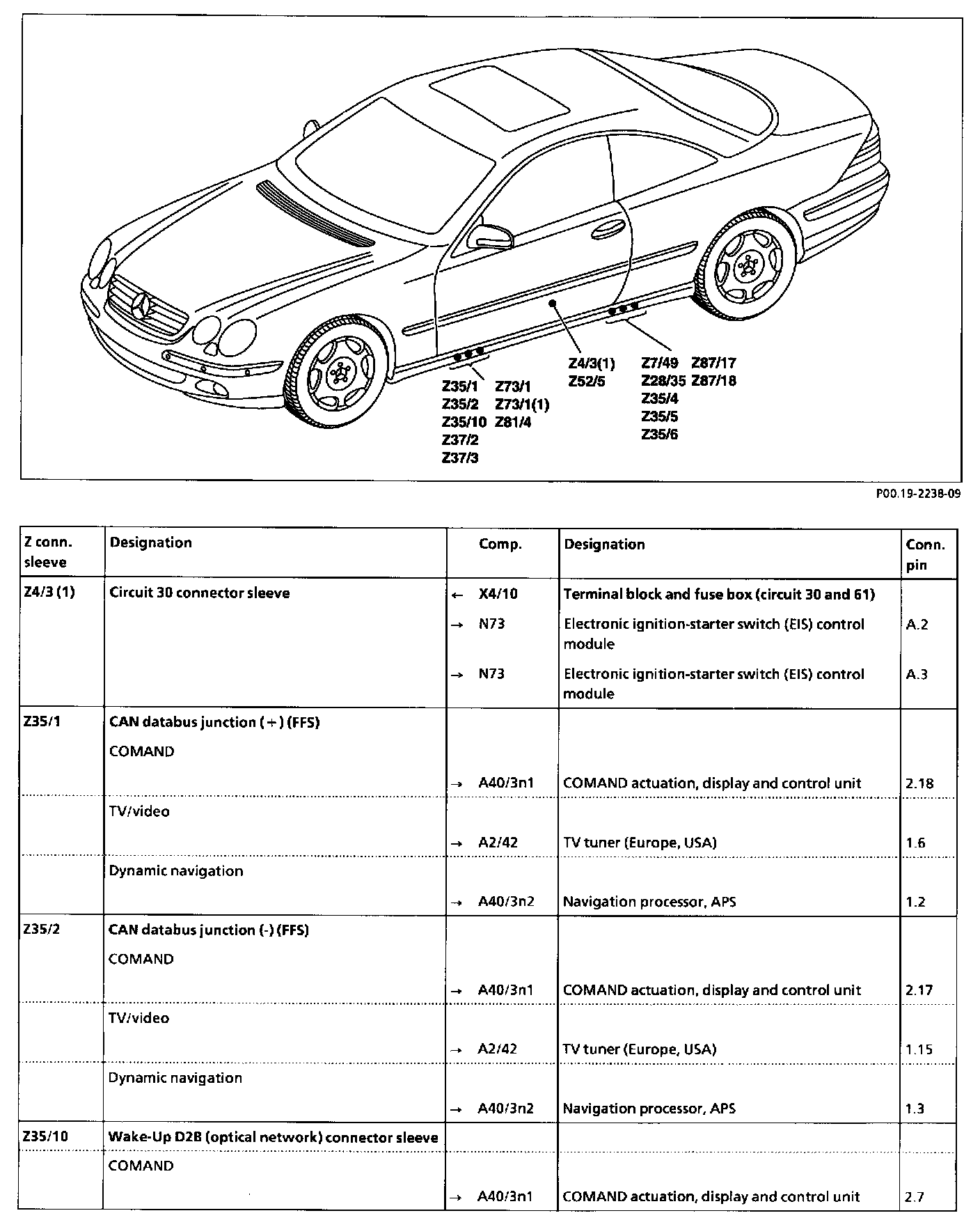

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (left)
B3.4 Splices:
B3.4 Designation:
B3.4 Designation:
Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (left)
