Blower Motor: Service and Repair

AR83.25-P-1200M Remove/Install Blower Motor

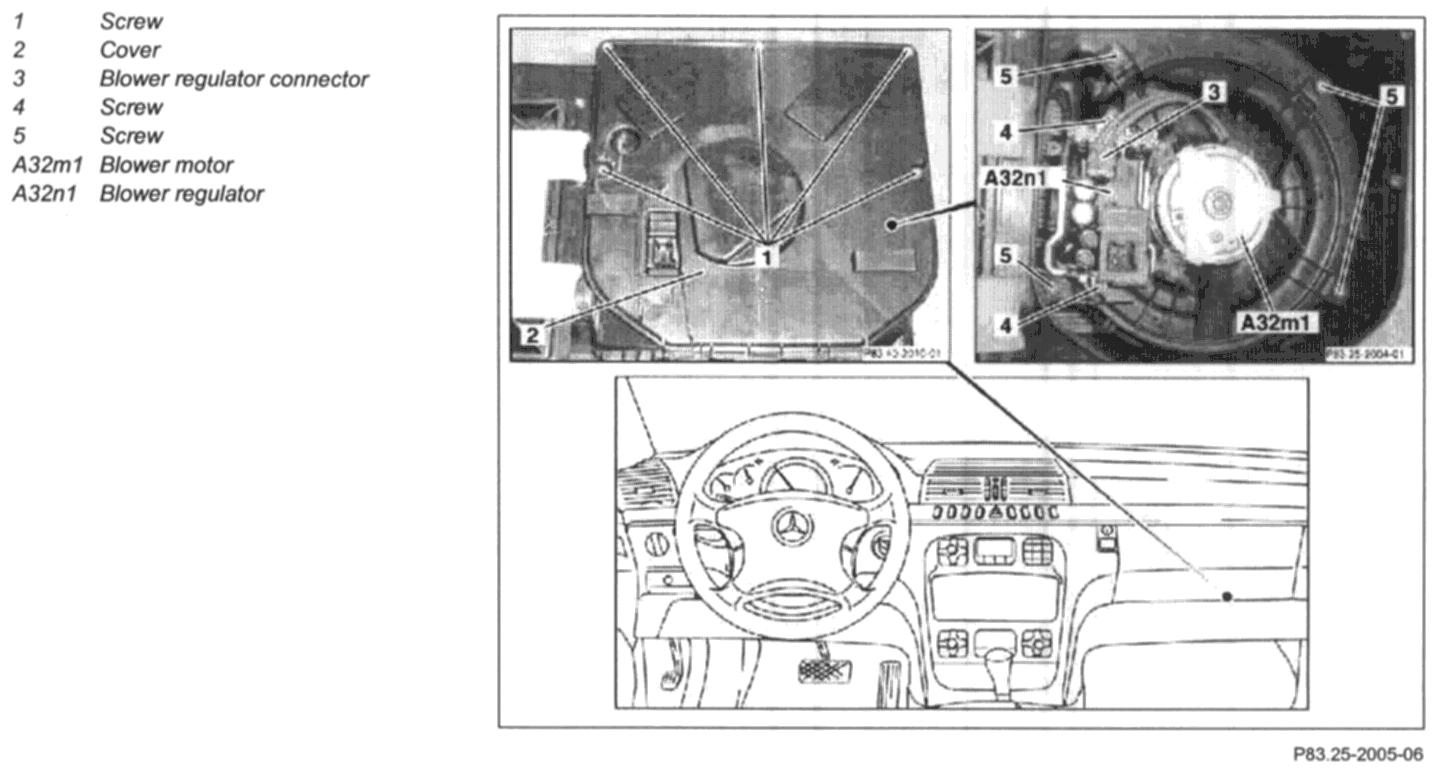

1 Remove cover below instrument panel on right Service and Repair
2 Disconnect blower connector
3 Unscrew screws (1)
4 Remove cover (2)
5 Disconnect connector from blower regulator (3)
6 Unscrew screws (4)
7 Remove blower regulator (A32n1)
8 Unscrew screws (5)
9 Remove blower motor (A32m1)

CAUTION: Do not lay blower motor (A32m1) down on impeller.

10 Install in opposite order.
