Interlinkage of Components




Temperature Control Interlinkage:

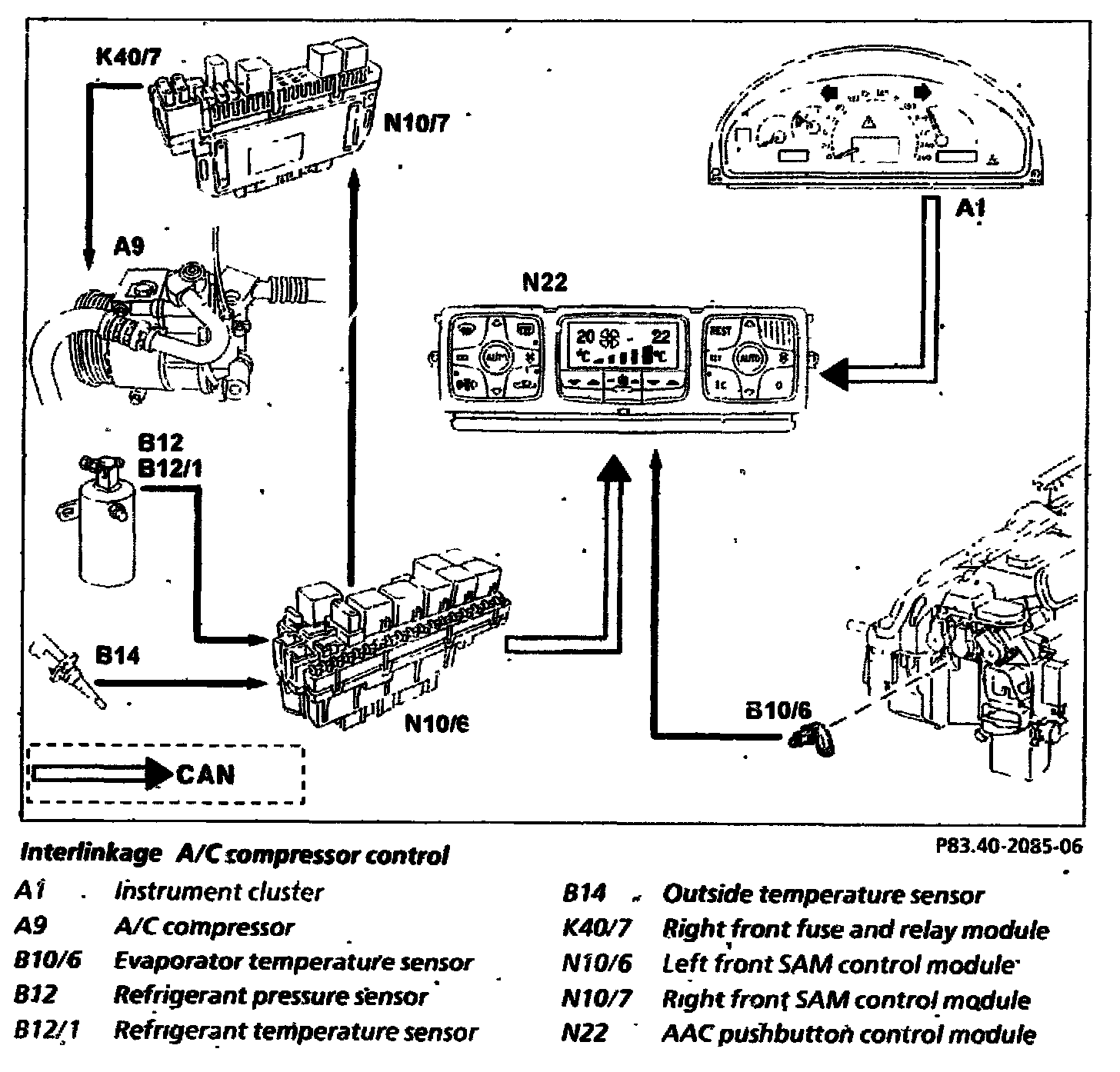

Interlinkage A/C Compressor Control:

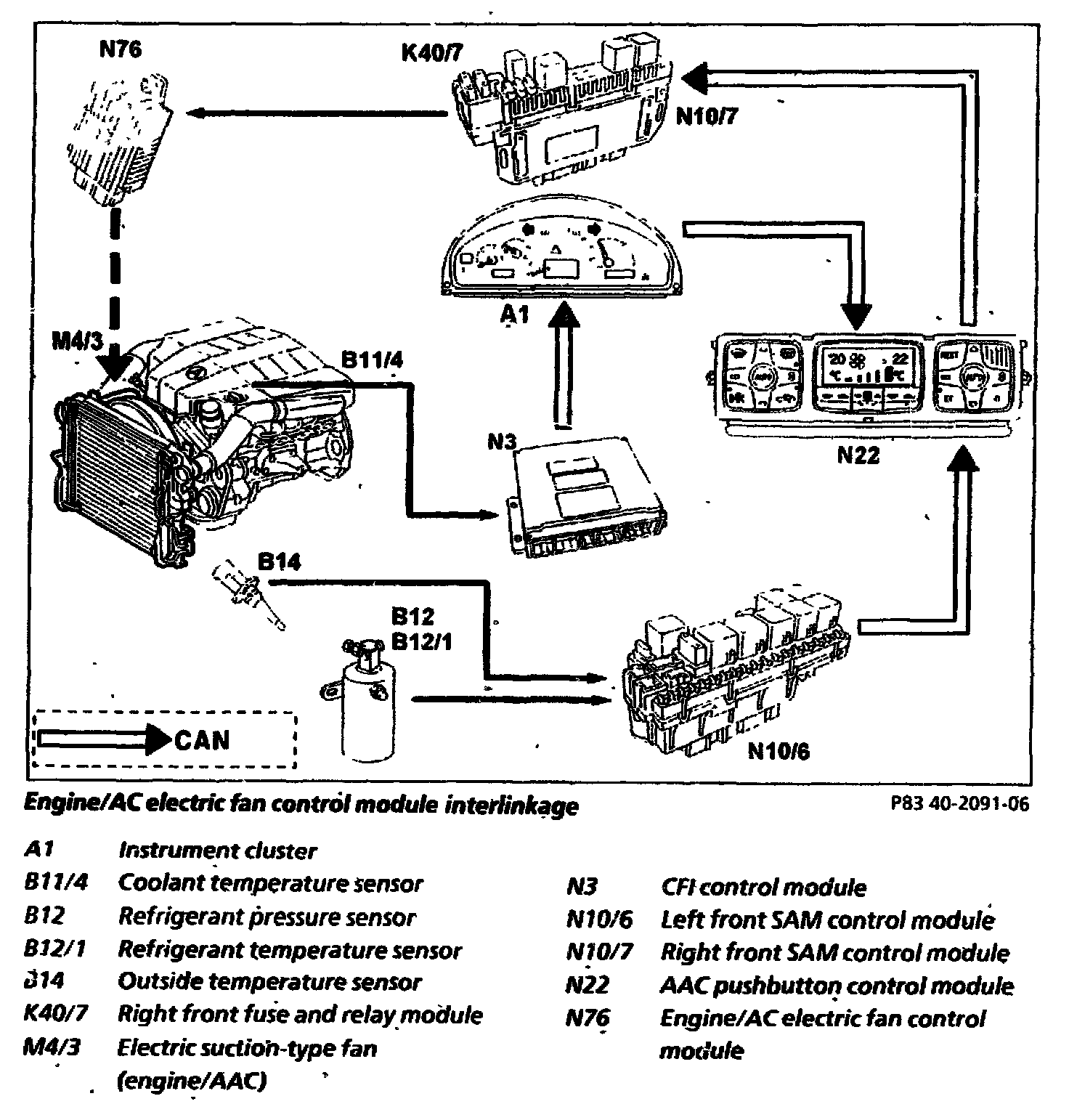

Engine/AC Electric Fan Control Module Interlinkage:
