Displaying Transmission Information

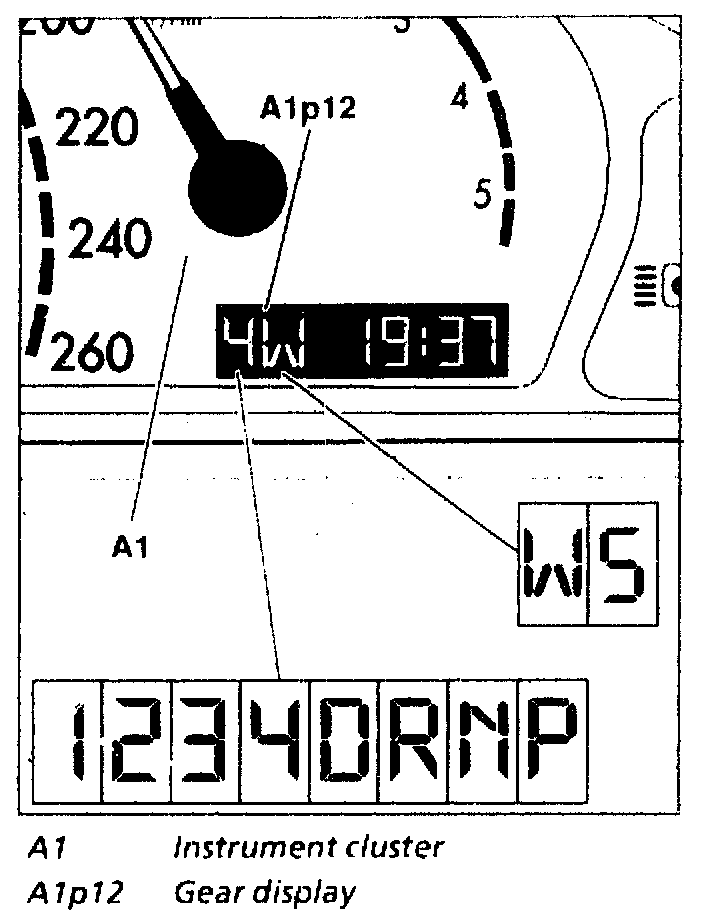

Gear Display (A1p12):

Gear display (A1p12)
- The gear display (A1p12) is designed as a liquid crystal display
- The shift range selected (14) or the selector lever position (DP) and the drive program selected (W or S) is displayed. The updating of the drive program displayed may take up to one minute.
- The required data is received from the ETC control module (N15/3) via the CAN engine compartment.


NOTE: The display field remains dark if CAN signals are defective.
