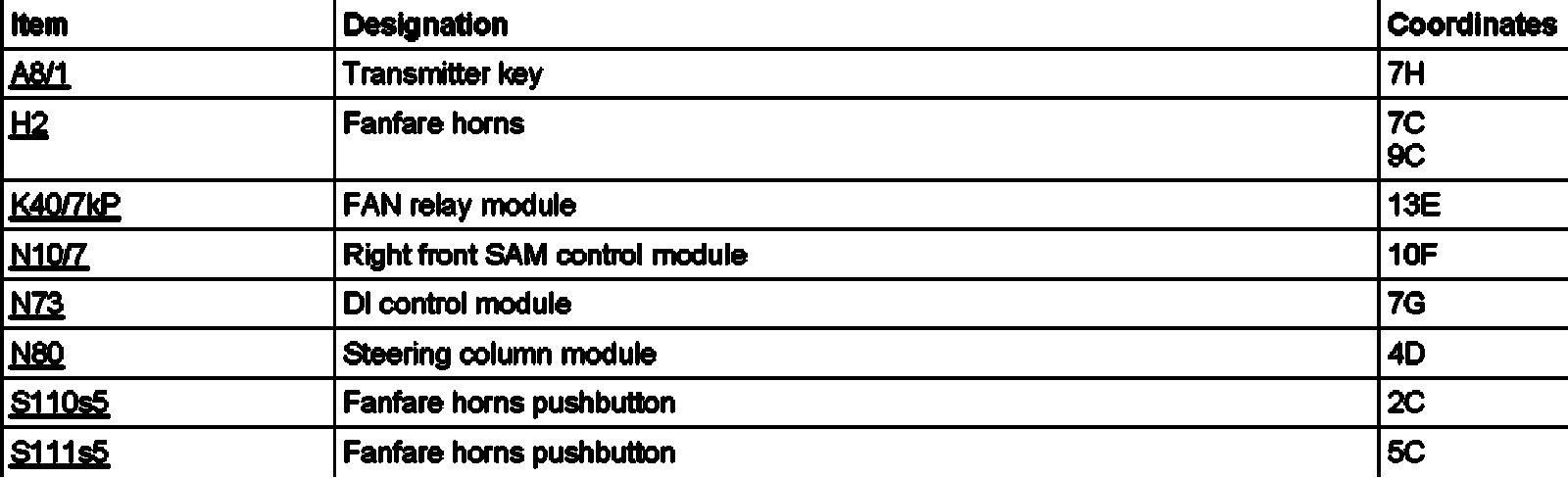

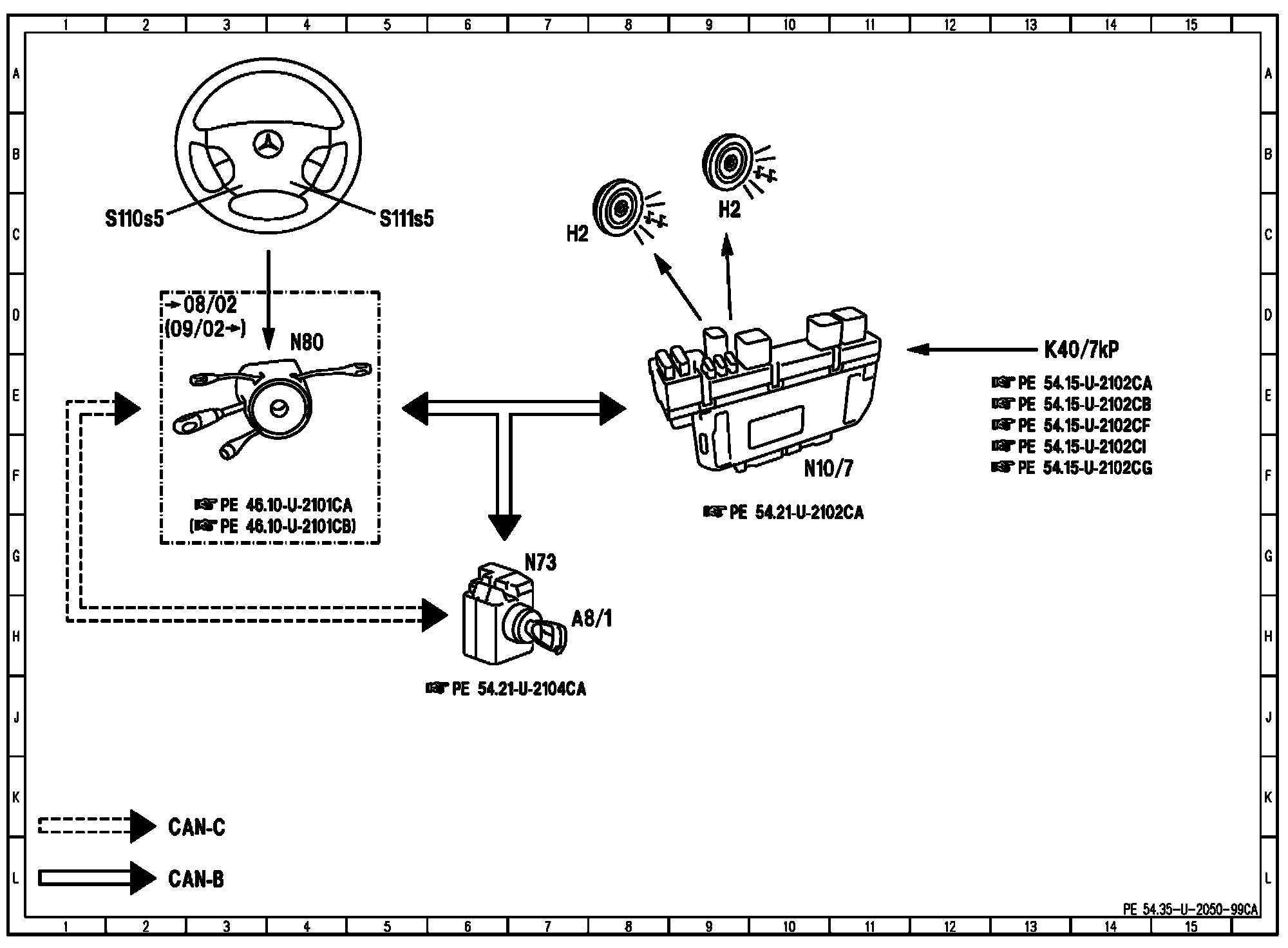

PE54.35-U-2050CA Function Diagram of Fanfare Horn System (FAN) Electrical System
PE54.35-U-2050CA Function Diagram of Fanfare Horn System (FAN) Electrical System
PE54.35-U-2050CA Function Diagram of Fanfare
Horn
(FAN) Electrical System
