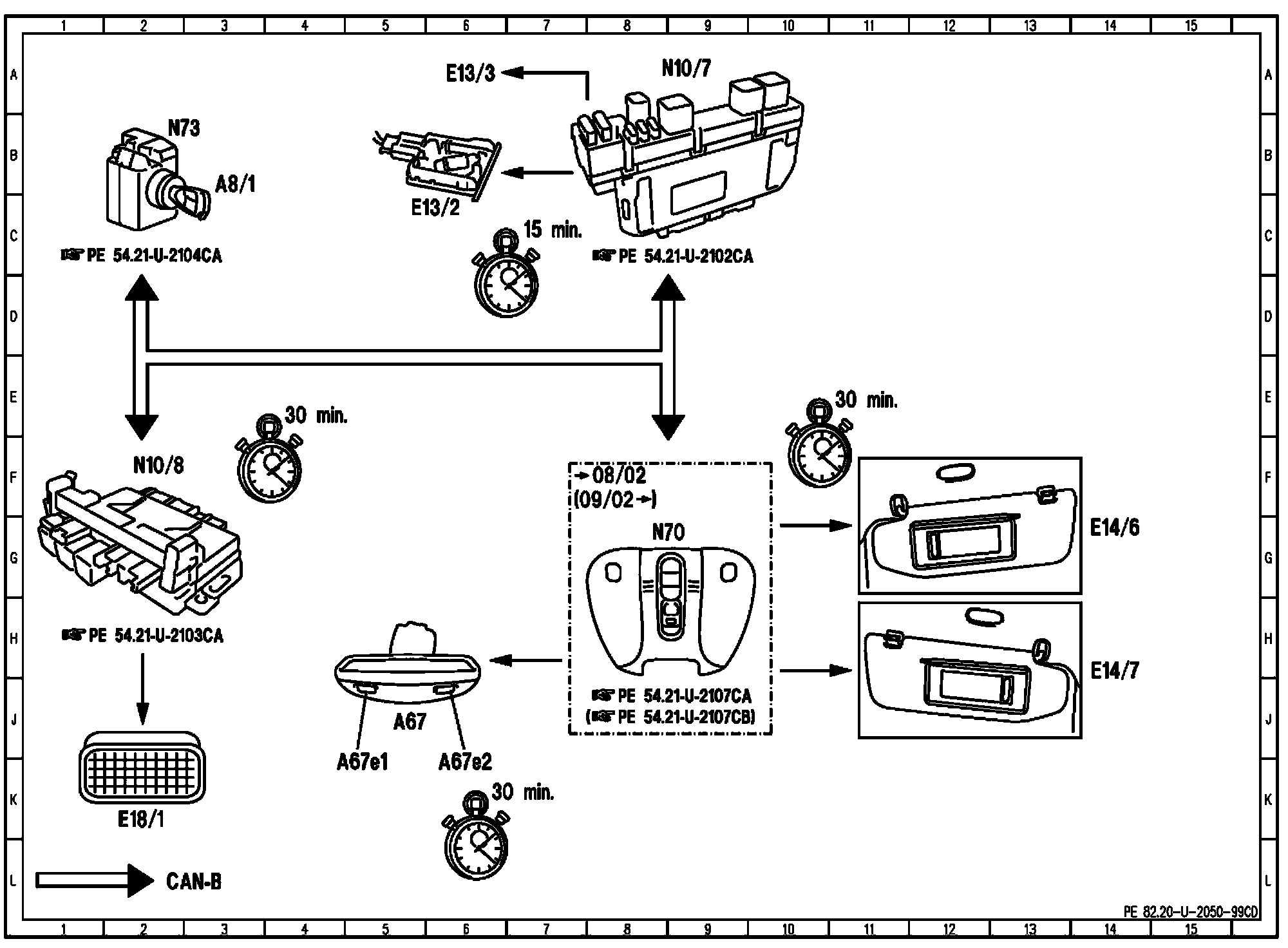

PE82.20-U-2050CD Electrical System Function Diagram For Interior Lights



PE82.20-U-2050CD Electrical System Function Diagram For Interior Lights
Glove and storage compartment, reading lamps, vanity mirror, trunk lamp
