B3.6 - Trunk (Left)
B3.6 - Trunk (Left)

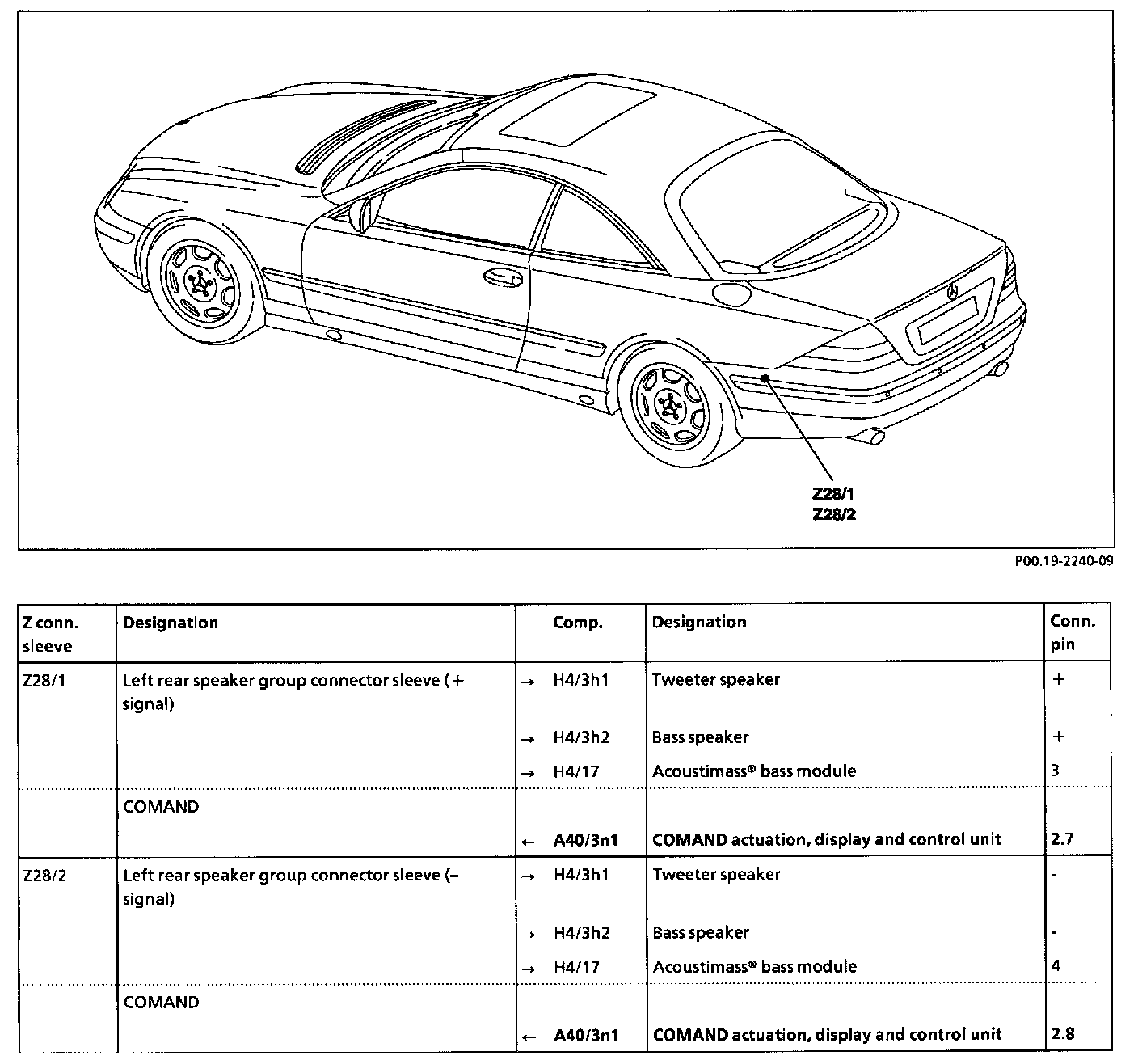

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (left)
B3.6 Splices:
