Cellular Telephone (CTEL) PE82.70-U-2000MA




Cellular Telephone (CTEL) PE82.70-U-2000MA
- AMPS network with Handy, with D2 bus


0��8Cellular Telephone (CTEL) PE82.70-U-2000MA:

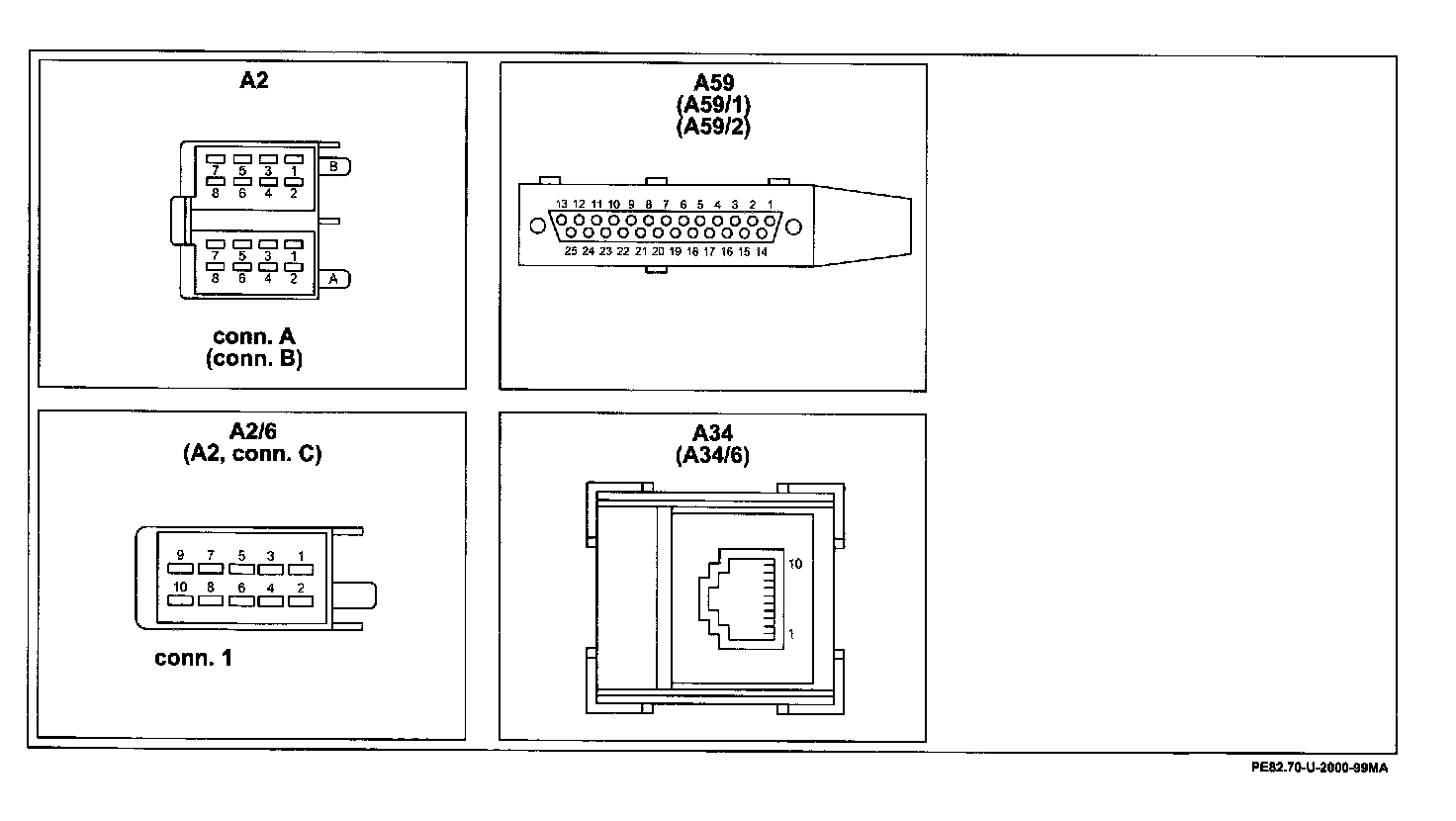

Connector Assignment:

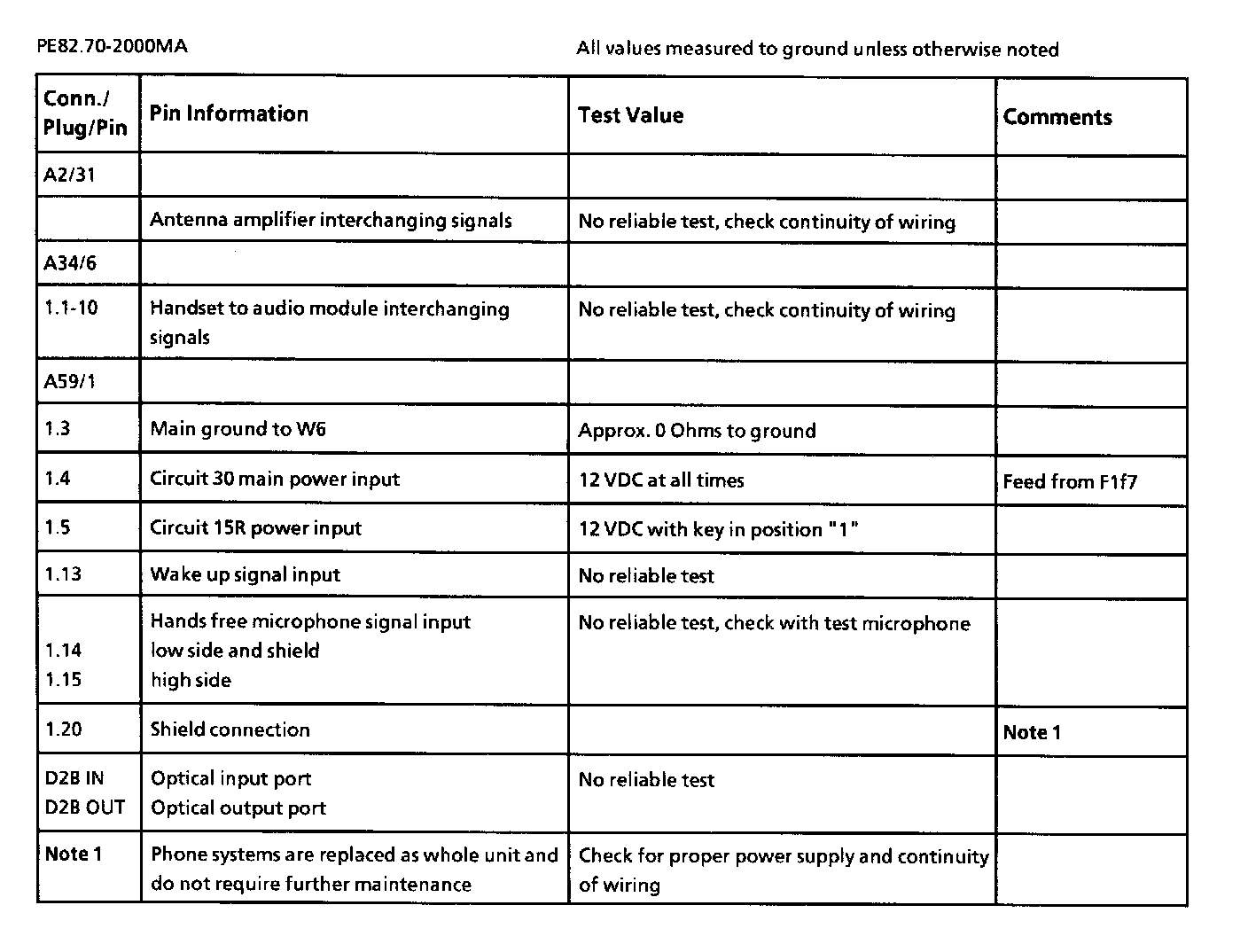

Pin Information:
