Collision Avoidance and Parking Assist Systems

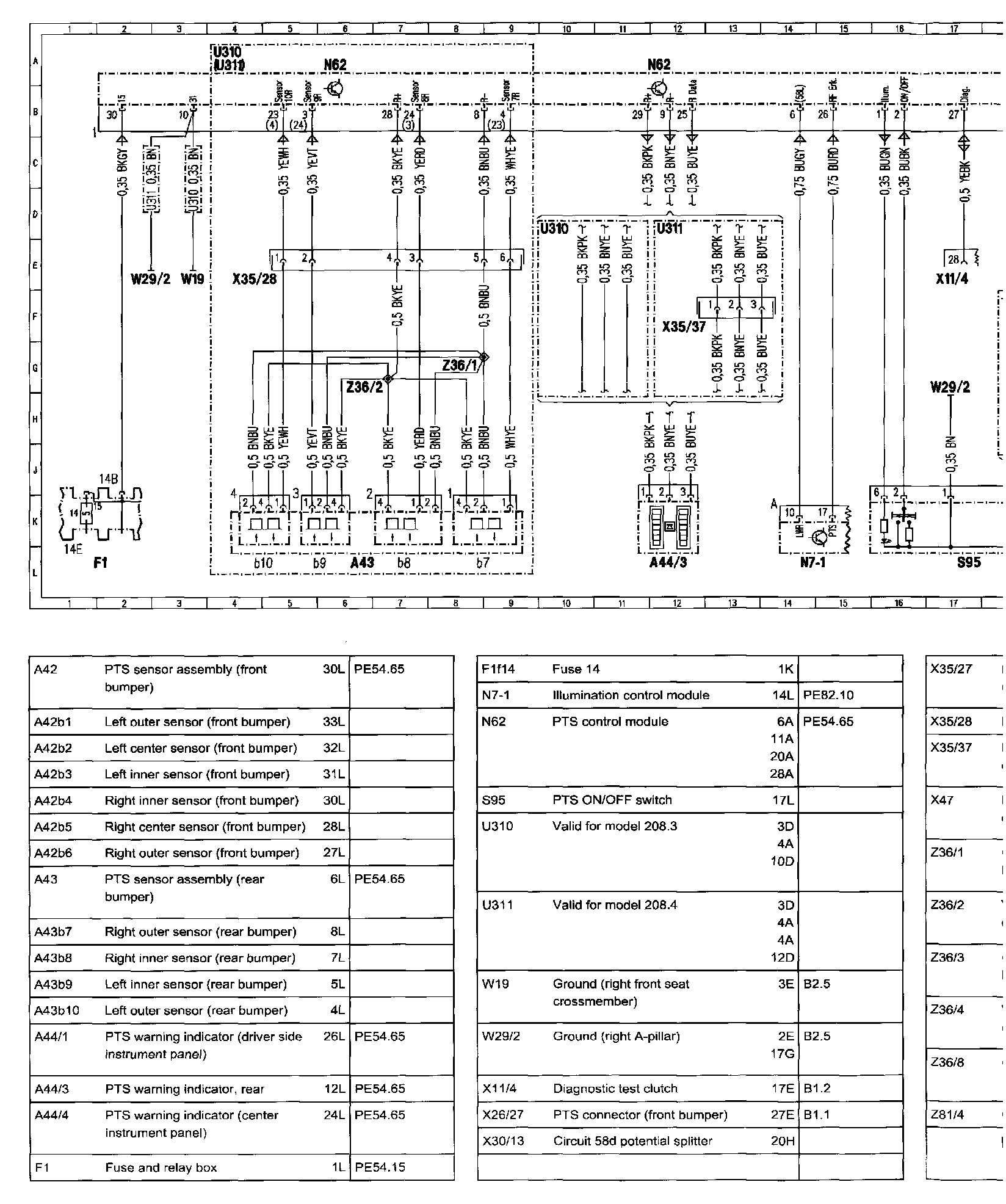

Parktronic System

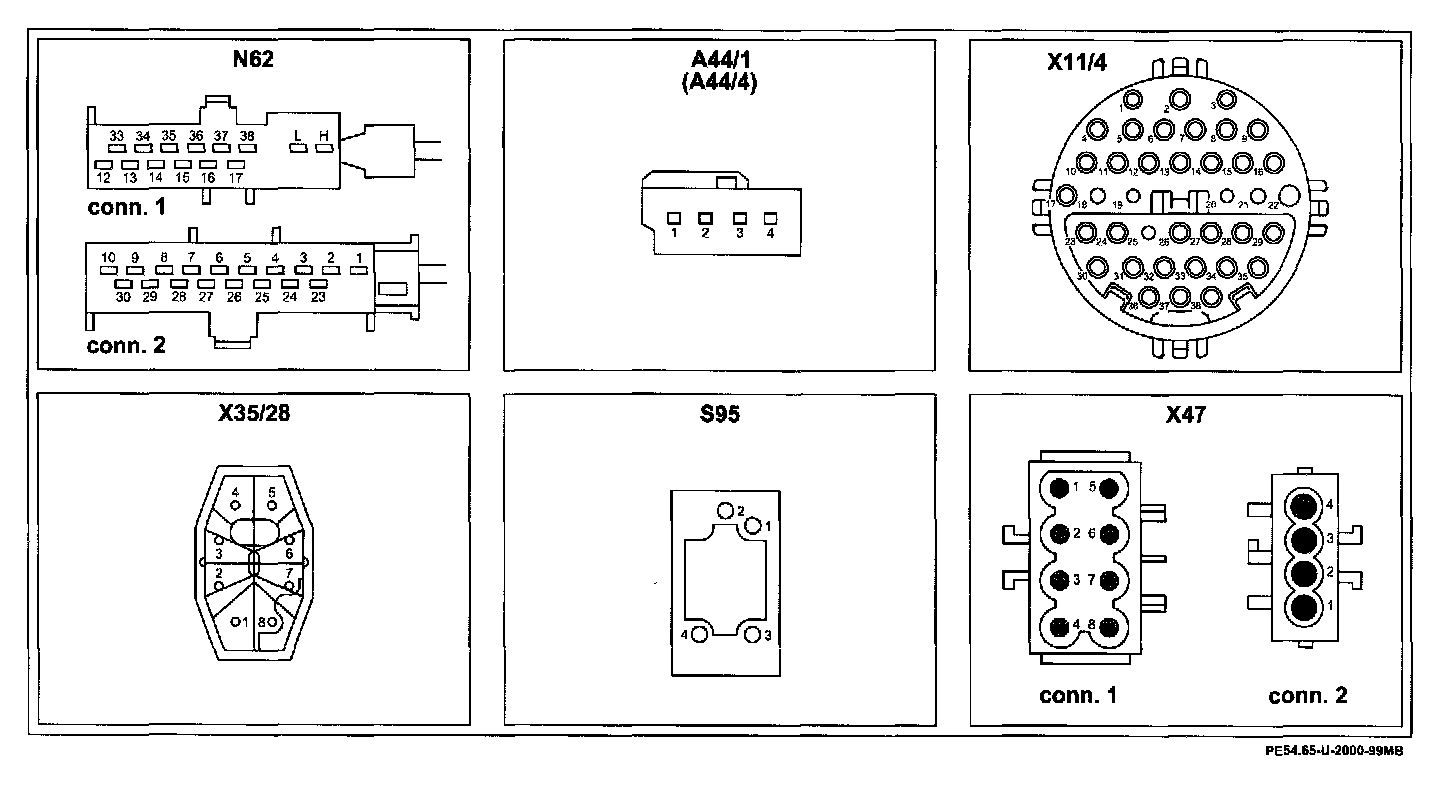

Connector Assignment:

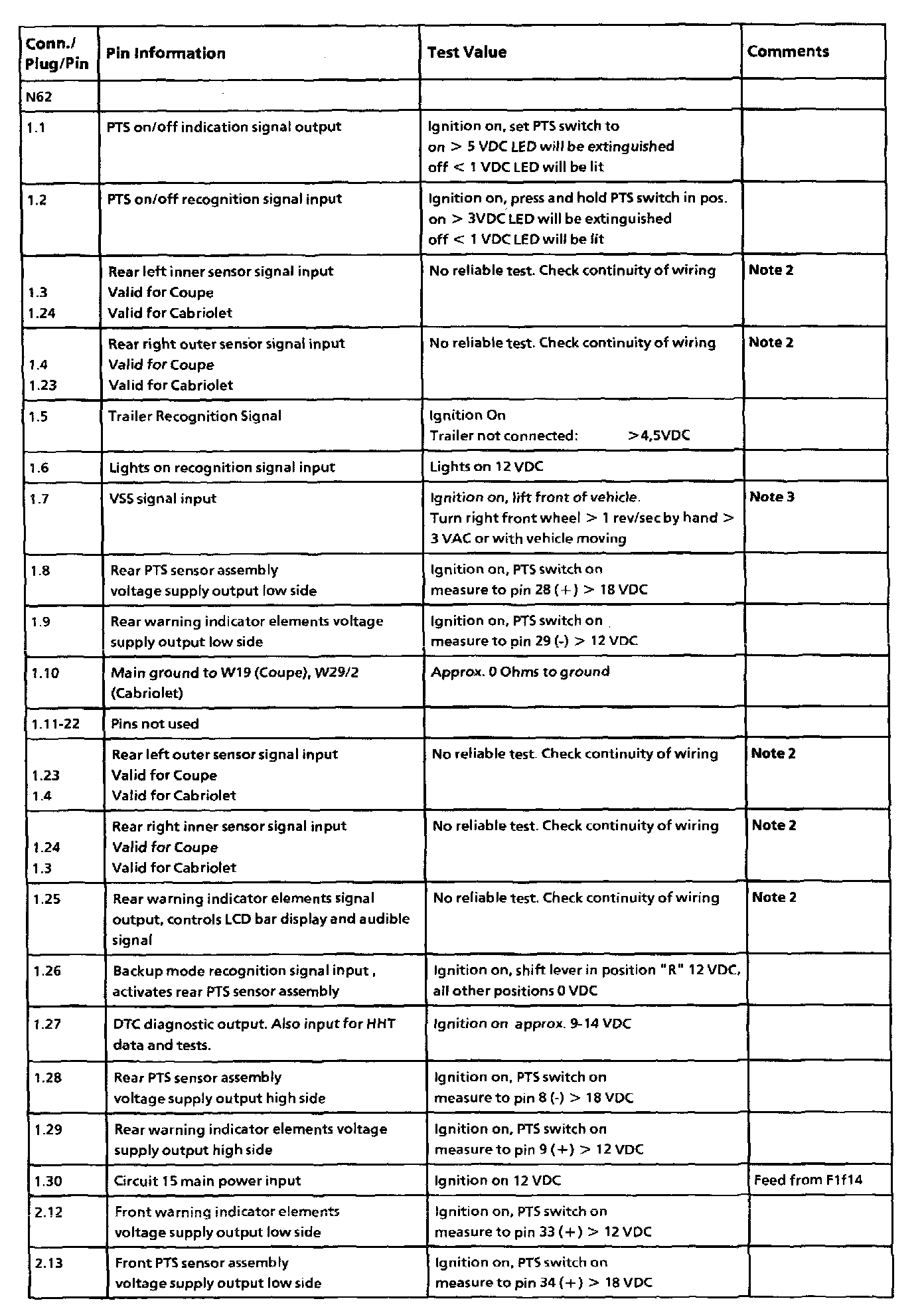

Pin Information, Part 1:






Pin Information, Part 2:
