Home >> Mercedes Benz >> 2000 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> ME-SFI Fuel Injection/Ignition System PE07.61-U-2000MP

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000MP

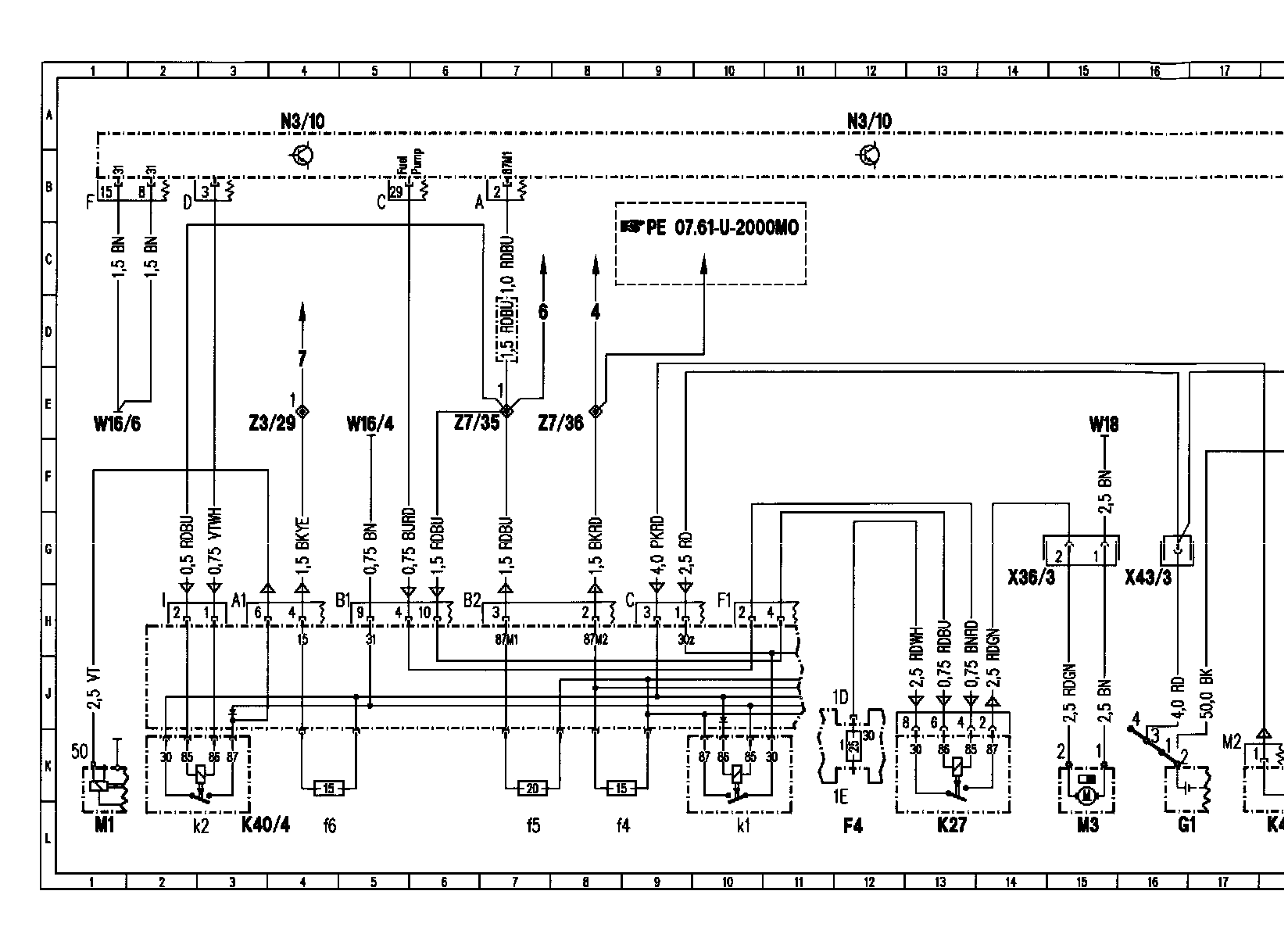

ME-SFI Fuel Injection & Ignition System
- Engine Block Harness


<n:

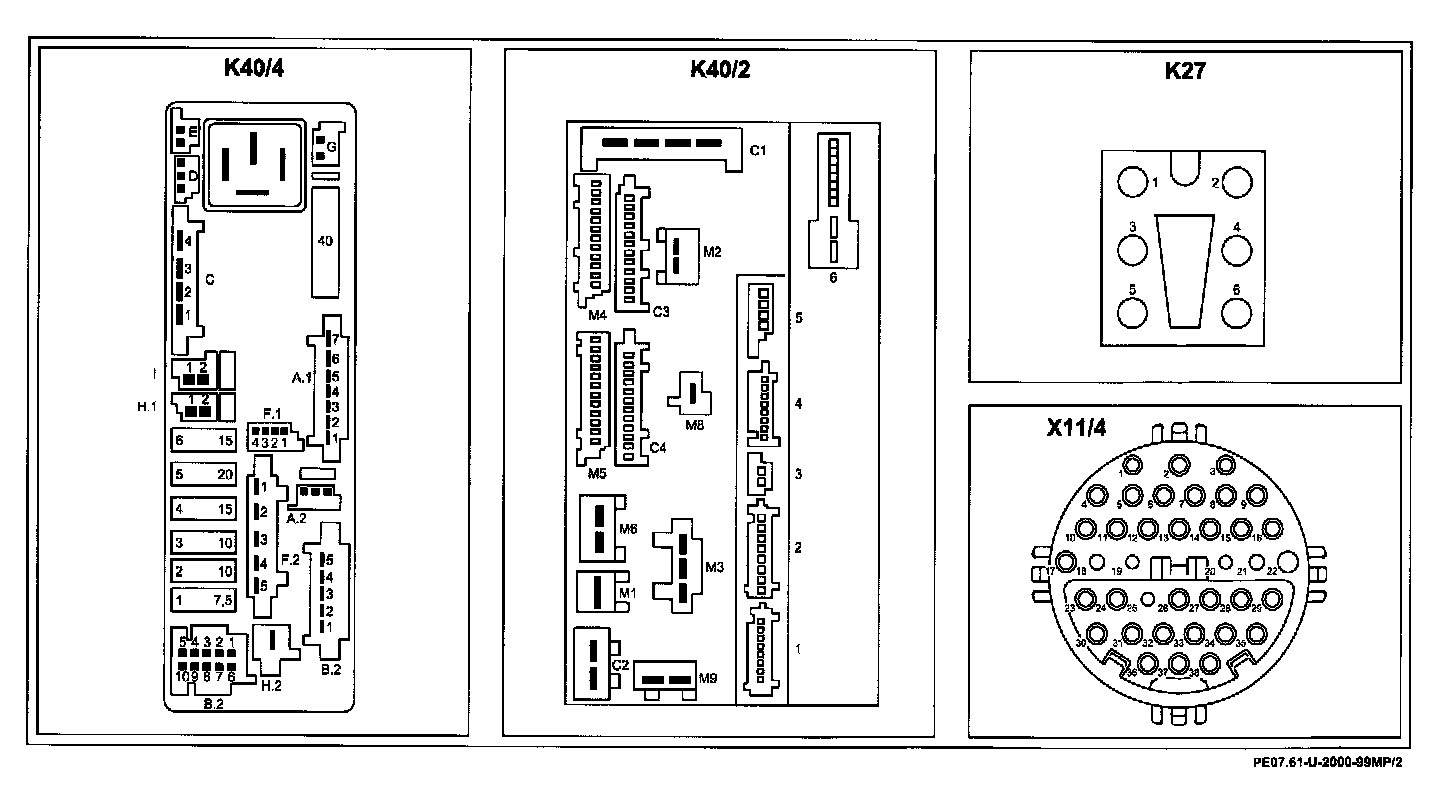

Connector Assignment:






Connector Assignment:






Pin Information, Part 1:






Pin Information, Part 2:






Pin Information, Part 3:
