Front Reinforcement - New Mounting Points & Tool Set

Date: September 2000

Order No.: P-SI-58.20/1 14

Supersedes:

Group: 58

SUBJECT:
MODEL 210 (MODEL YEAR 2000)
NEW ADAPTER GAUGE SET REQUIRED WHEN REPLACING FRONT
REINFORCEMENT

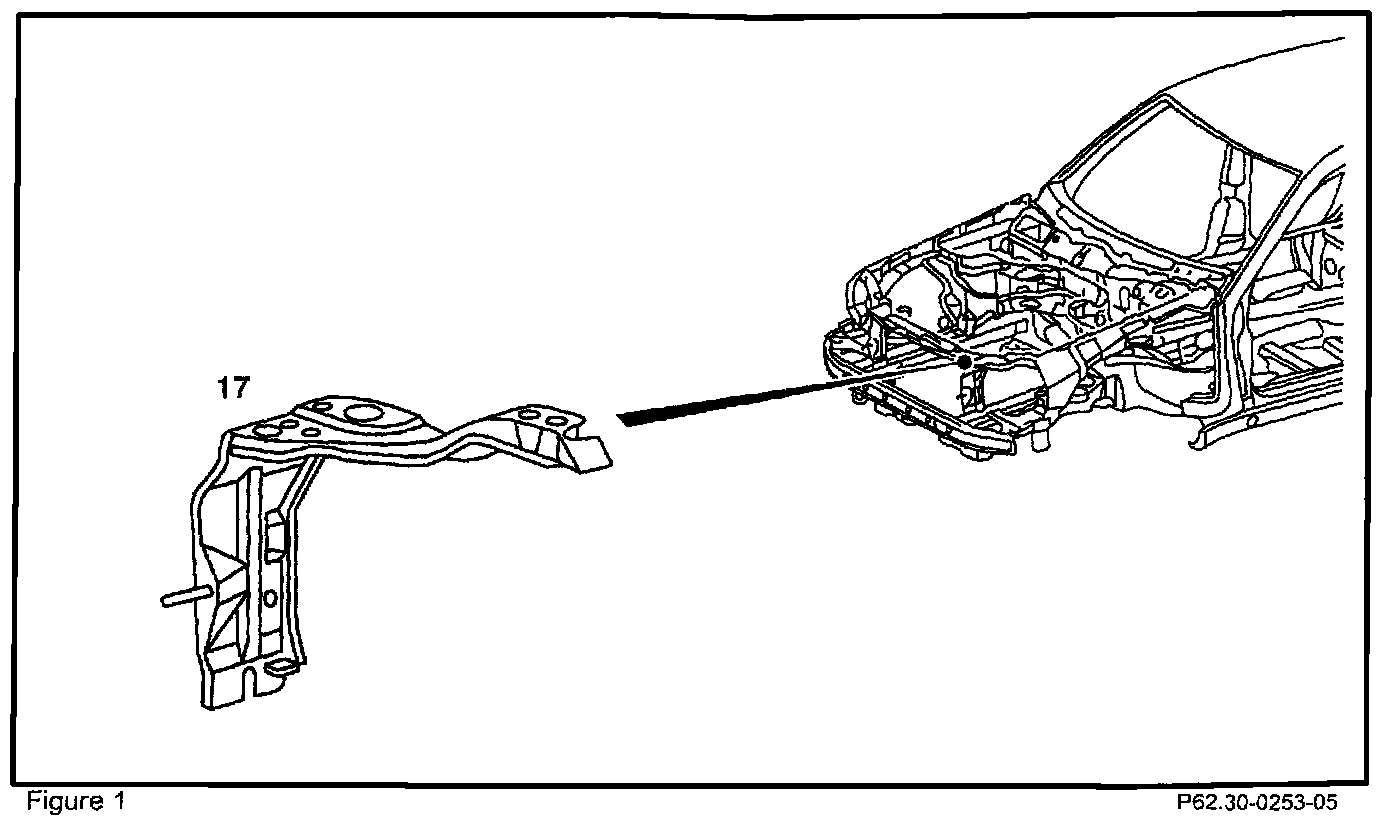

On Model 210, as of MY. 2000, the location of the mounting points on the front reinforcement (17, Figure 1) for the check and welding gauge 210 589 01 23 00 have been modified.

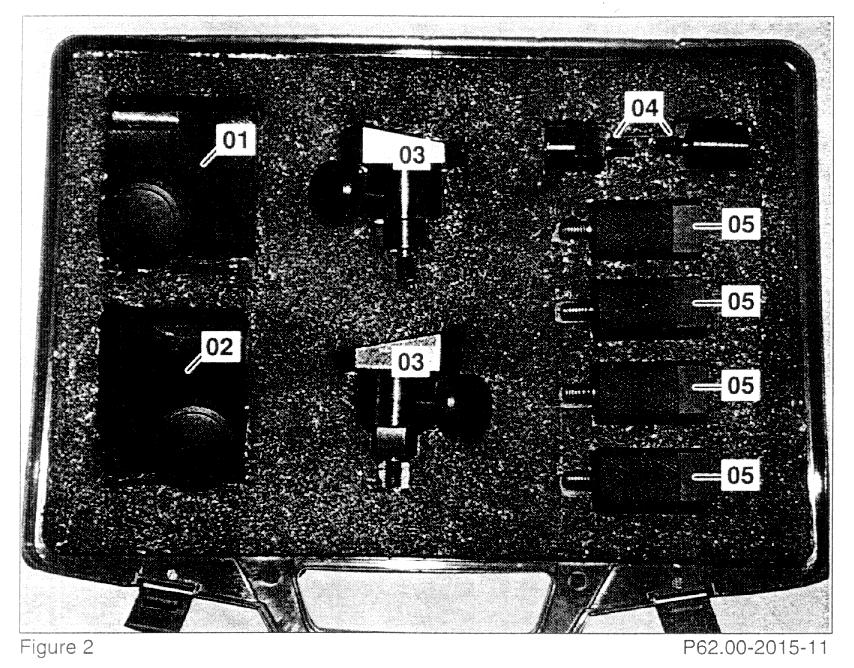

As a result, the check and welding gauge can therefore only be used with the adapter gauge set 210 589 22 23 0O (Figure 2).

Prior to beginning the replacement of the front reinforcement, carefully review the following documents in WIS (Workshop Information System): AR62.30-P-1400F and BT62.00-P-0001 -01 A, which show the use of the new adapter gauge set 210 589 22 23 00 (Figure 2).

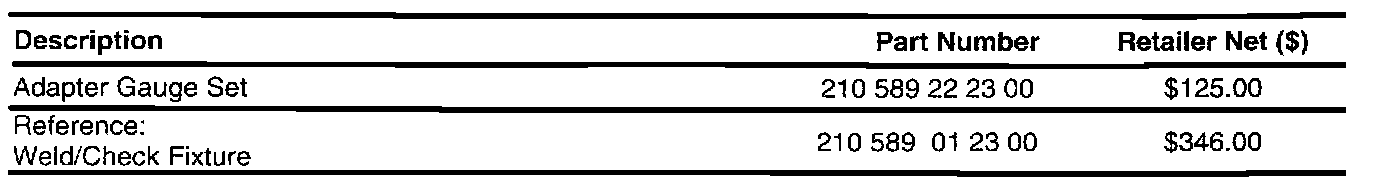

Ordering Information:

See the MBUSA Standard Service Equipment Program Catalog for ordering instructions (1-888-458-4040).
