G. Installation of CD Changer
G. Installation of CD Changer1. Remove the three (3) transport screws from the CD changer and install them into the holding locations in the back of the CD changer.
2. Set the suspension spring configuration to V (vertical).
3. Affix the three (3) adhesive dust covers from the IDENT-KARTE bag over the transport screw holes in the bottom of the CD changer.
4. Place the IDENT-KARTE in the owners documentation packet.

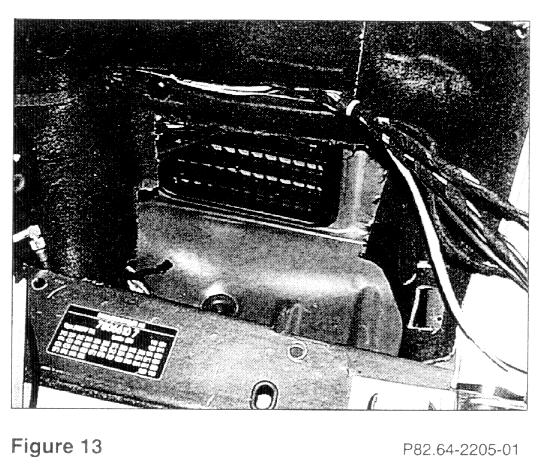

5. Remove the perforated section of the panel liner to provide space for the CD changer chassis (Figure 13).
6. Locate the 3-pole electrical connector and optics in the wheel well.

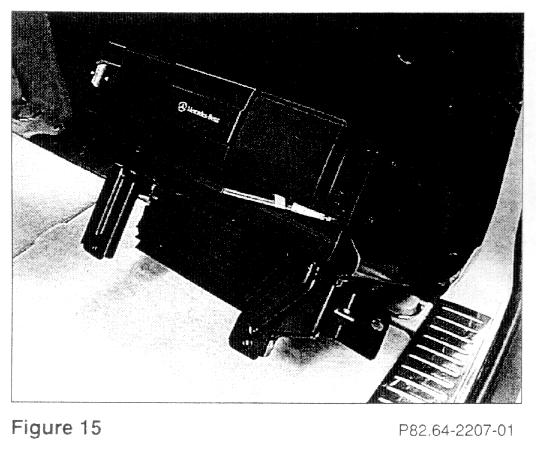

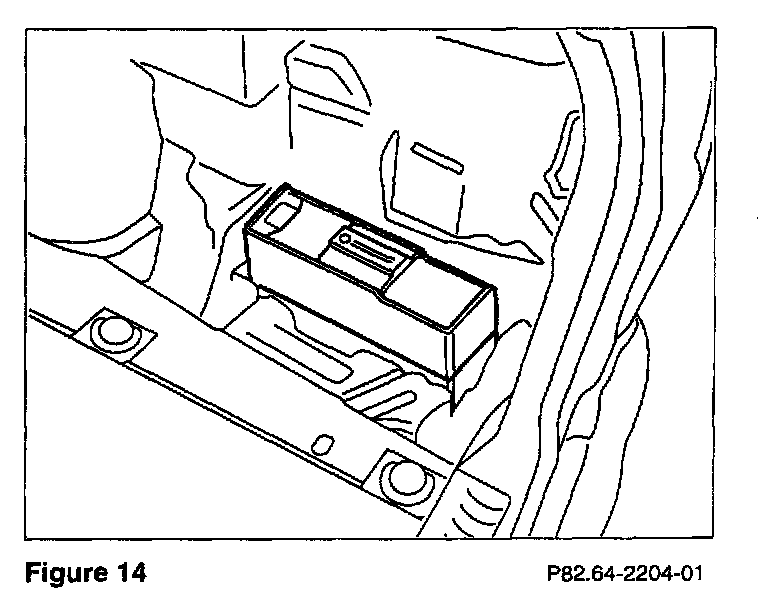

7. Attach the CD changer to the amplifier mounting bracket with four (4) M4 x 5 machine screws (Figure 14 - w/o telephone), (Figure 15 - With telephone).
8. Connect the 3-pole electrical and fiber optics connectors to the back of the CD changer.
9. Reinstall the amplifier bracket assembly with the three (3) previously removed screws.
10. Replace the rear liner panel.
11. Proceed to Section H.
