Radio - Cellular Phone and CD Changer Installation: Overview
Order No.: P-SI-82.64/122ASupersedes: P-SI-82.64/122
Group: 82
Date: March 2000
Revision: Part number correction (boldfaced), page 11/elimination of non-applicable step 2 bullet-point and step 3 of Section H
Subject: Voice activated cellular telephone/CD changer installation
MODEL: 210.265/282 (MY 2000)
WARNING! Disconnecting the negative battery cable is not recommended due to otherwise extensive reprogramming requirements. WIRING HARNESS WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO, COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH FROM ELECTRICAL SHOCK. The ignition and radio power must remain OFF until the final test is performed.
Application Specific D2B Notes:
^ CD changer fiber is installed in the vehicle from the factory.
^ Vehicle is configured from the factory for CD changer only.
^ Telephone and voice recognition fibers are daisy chain links that are included in the installation kit for those accessories.
^ Straight D2B connectors are utilized for the CD and voice recognition module and the angled connector is used for the telephone PSE.
Parts Information (CD Changer):
PARTS INFORMATION
PARTS INFORMATION

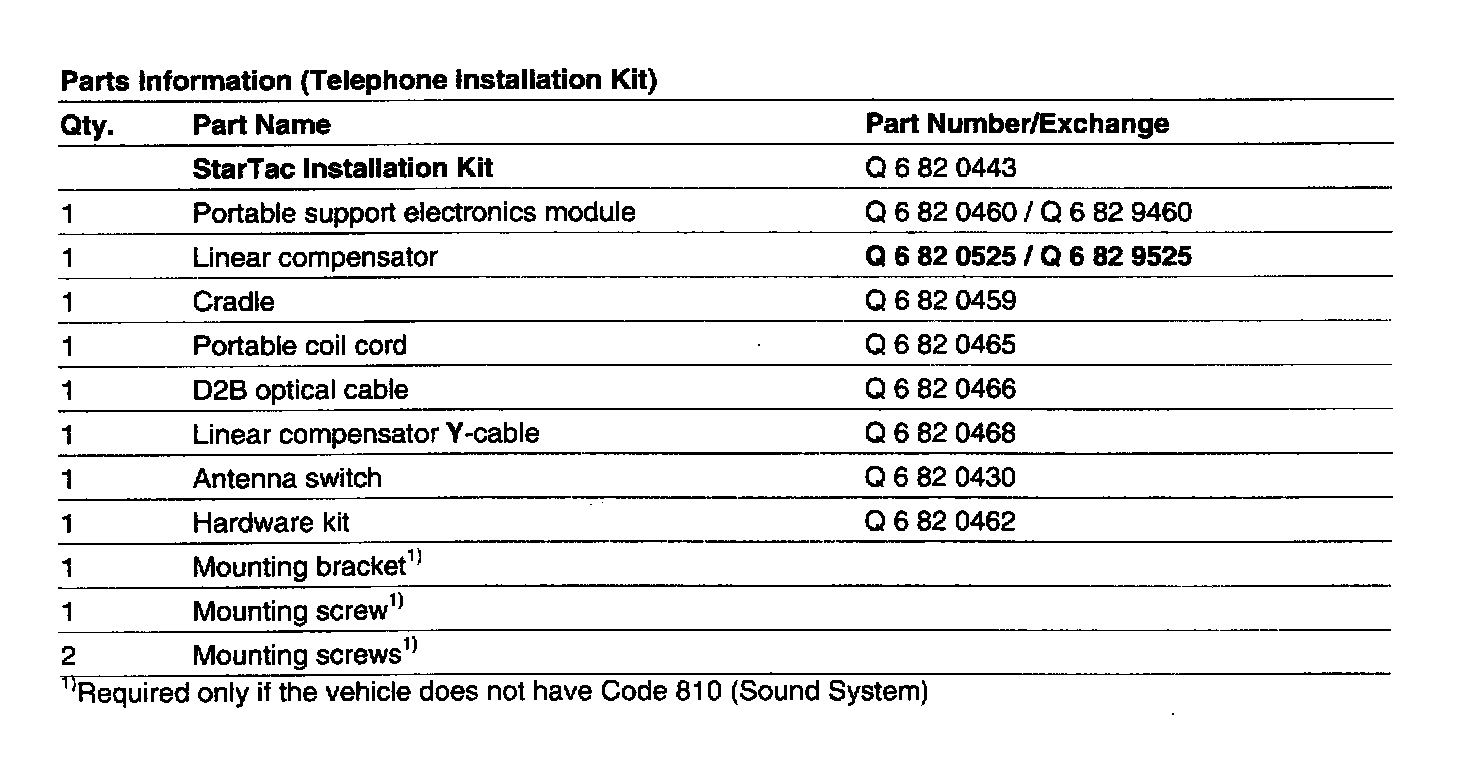

Parts Information (telephone Installation Kit):
PARTS INFORMATION

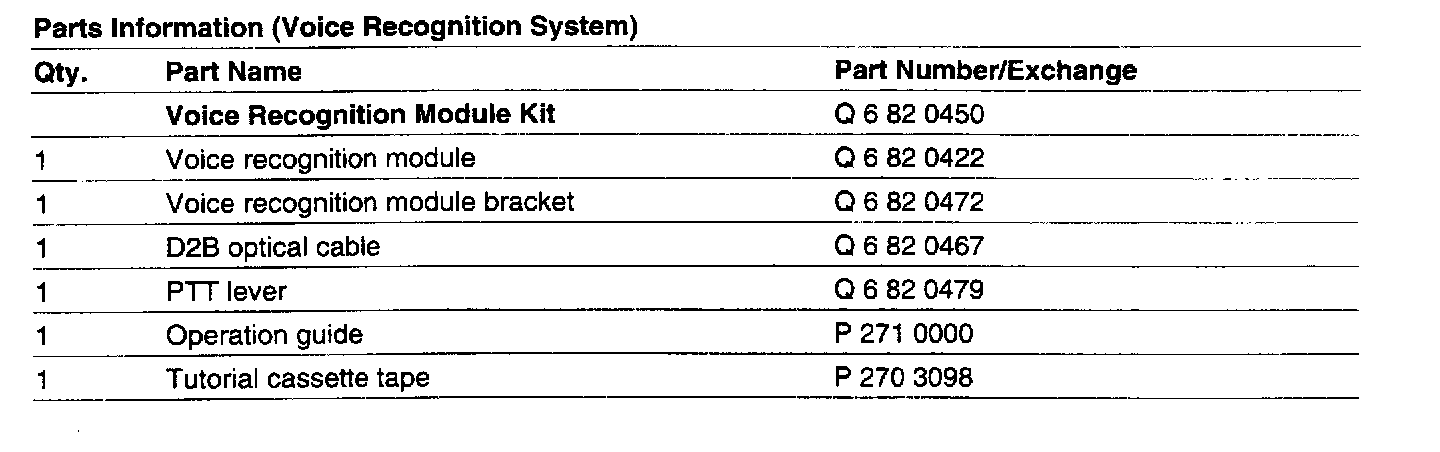

Parts Information (voice Recognition System):
PARTS INFORMATION
