Housing Assembly HVAC: Service and Repair
Component ID

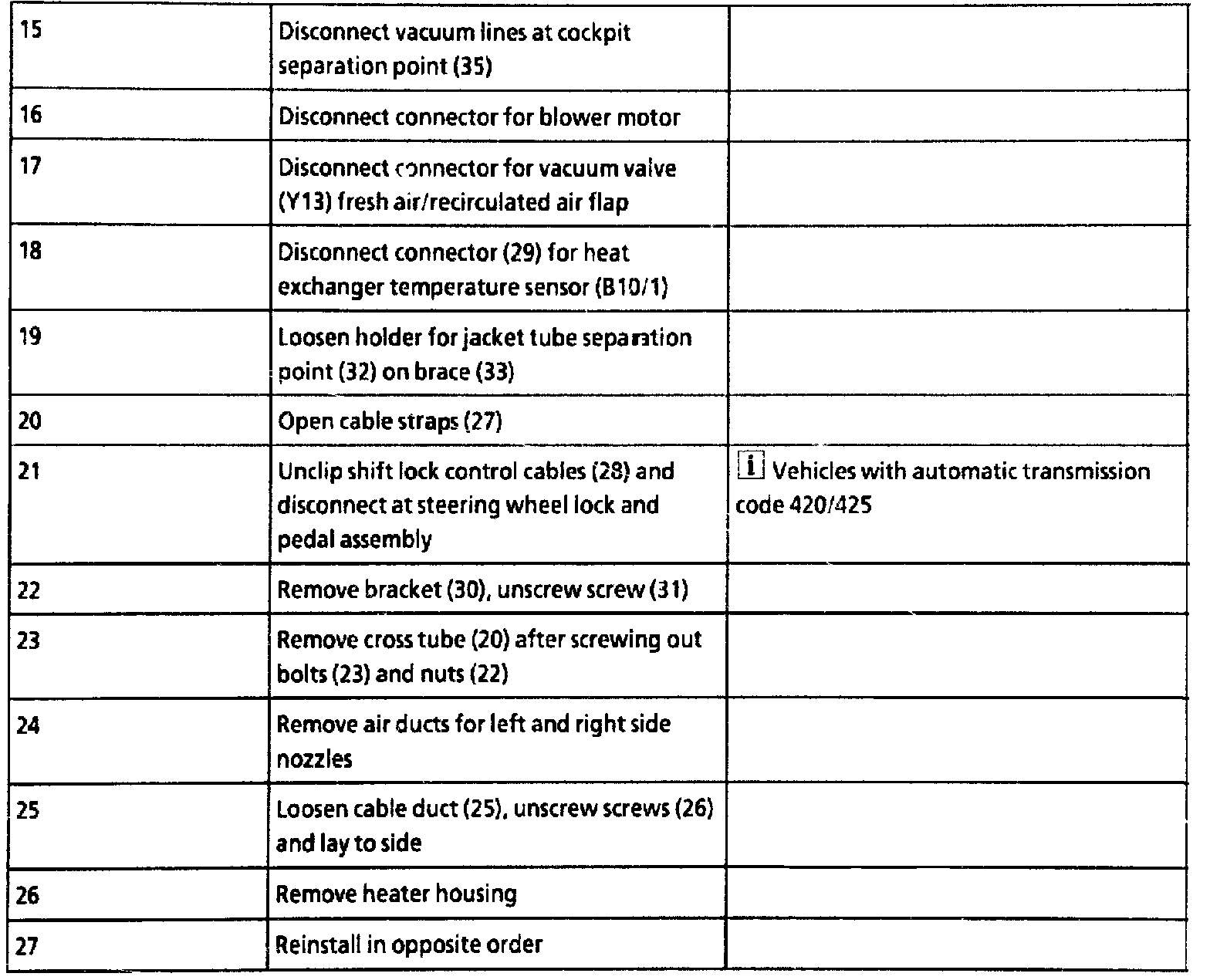

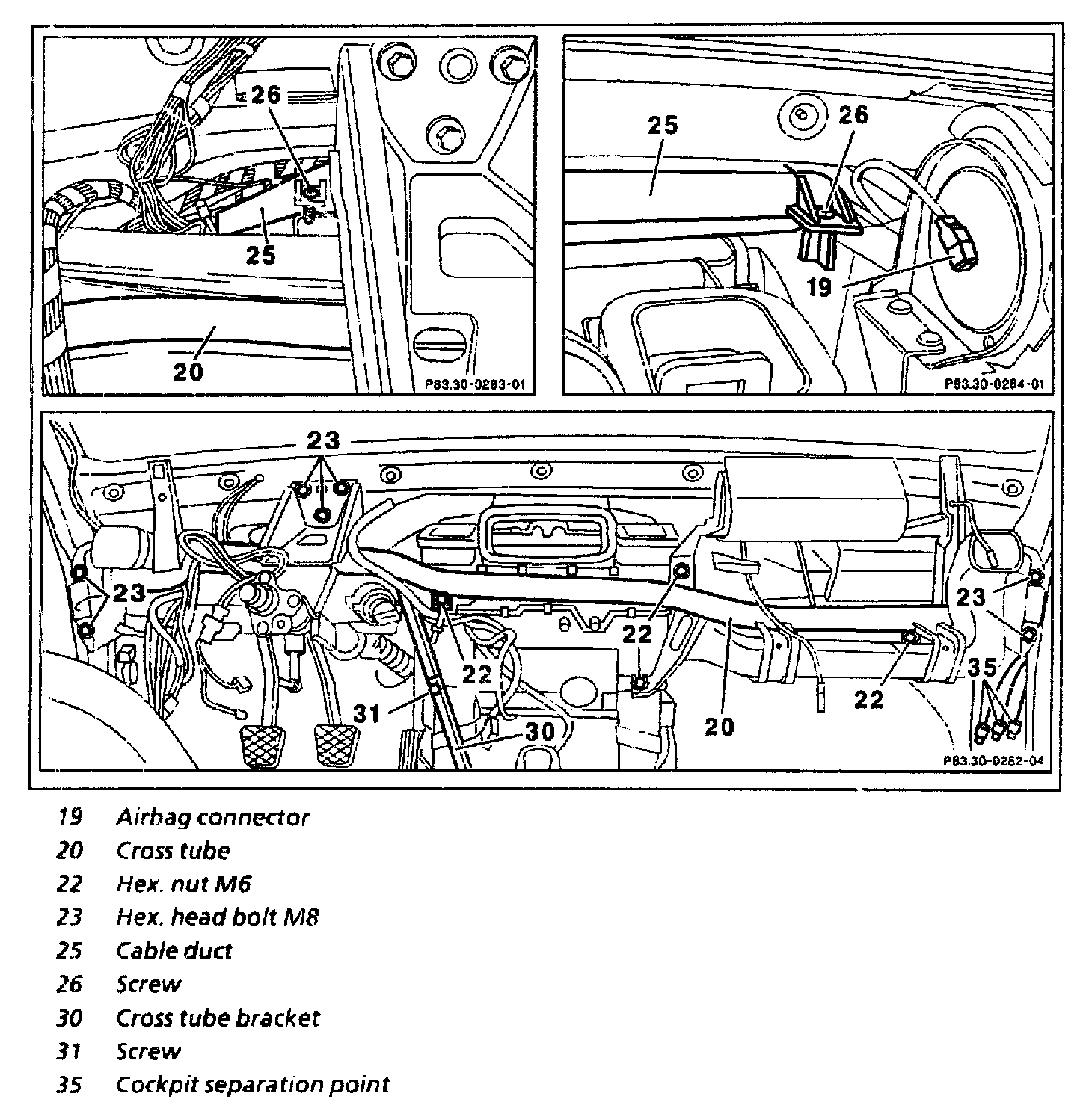

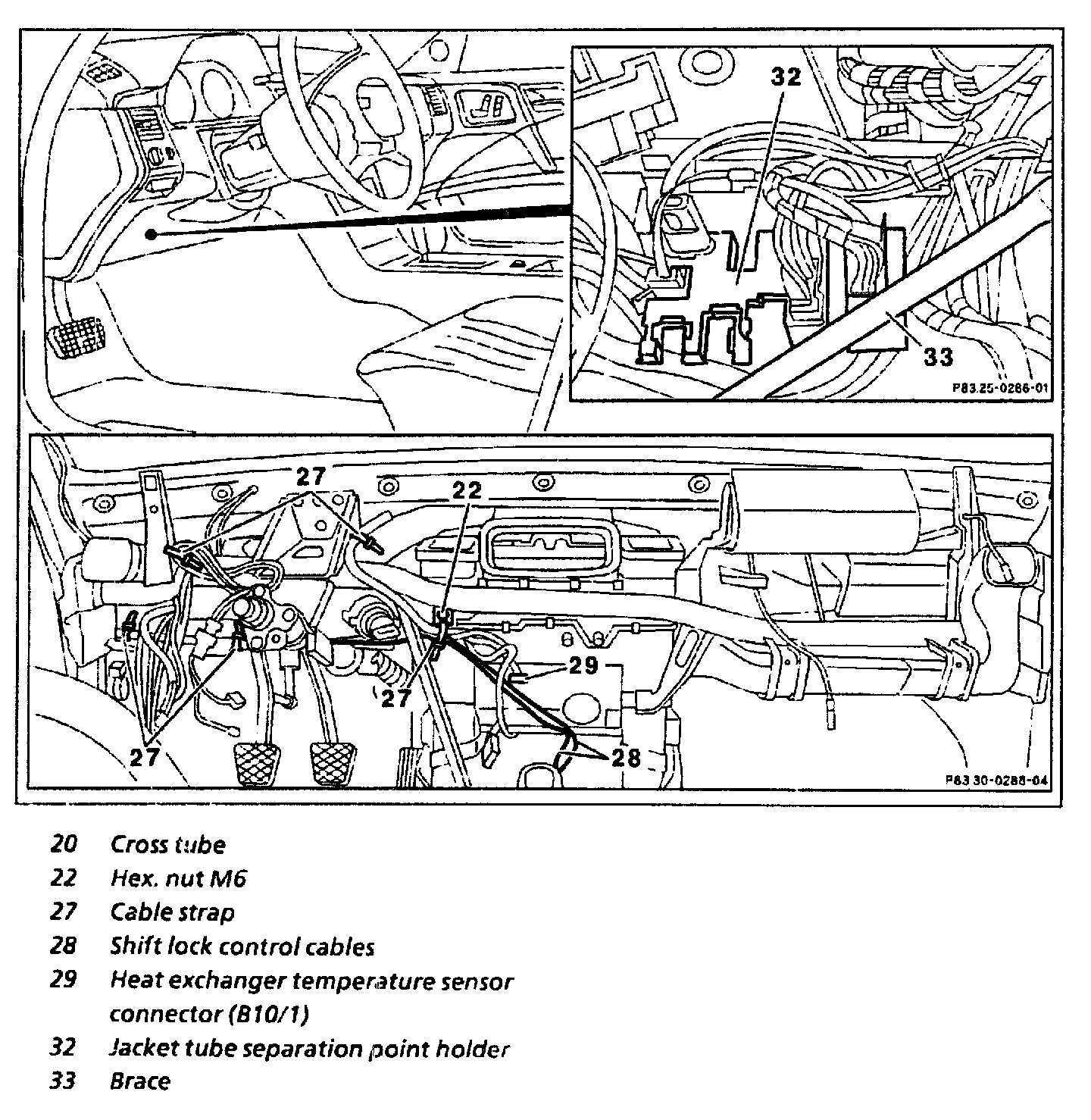

Removal, installation, Part 1 of 2
Removal, installation, Part 2 of 2
