Function Test - Section 11

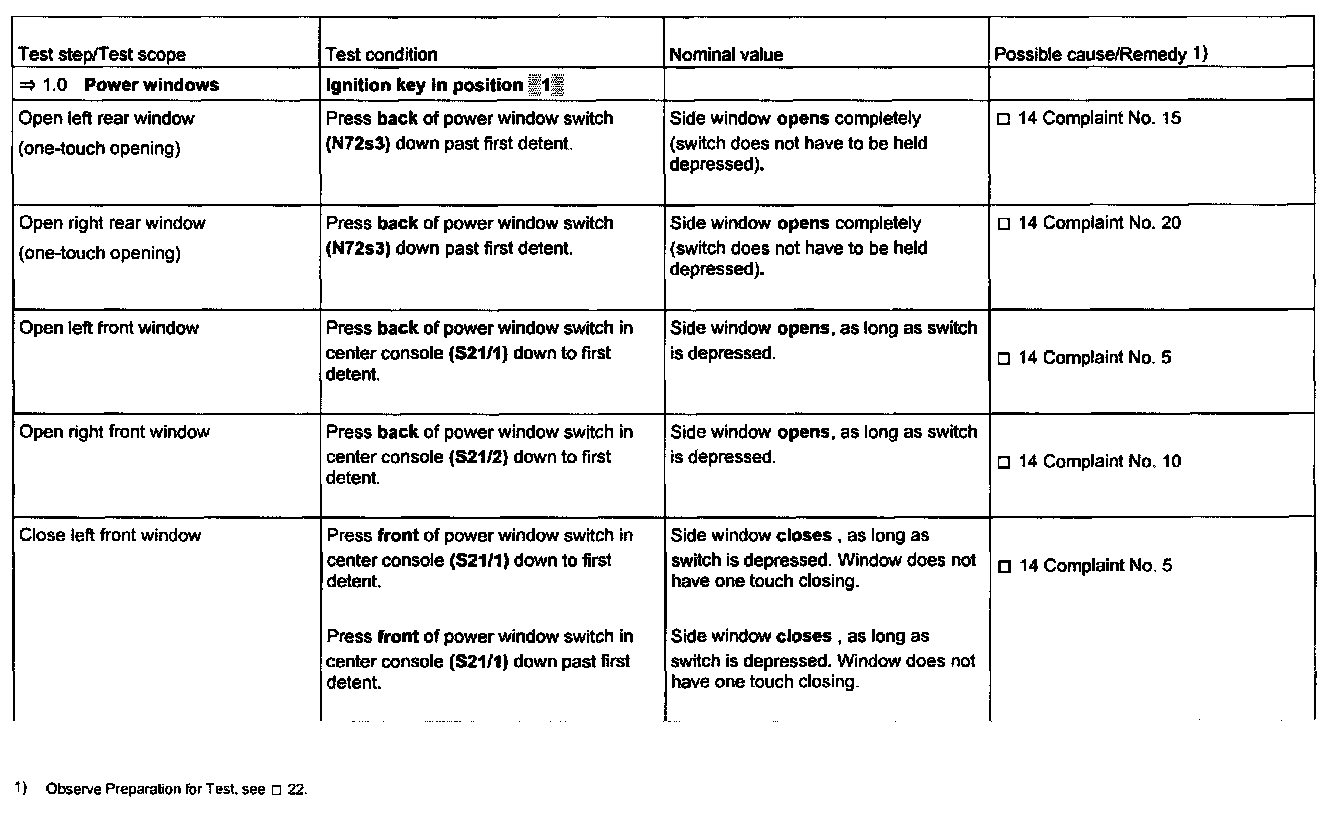

Test Step 1.0:

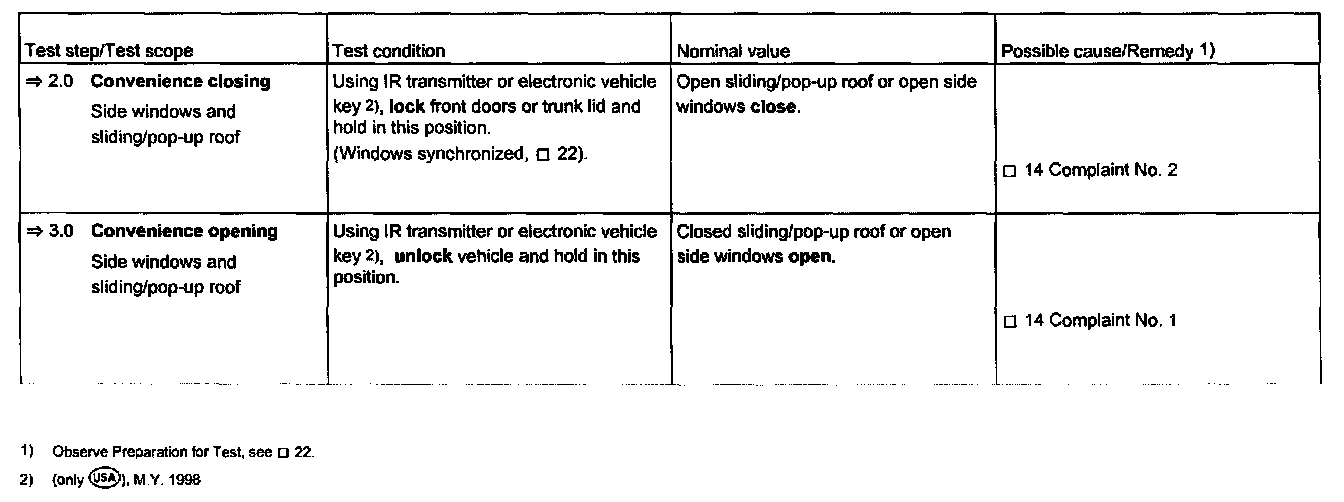

Test Steps 2.0 - 3.0:

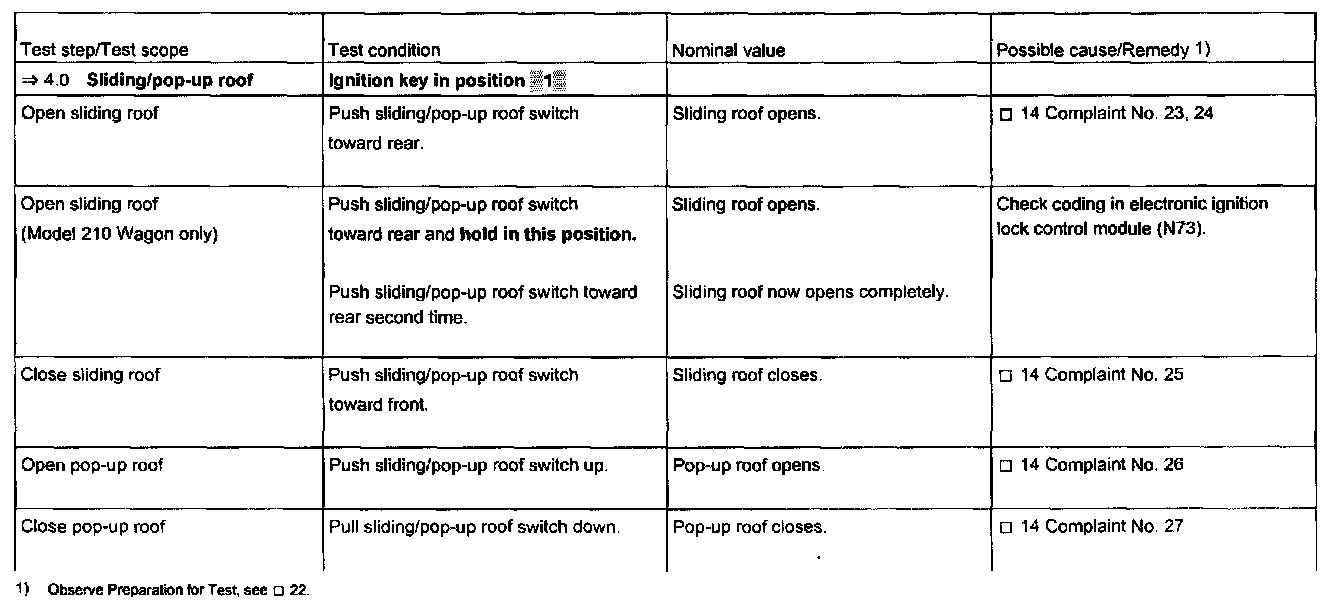

Test Step 4.0:




Test Step 1.0:




Test Step 1.0:




Test Step 1.0:

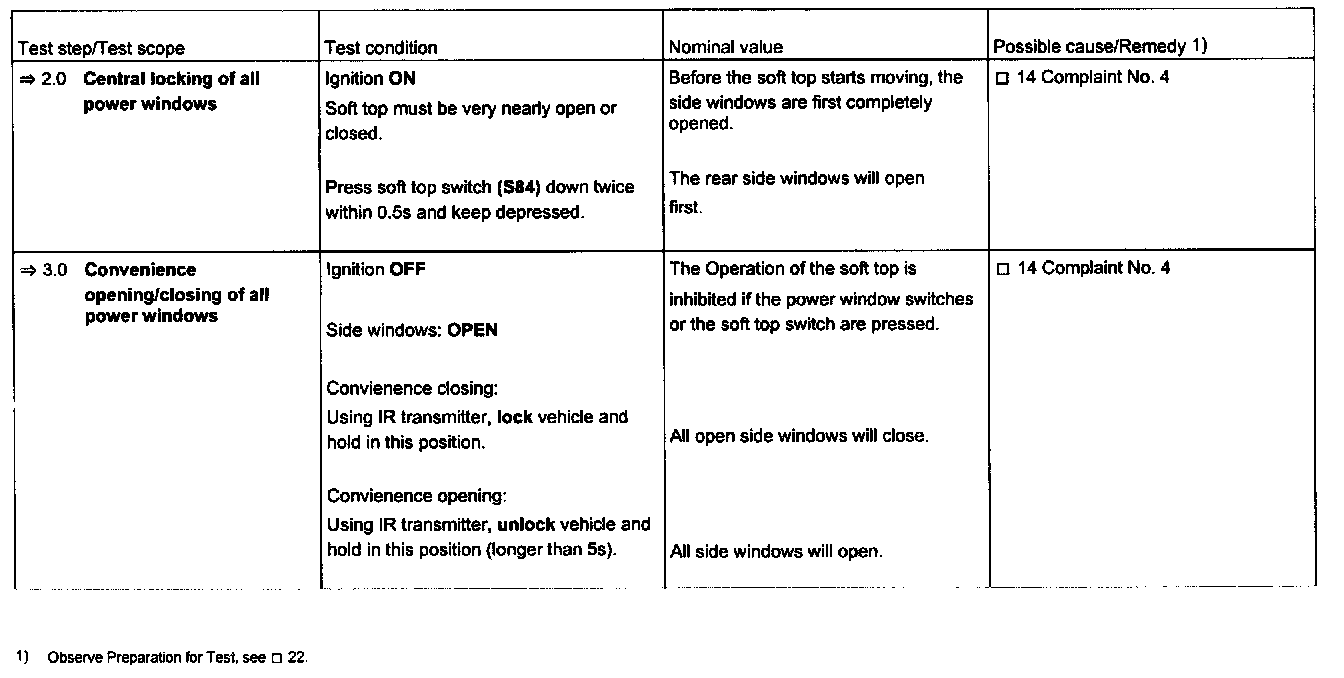

Test Step 2.0 - 3.0:
