Removal and Replacement

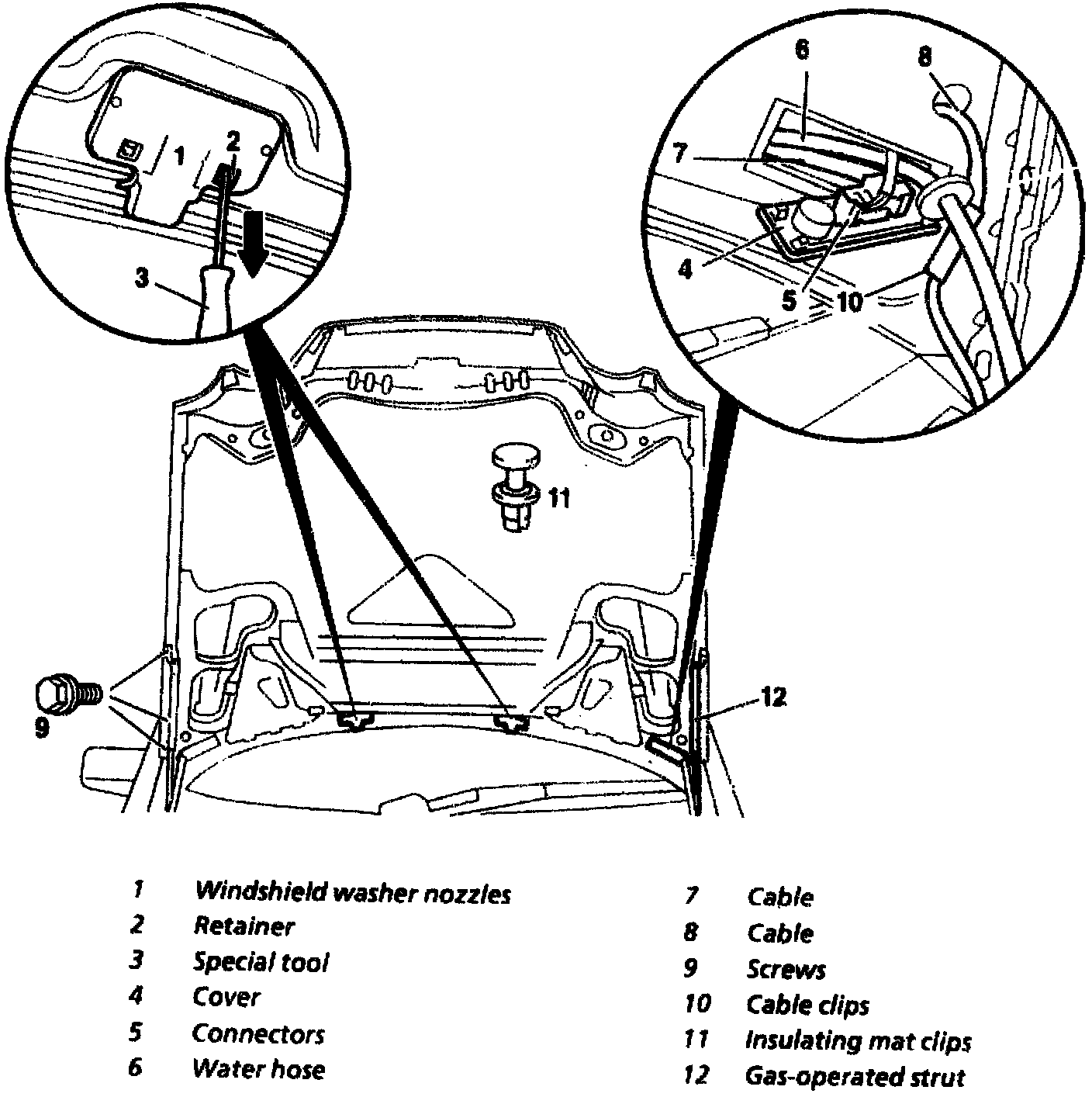

AR88.40-P-3000F Remove/Install Engine Hood












Tightening Specifications
Screws (9) on engine hood: 10 Nm
