Exterior Lights W/O Xenon (Part 2) PE82.10-U-2000EB
Exterior Lights W/O Xenon (Part 2) PE82.10-U-2000EB

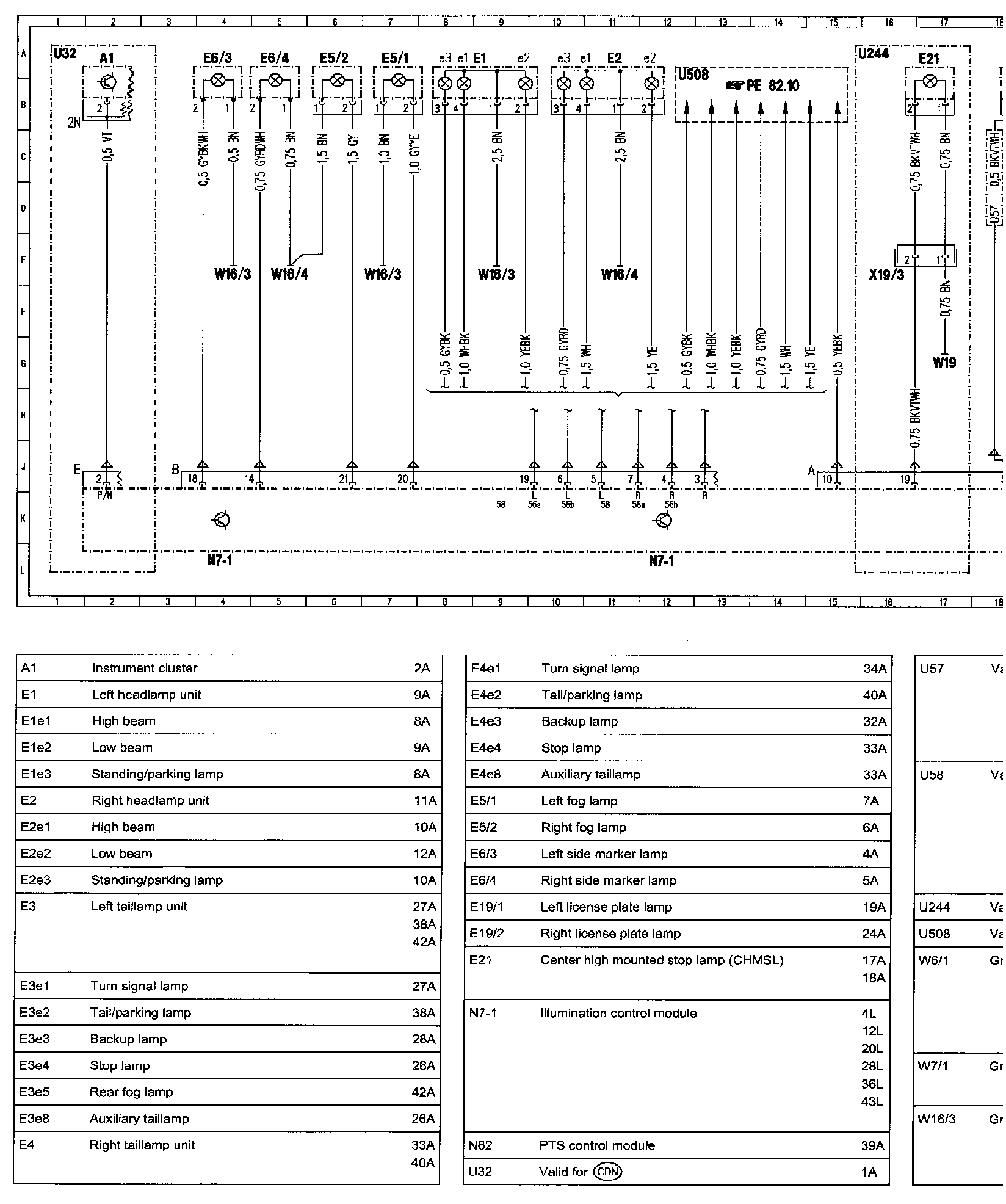

Part 2, Front/Rear Light Units Without Xenon Headlamps
73,Z�~,ZPE82.10-U-2000-99EB:
