Displaying Transmission Information

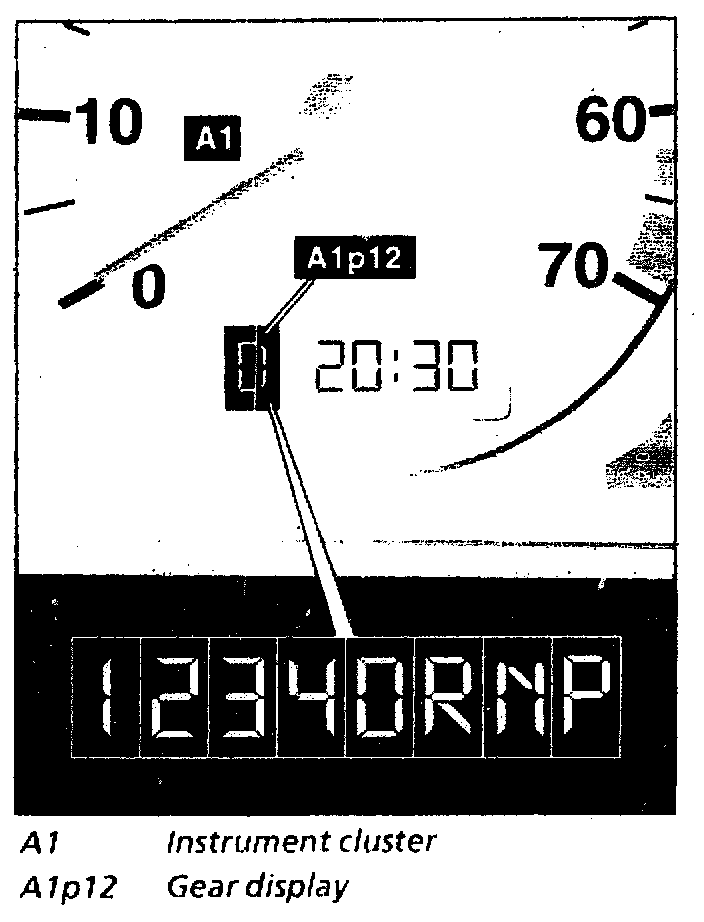

Gear Display (A1p12):

- The gear display is designed as a liquid crystal display.
- The shift range (1-4) selected or selector lever positions (D-P) and driving program selected (W or S) are displayed. Updating the driving program displayed can take up to one minute.
- The data required comes from the ETC control module (N15/3) via the CAN/engine compartment.


NOTE: The display panel remains dark if the CAN signals are defective.
