Dismantle/Assemble Oil Pump

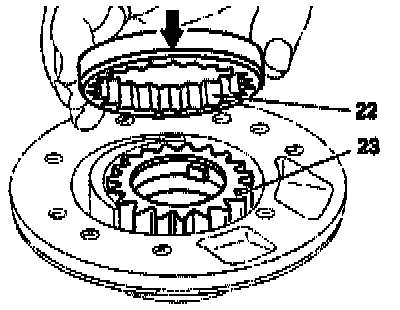

1. Remove pump gears (22 and 23) from pump housing

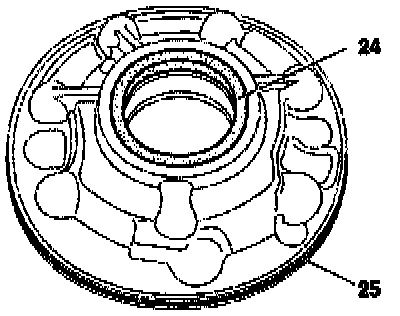

2. Check radial seal ring (24), replace if necessary
3. Replace O-ring (25)
4. Lubricate pump gears with suitable ATF and place in pump housing
- Insert pump gear (22) so that chamfer (arrow) points towards pump housing
