Instrument Cluster / Carrier: Application and ID

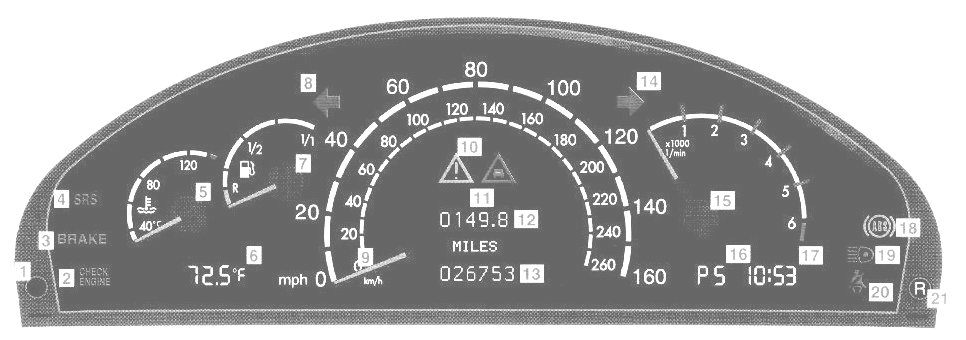

Instrument Cluster:

Instrument Cluster:

1 Knob for instrument cluster illumination.
2 Engine malfunction indicator lamp.
3 Brake fluid low, parking brake engaged.
4 Supplemental Restraint System (SRS) malfunction indicator lamp.
5 Coolant temperature gauge.
6 Outside temperature indicator.
7 Fuel gauge with reserve and fuel cap placement warning lamp.
8 Left turn signal indicator lamp.
9 Speedometer.
10 ESP (Electronic Stability Program) warning lamp, system is adjusting to road conditions
11 Multifunction display, Instrument cluster display.
12 Trip odometer.
13 Main odometer.
14 Right turn signal indicator lamp.
15 Tachometer.
16 Gear range indicator display.
17 Digital clock.
18 Antilock Brake System (ABS) malfunction indicator lamp.
19 High beam headlamp indicator.
20 Fasten seat belts.
21 Reset button "R".
