GF82.70-P-4103-01A Hands-Free System Loudspeaker, Location

GF82.70-P-4103-01A Hands-Free System Loudspeaker, Location
- with CODE (274) MB D-network telephone
- with CODE (312) D-net portable cellular telephone
- with CODE (313) D-network "handy" telephone
- with CODE (314) "Standard" D-network telephone
- with CODE (316) MB D-net telephone (D2B)

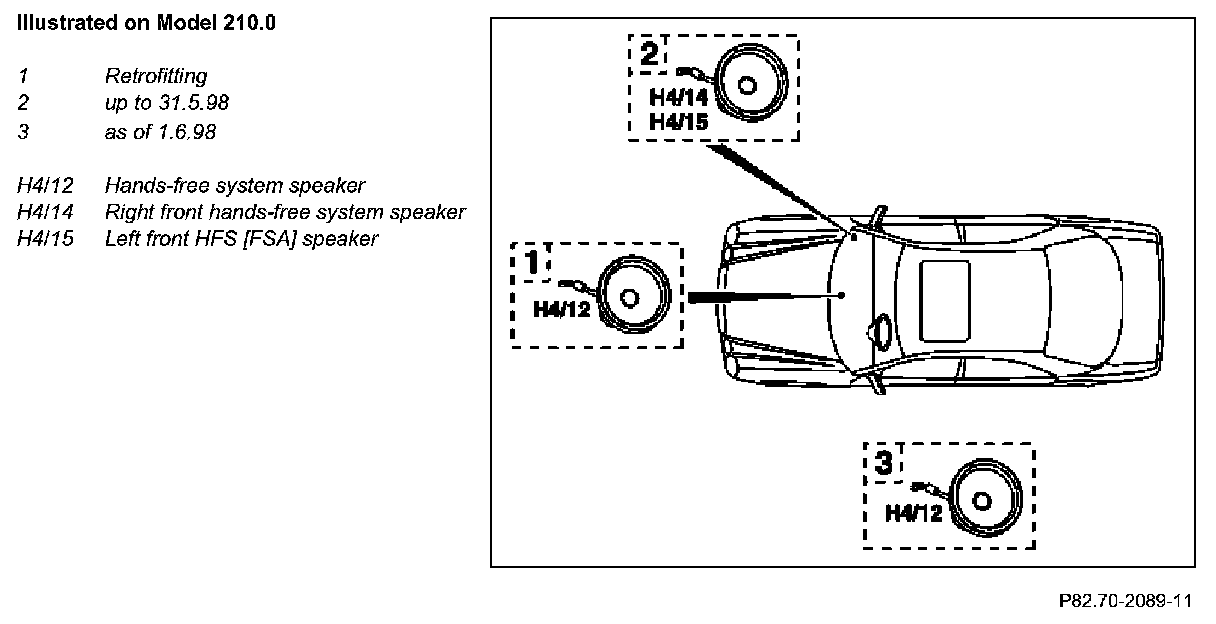

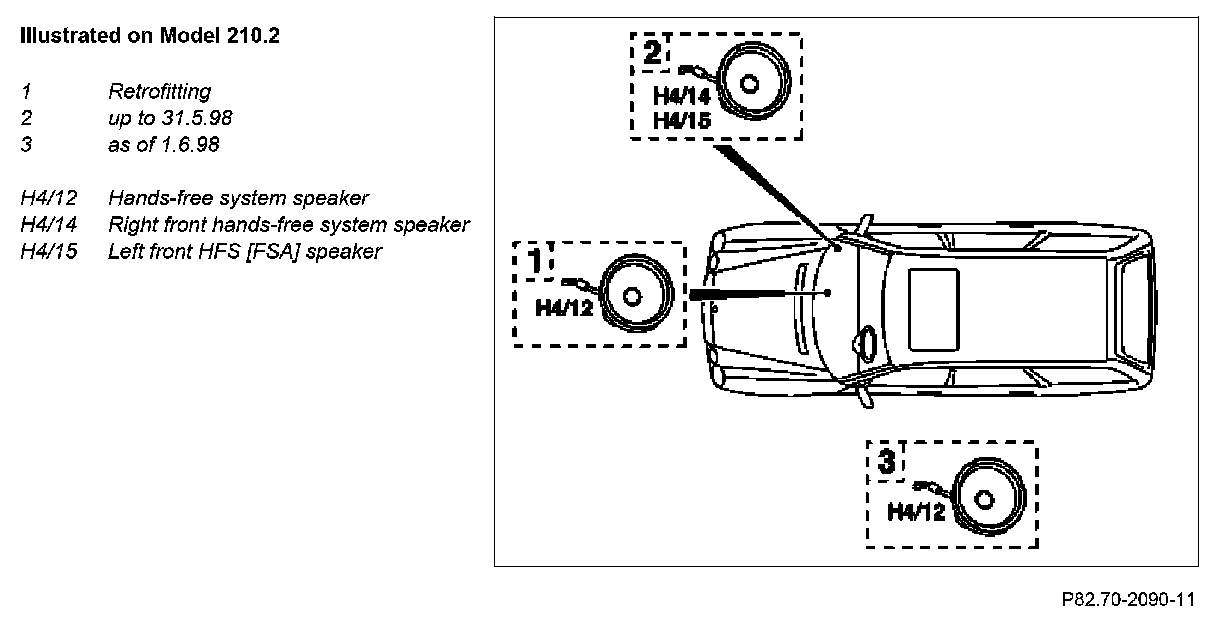

As of 1.6.98 loudspeaker output is accomplished via the entire loudspeaker system.

Loudspeaker output is accomplished via the entire loudspeaker system.

Model 140
The speakers for the hands-free system are located on the left front and right front instrument panel.

Model 203 and model 215
All speakers of the speaker system are used for the voice output in the vehicle.

Model 168
The right front hands-free system speaker (H4/12) in the front passenger footwell is actuated to accomplish the voice output.

Model 202 and Model 208
The speakers for the hands-free system are retrofitted and are located in the center console as well as in the right front passenger footwell.

Model 202 only
In addition, the radio and telephone hands-free system dual coil speaker (H4/13) is installed on the rear shelf.
