Remove/Install Glove Compartment
Remove/Install Glove Compartment

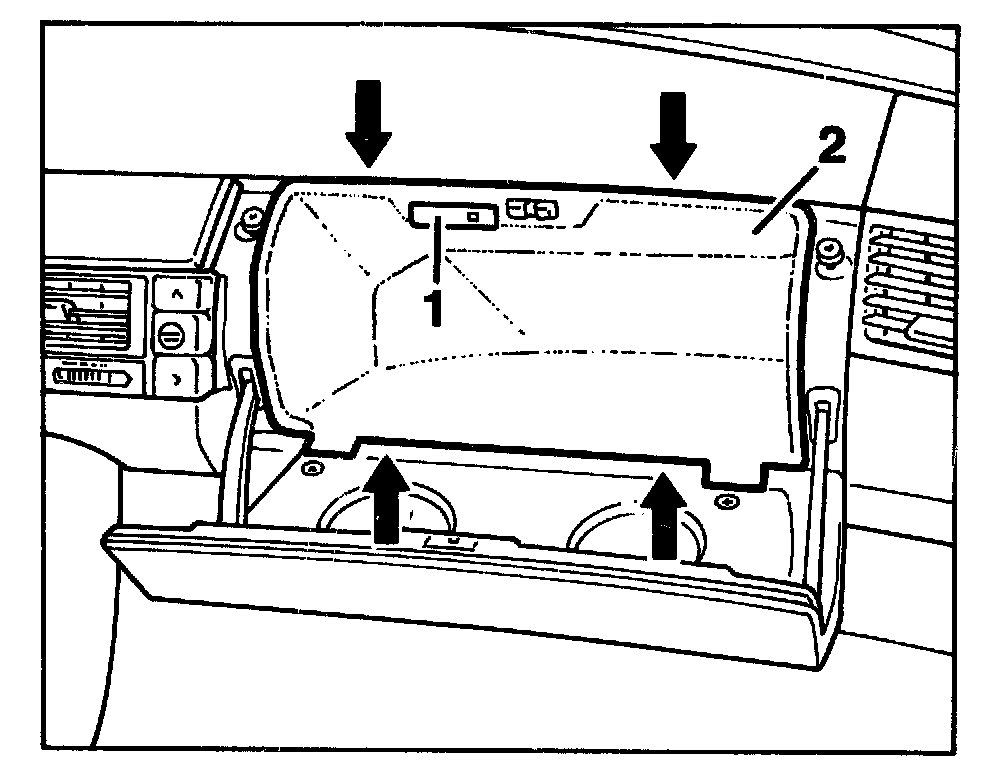

Glove compartment light (1)
Remove and disconnect plug.
Glove compartment
(2)
Carefully unhook (arrows) and pull out.
Install in reverse order.
