Remove/Install Glove Compartment Cover

Preliminary jobs:
Glove compartment removed. Remove/Install Glove Compartment

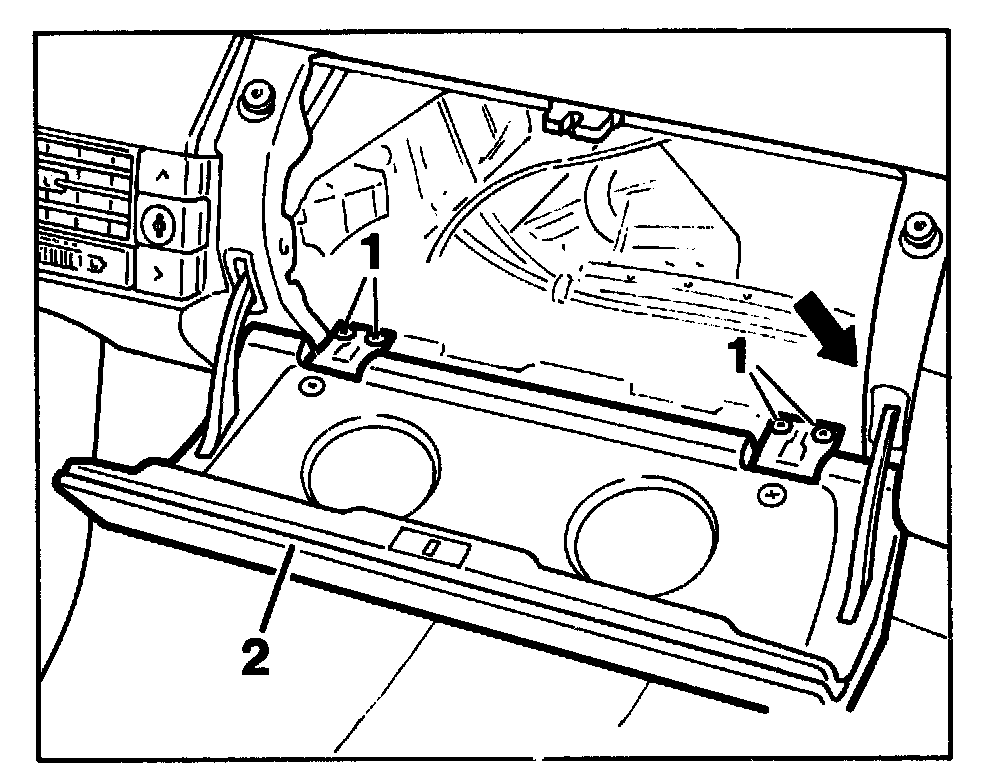

Plastic chain for damping device
Unhook at retaining bracket (arrow).

Screws (1) on hinge
Screw out (4 each).

Glove compartment cover (2)
Remove, use lever to pry retaining bracket off of instrument panel.

Install in reverse order.
