Heated Seats (HS) PE91.30-U-2000YA
Heated Seats (HS) PE91.30-U-2000YA
Heated Seats
(
HS
)
���VPE91.30-U-2000YA:

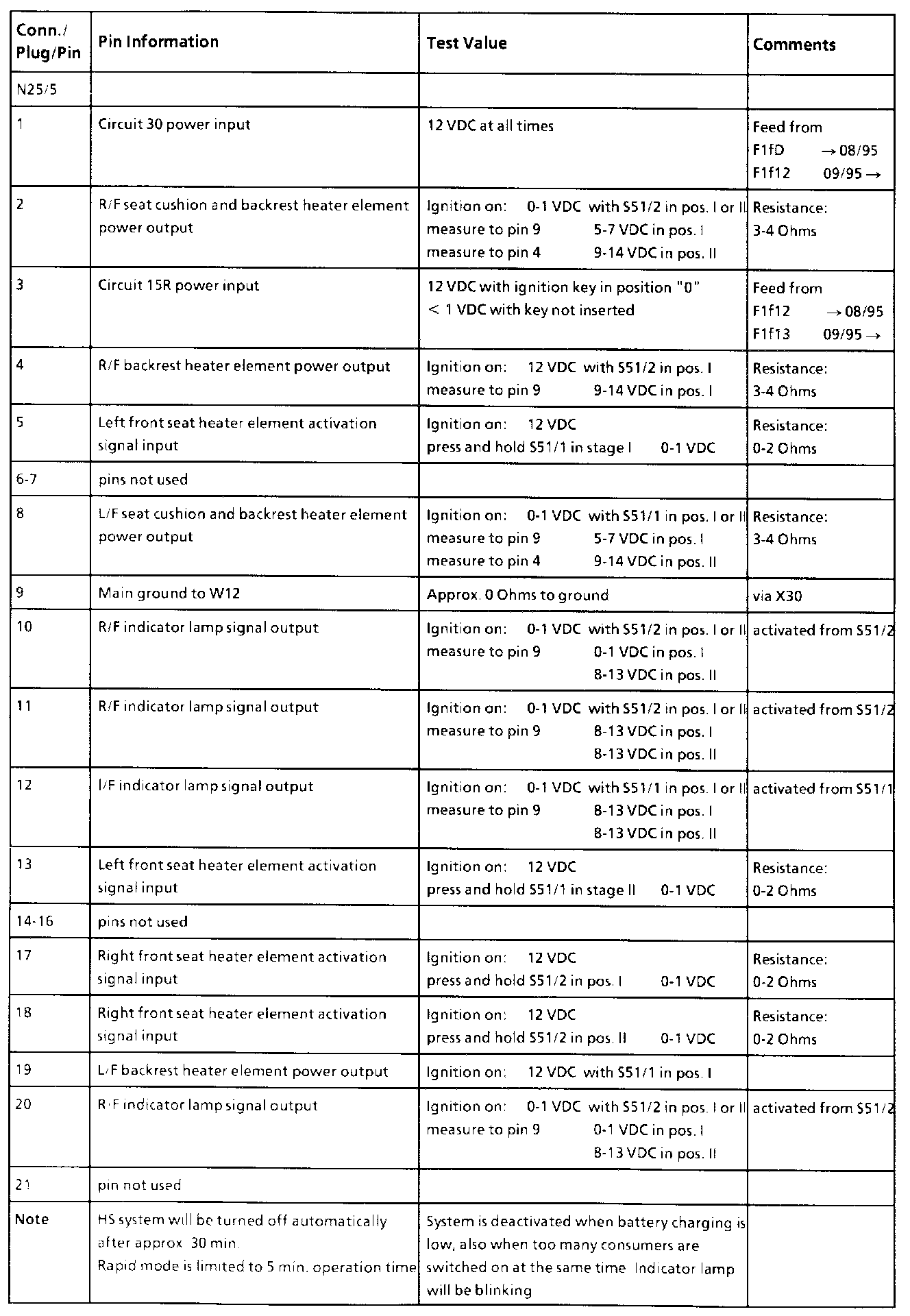

Connector Assignment:
Pin Information:
