Electronic Stability Program (ESP)
T�%���%^ �%PE42.45-U-2000YB:
Connector Assignment:

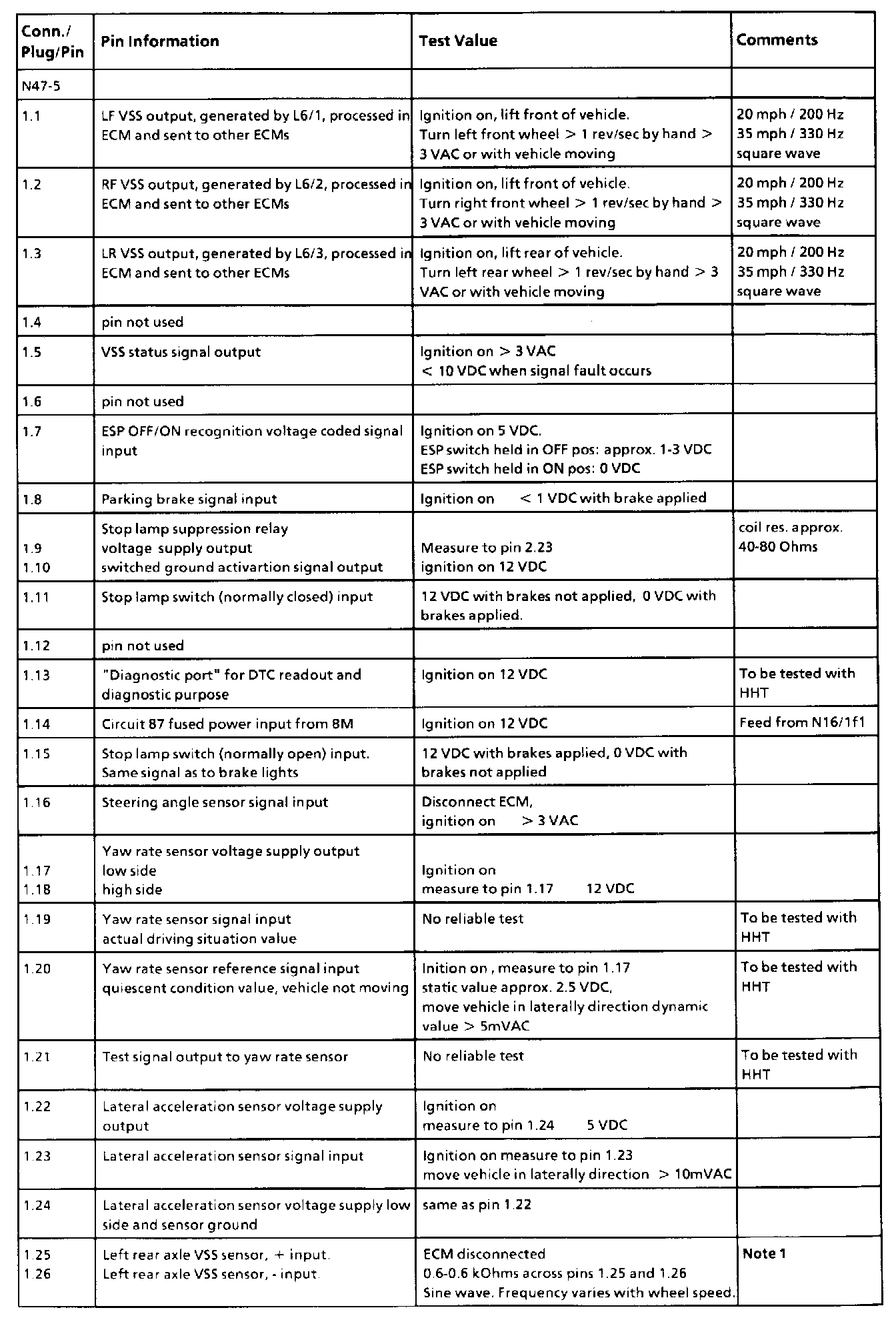

Pin Information, Part 1:

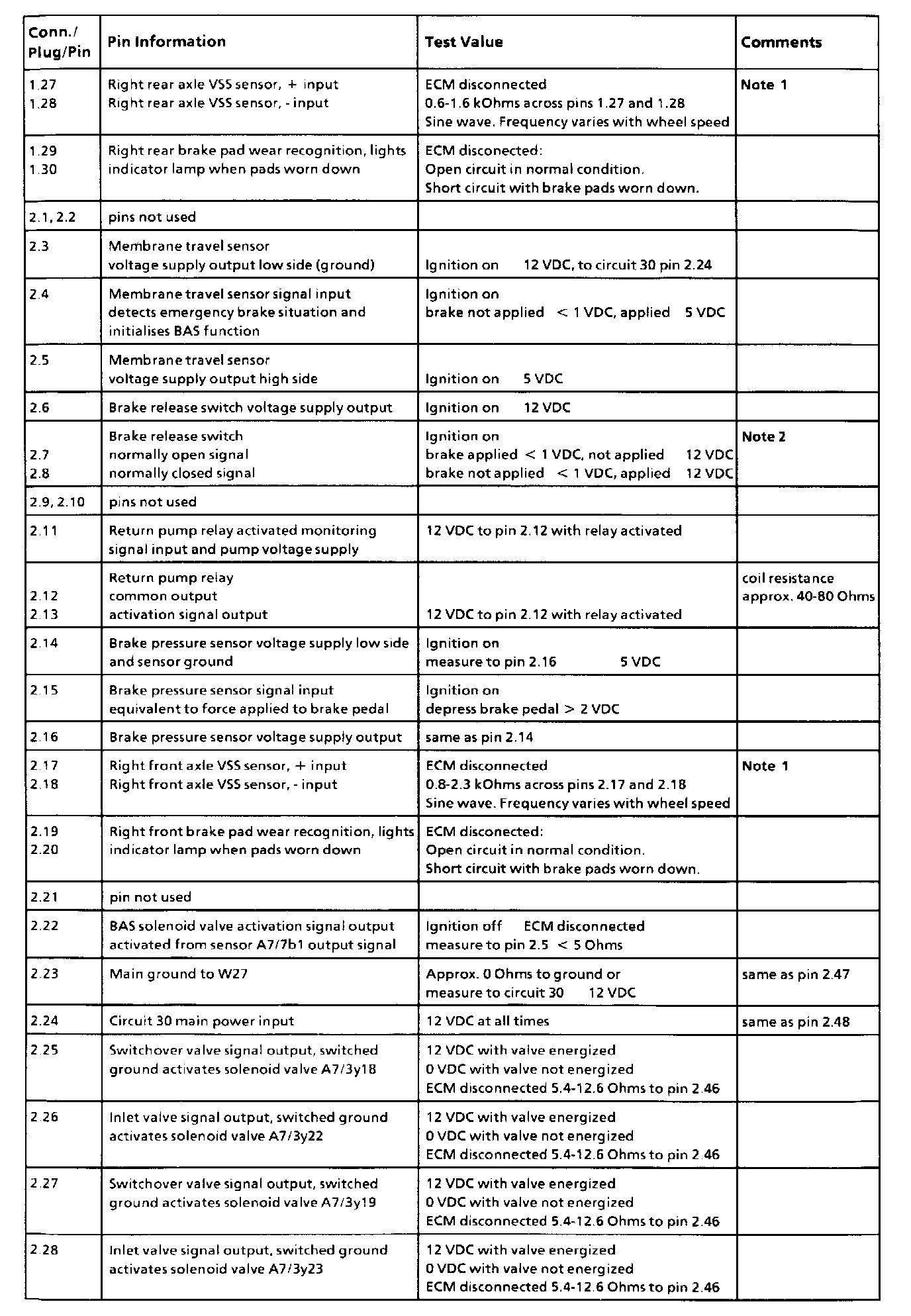

Pin Information, Part 2:

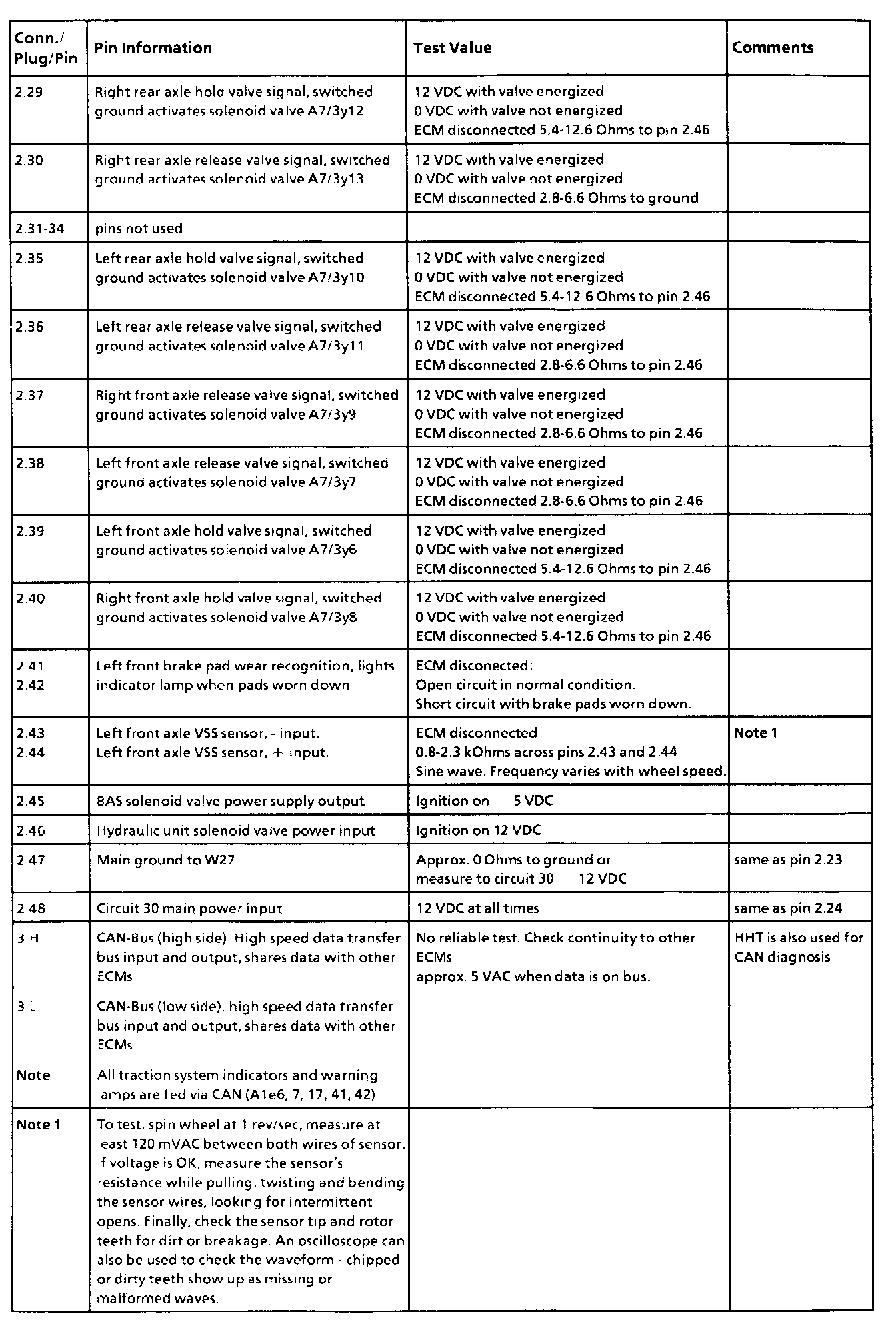

Pin Information, Part 3:

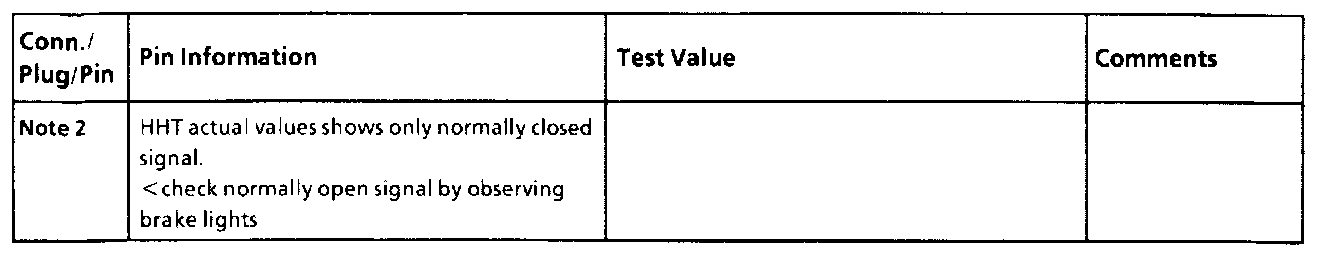

Pin Information, Part 4:
