Heating and Air Conditioning

Air Conditioning (Automatic) PE83.40-U-2000YC

Wiring Diagram

>�3ߠ�3R��3PE83.40-U-2000YC:

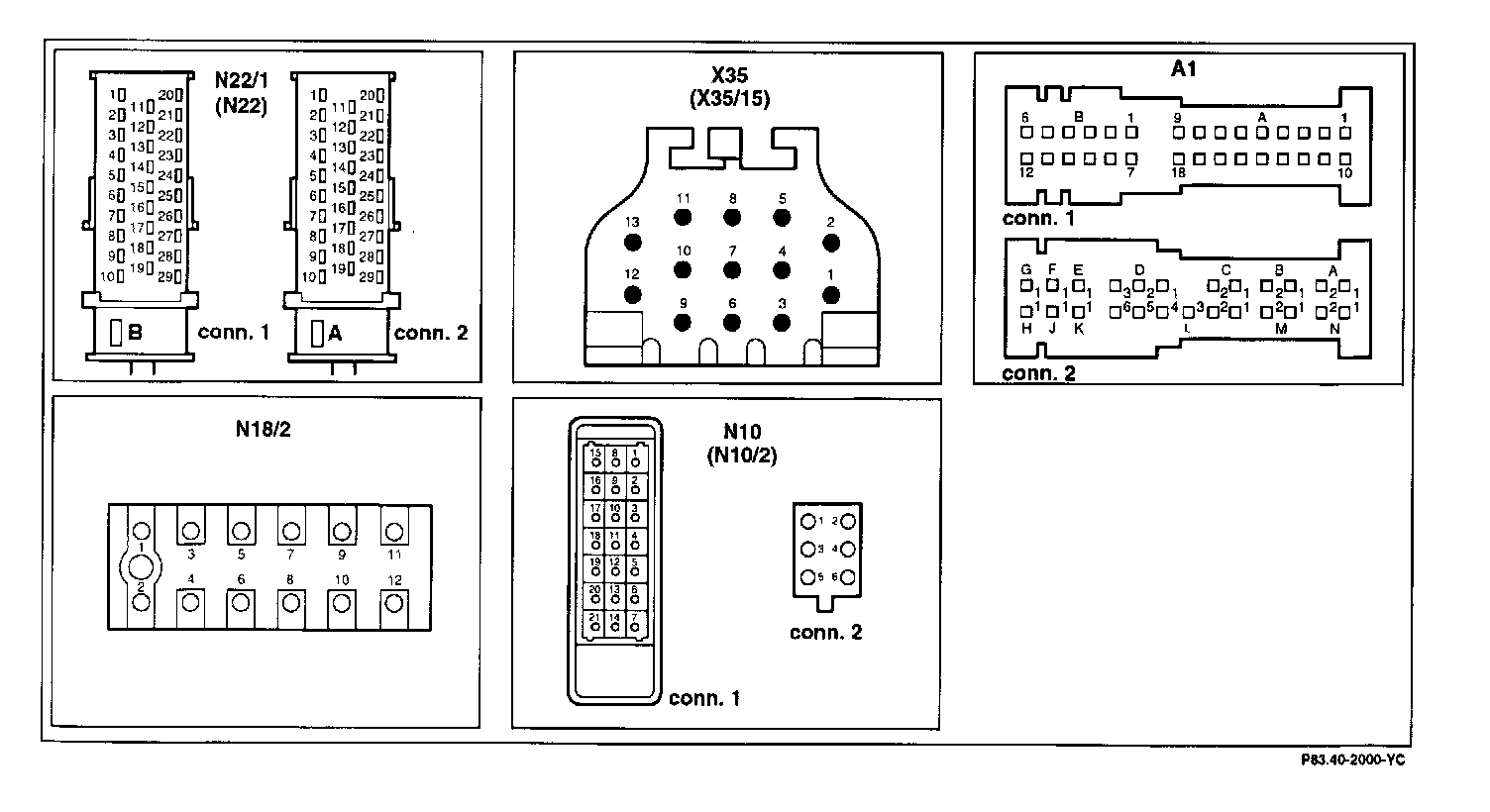

Connector Assignment:

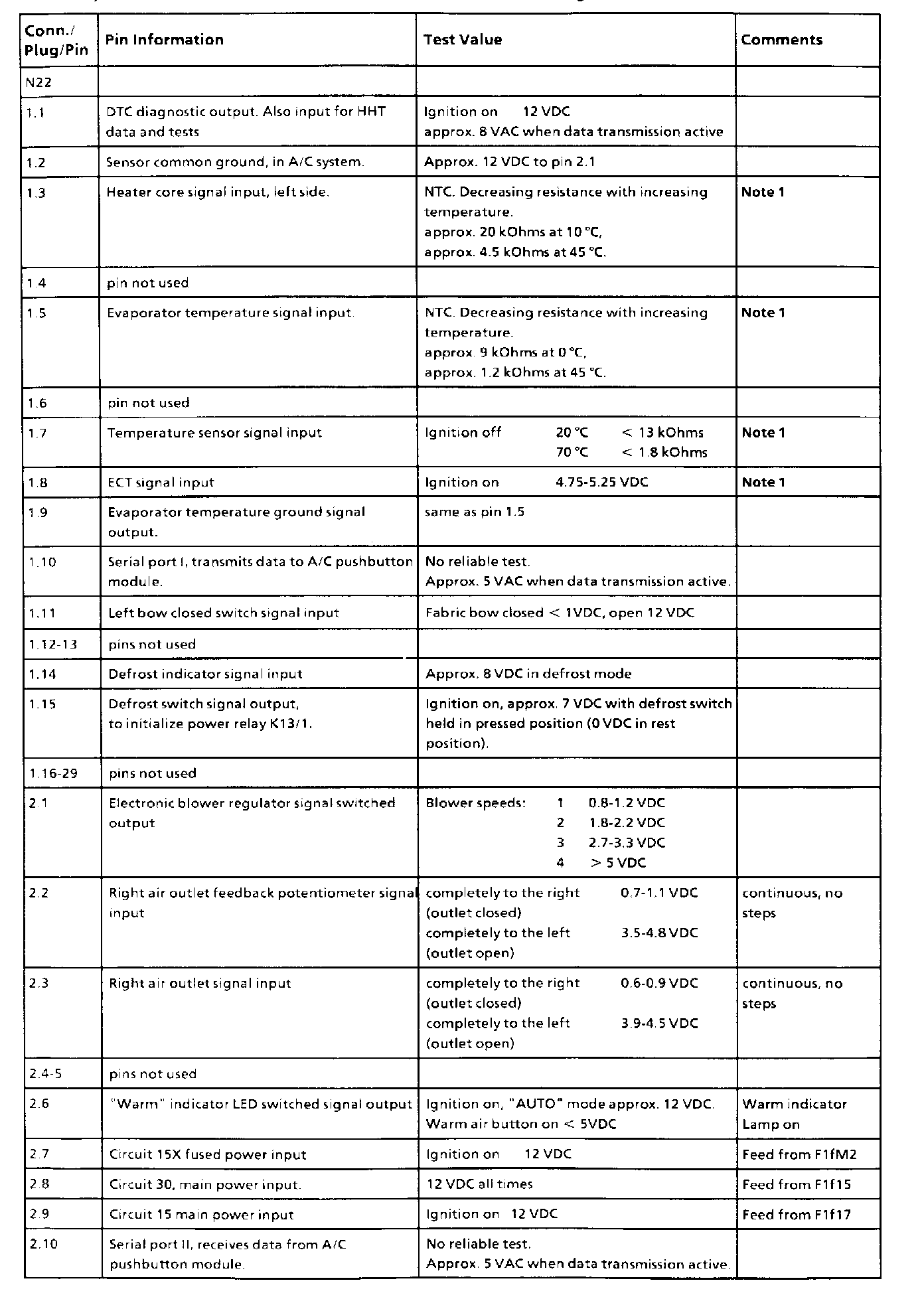

Pin Information, Part 1:

Pin Information, Part 2:

All values measure to ground unless otherwise noted.
