Interior Lights PE82.20-U-2000YF
Interior Lights PE82.20-U-2000YF
Interior Lights
- with non-variable instrument illumination

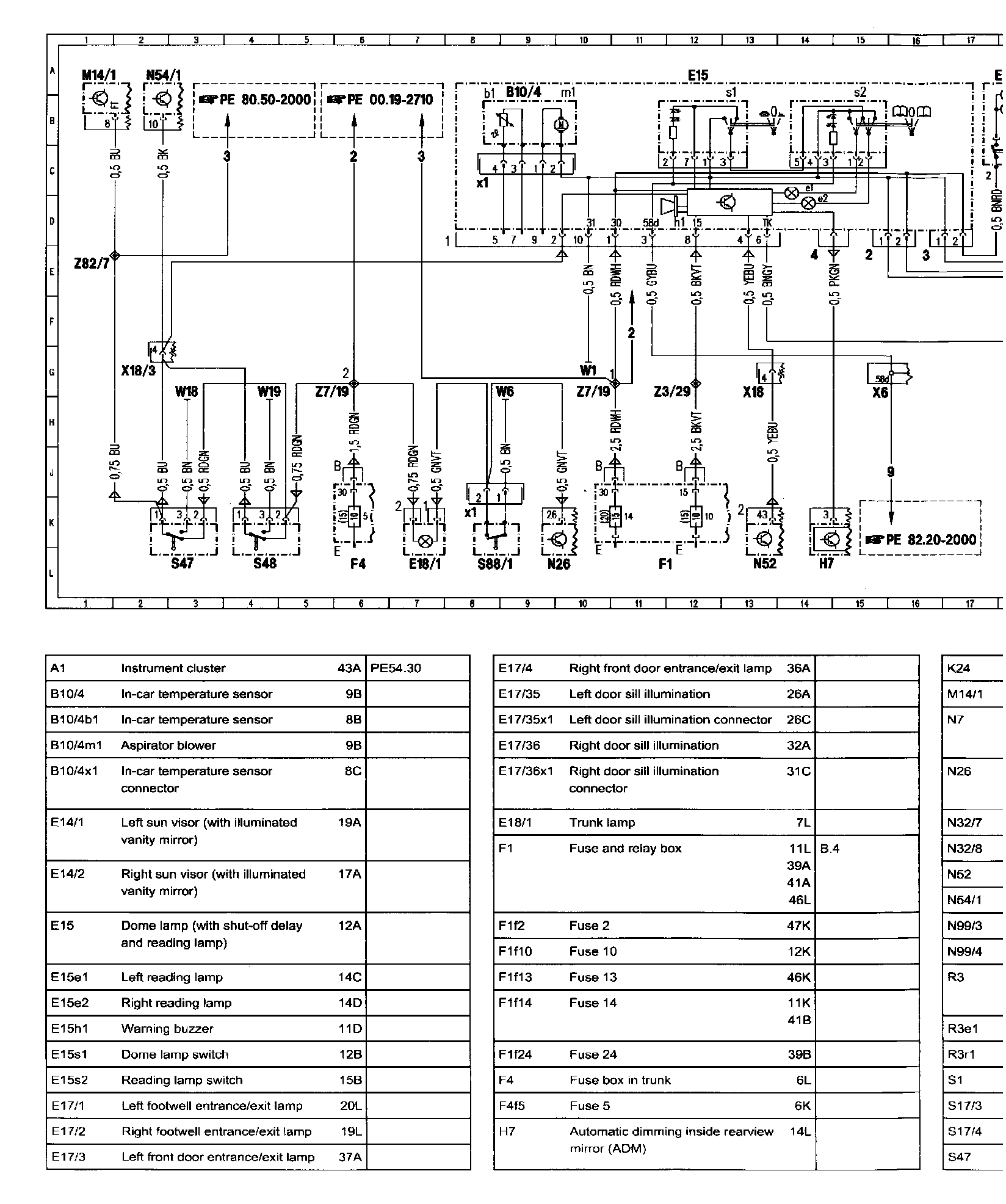

�J>Z��>ZB�>ZWiring Diagram:

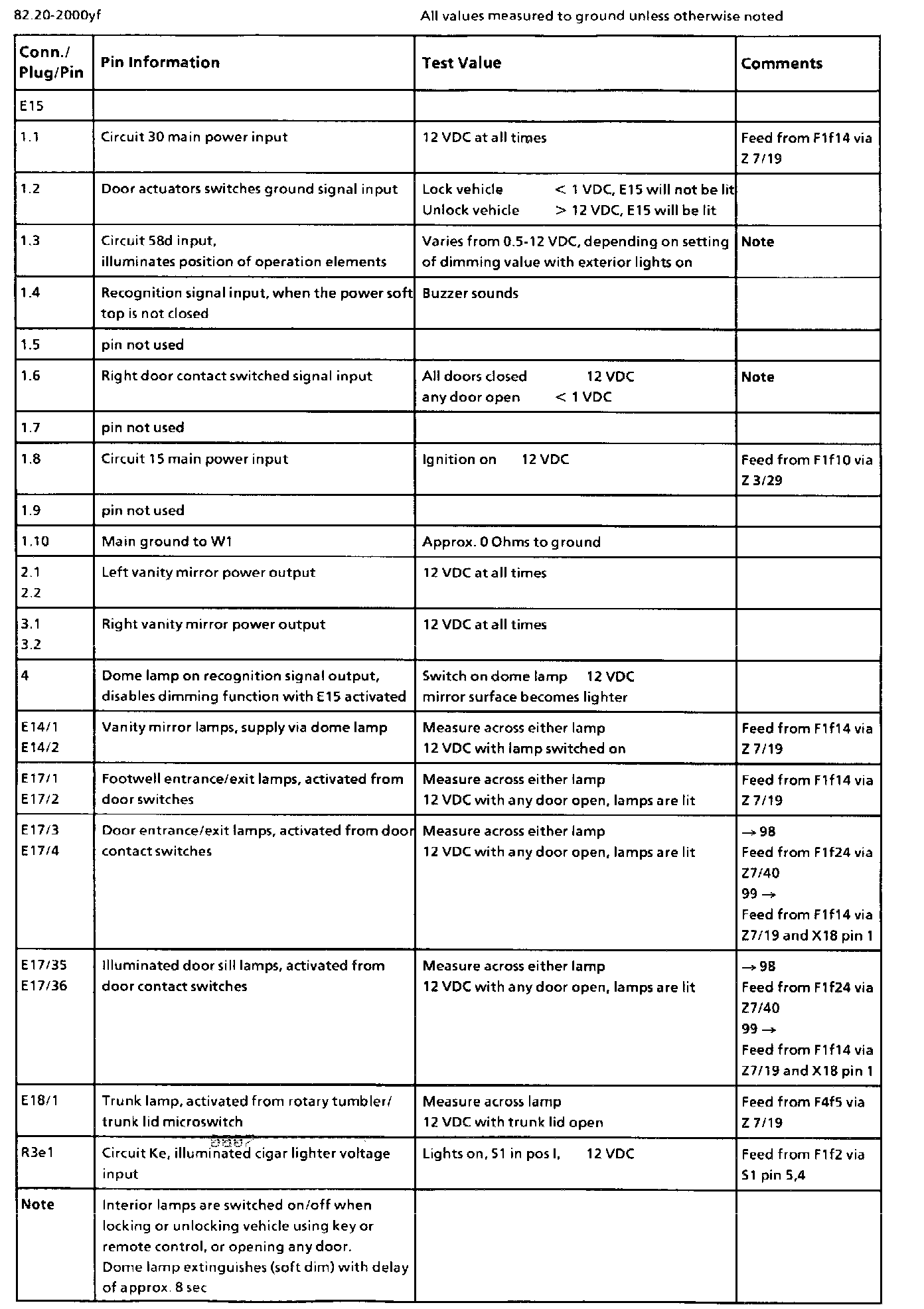

Pin Information:

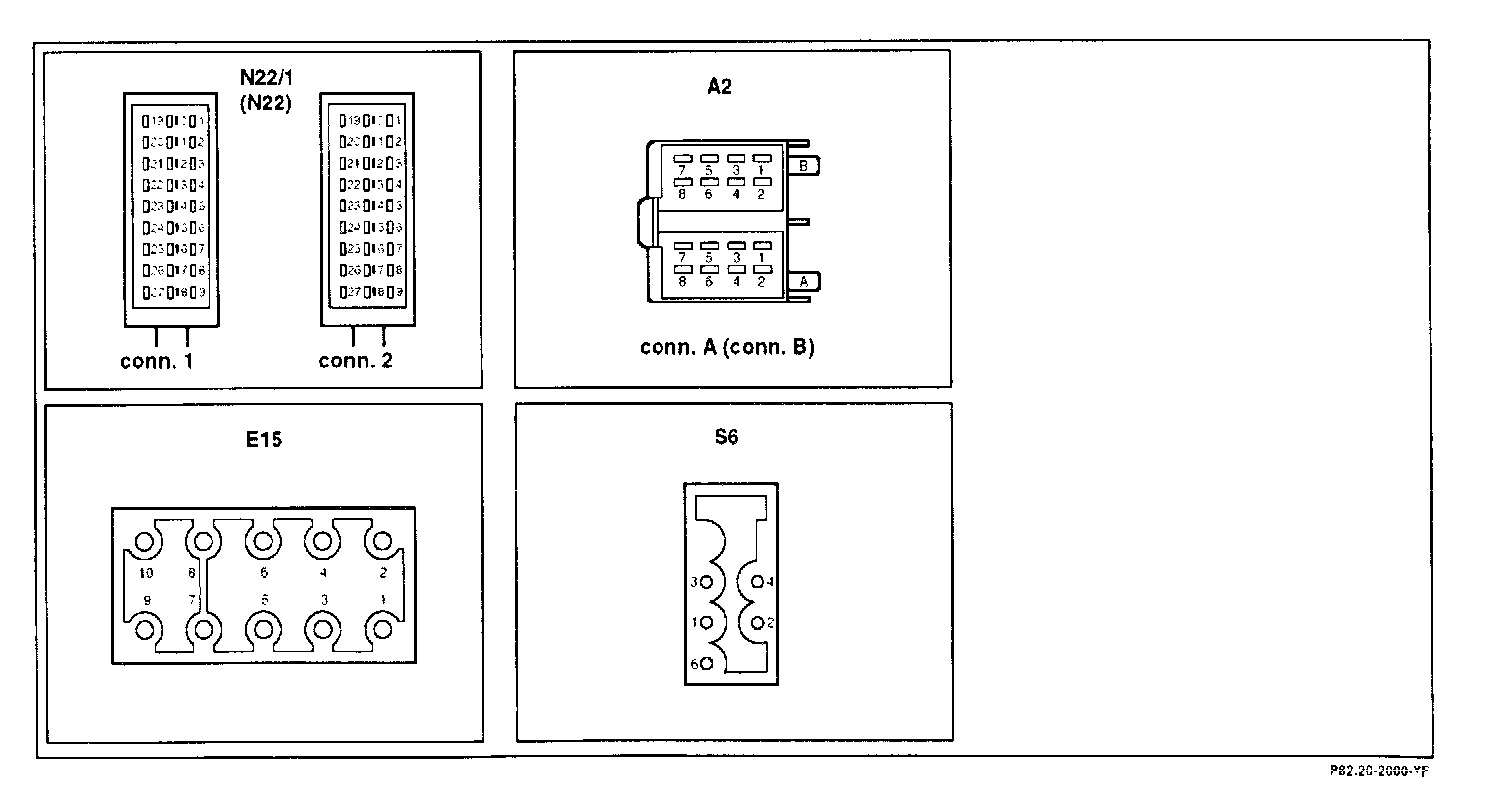

Connector Assignment:
