Inside Rear View Mirror w/Garage Door Opener PE68.49-U-2000YD



Automatic Dimming Inside Rear View Mirror With Garage Door Opener

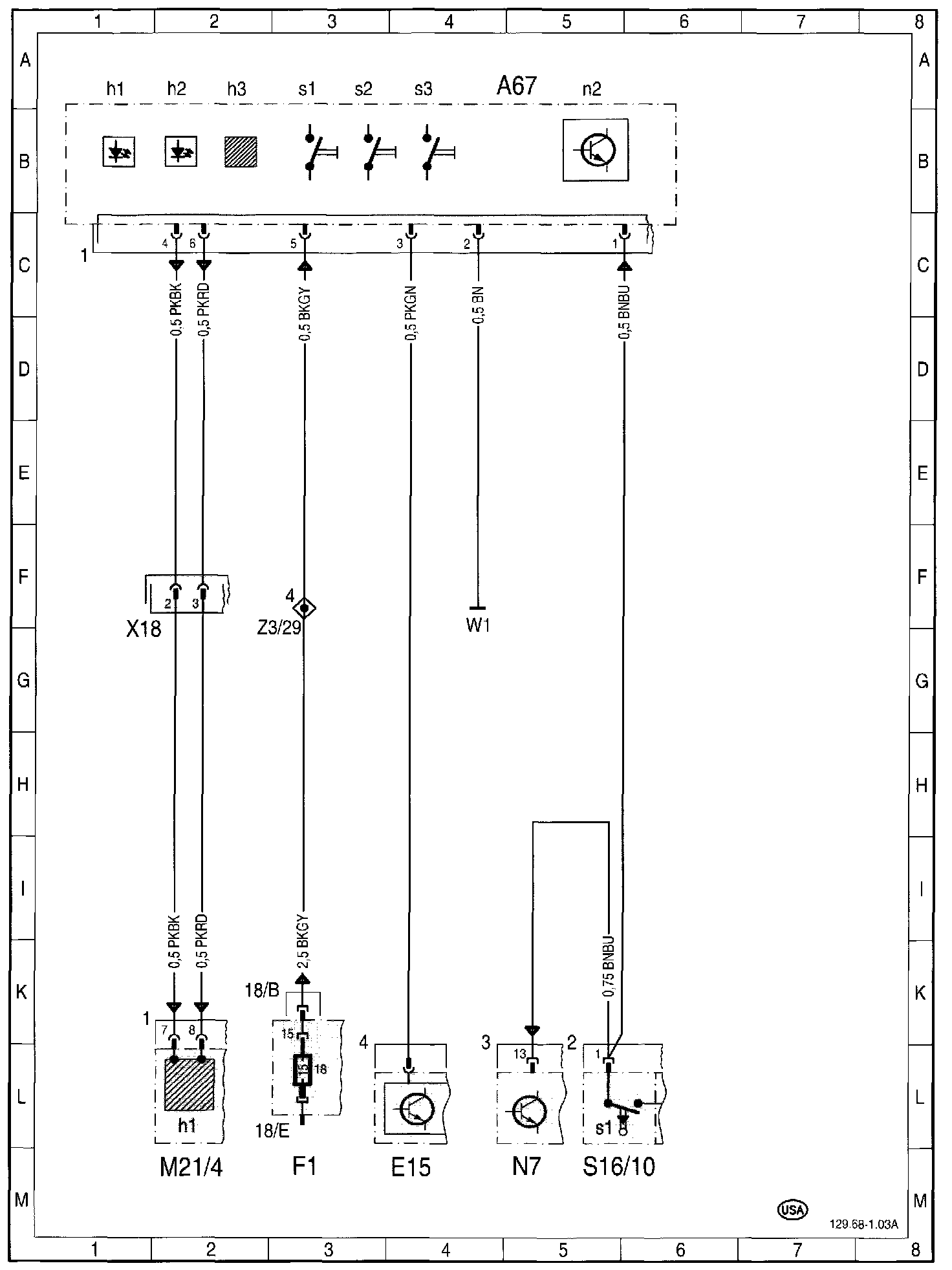

Wiring Diagram

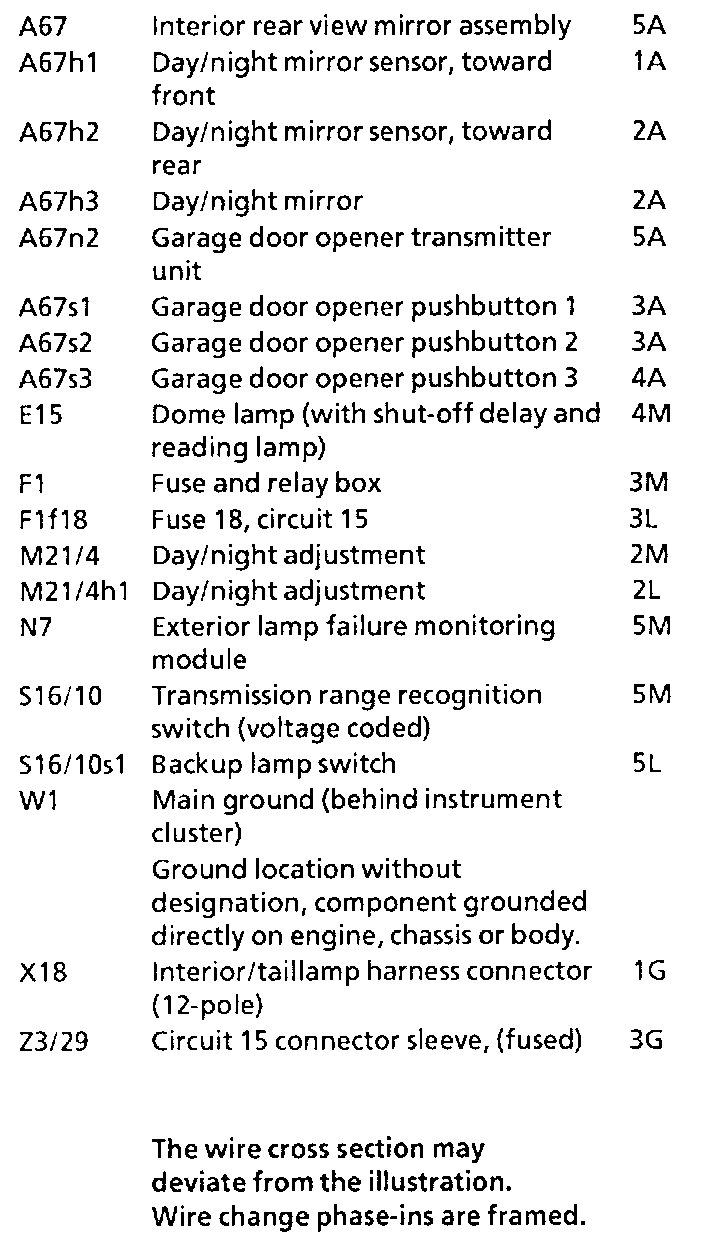

Component Index
