Outside Mirrors PE88.79-U-2000YC
Outside Mirrors PE88.79-U-2000YC

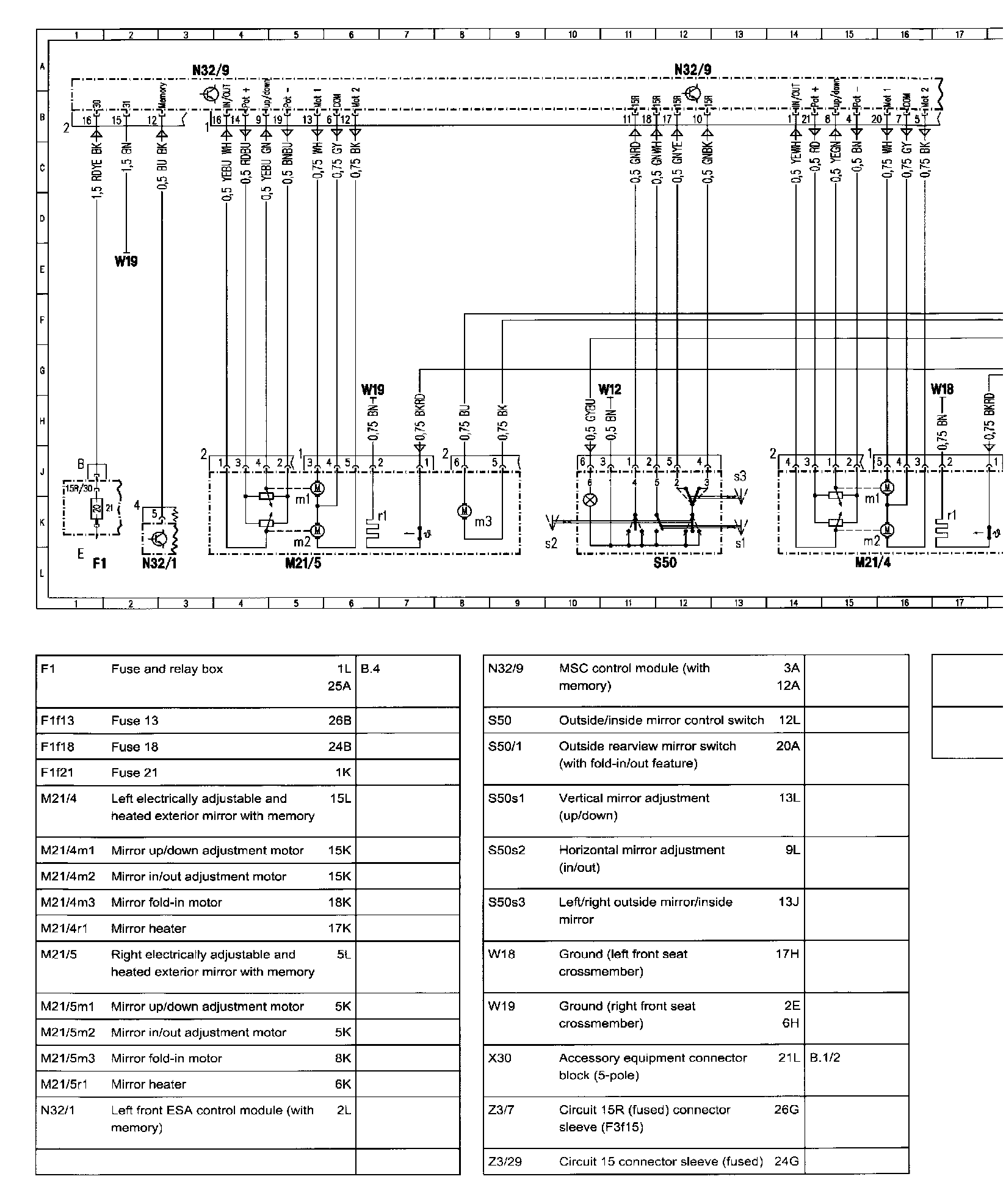

Outside Mirrors
�v�HPE88.79-U-2000YC:

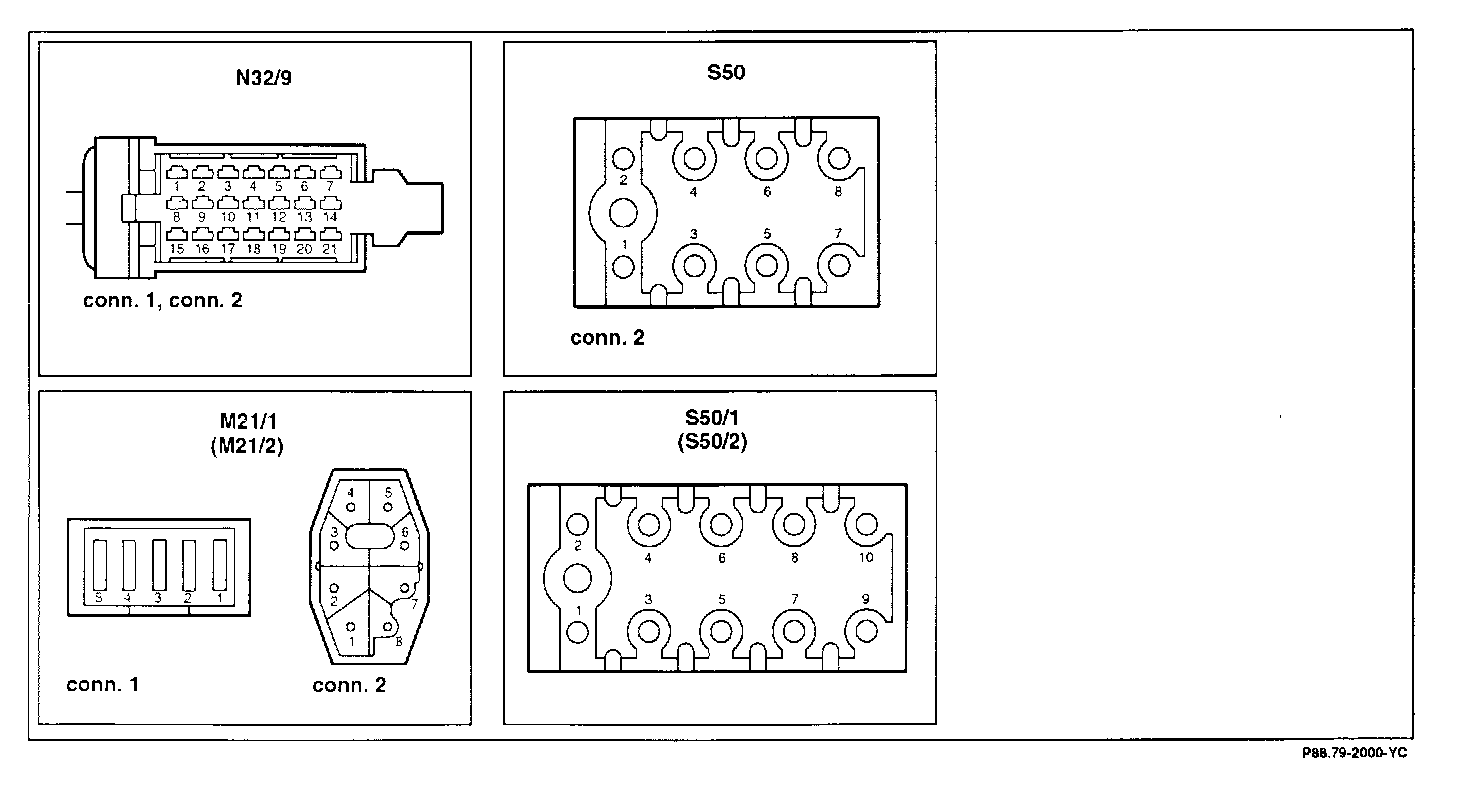

Connector Assignment:

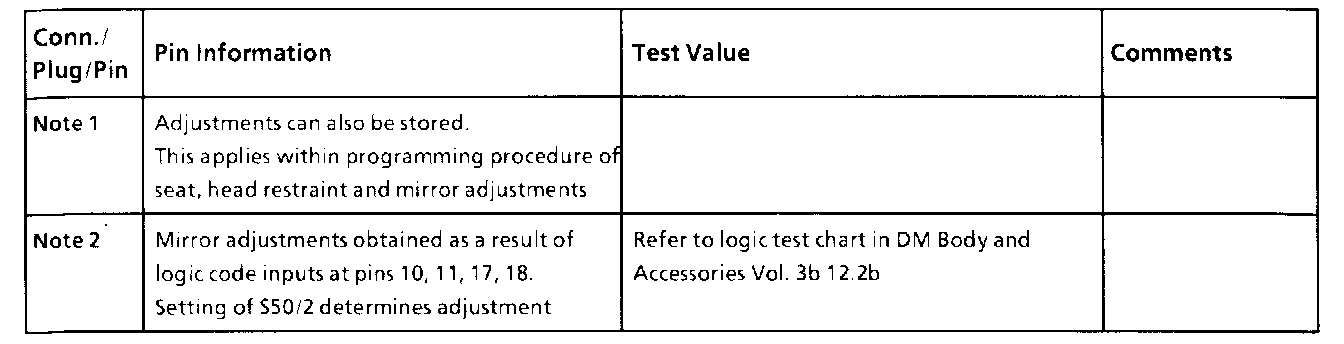

Pin Information, Part 1:
Pin Information, Part 2:
