Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
CD Changer

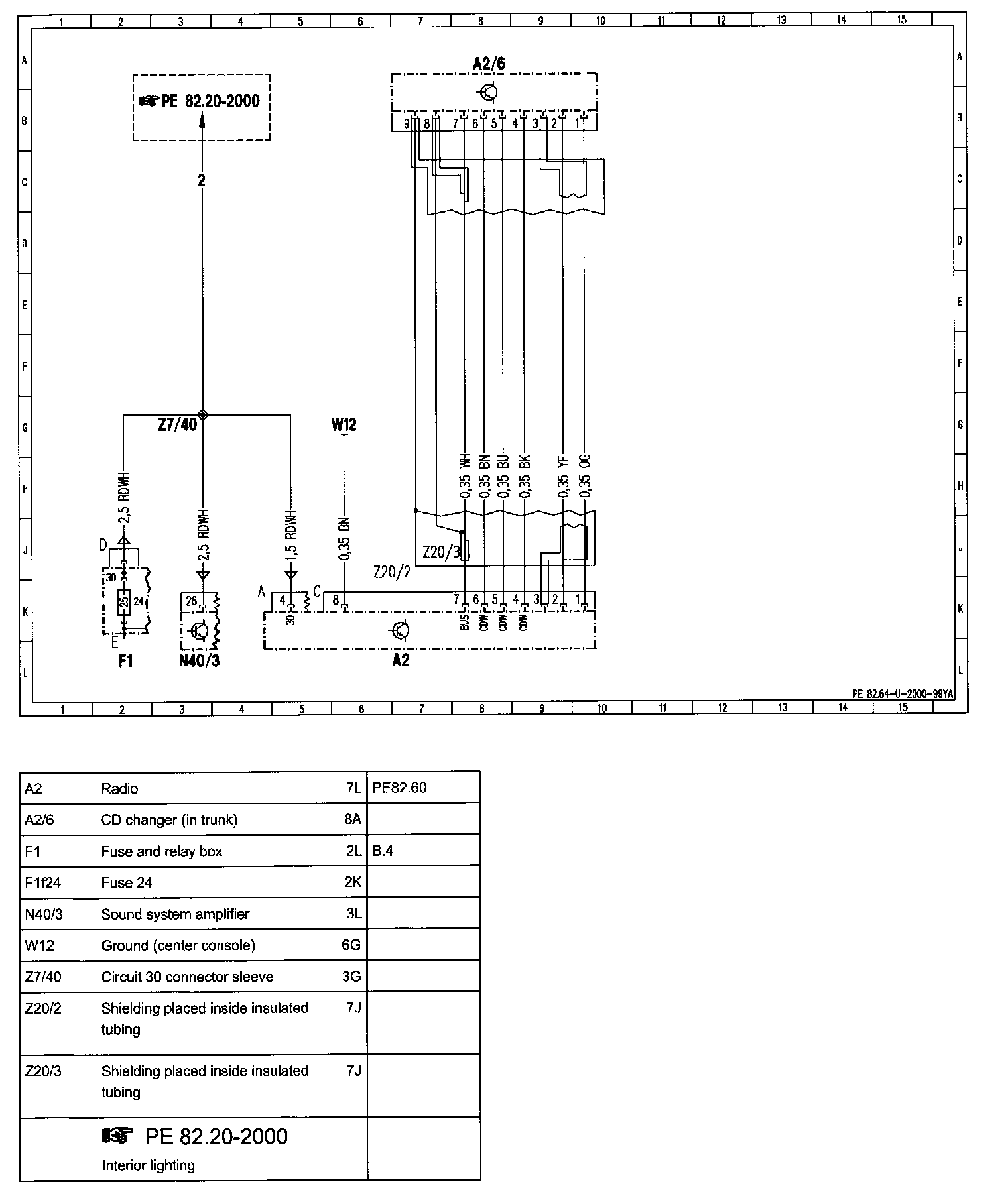

CD Changer
CD Changer
PE82.64-U_2000YA:
Connector Assignment:
Pin Information:
