SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
By Ground Designation
>>

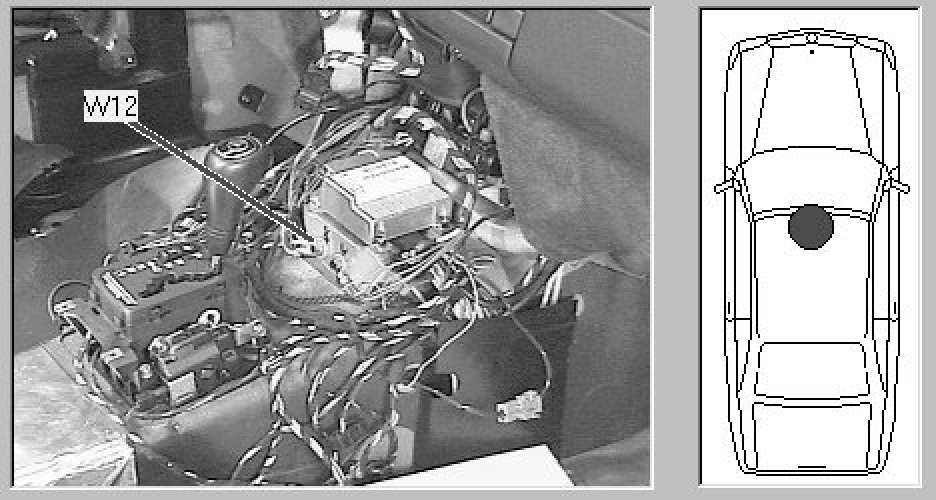

W12 - Ground, Center Console
W12 - Ground, Center Console
Interior, under console, forward of shifter
