Evaporative Emissions System

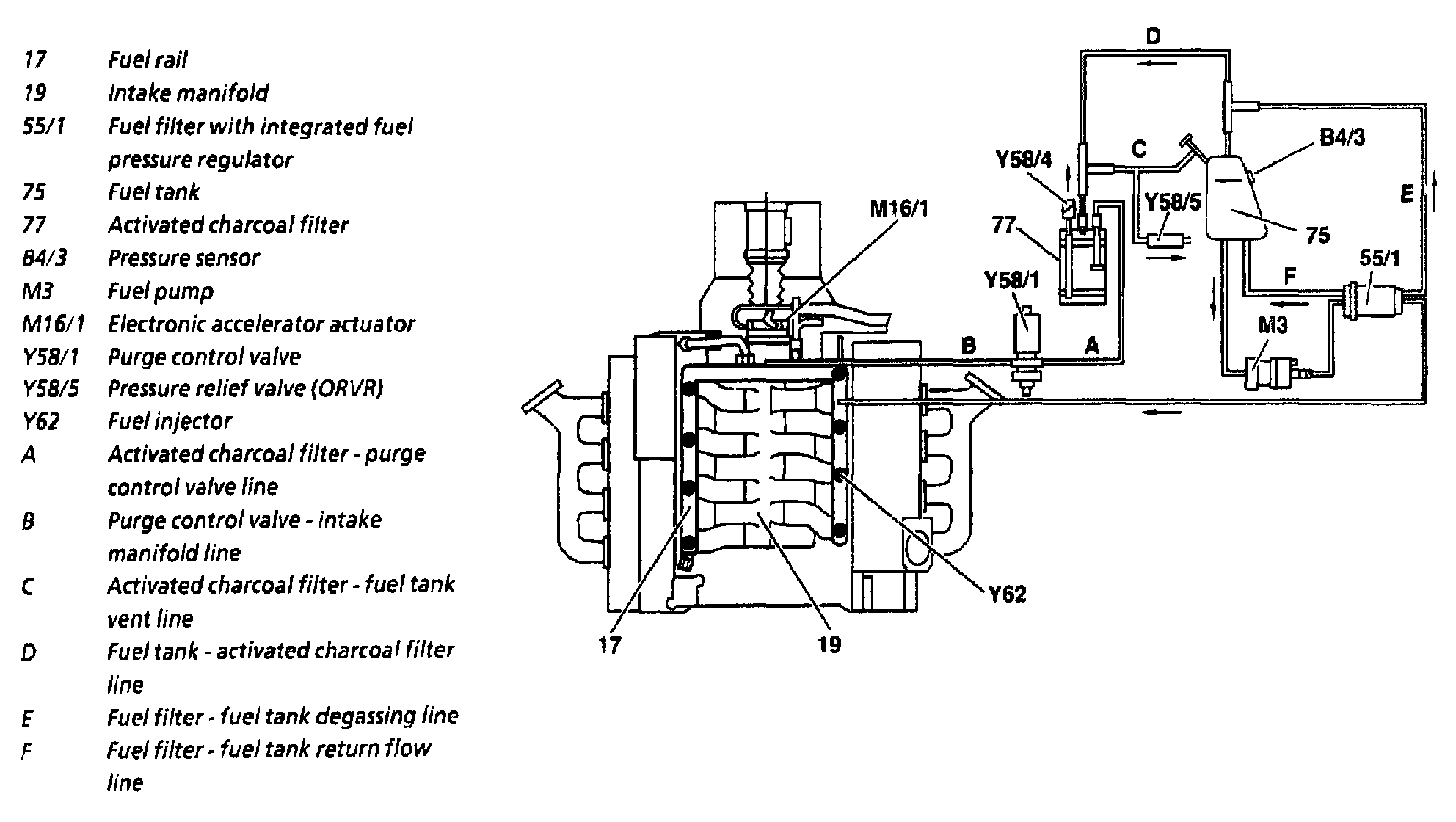

Connection diagram of evaporative emission control system engine 113 version (USA) as of 09/97
